YN65-MD (1983)
Toyota Hilux
Production
Nov 1983
-
Aug 1986
Engine
3YJ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

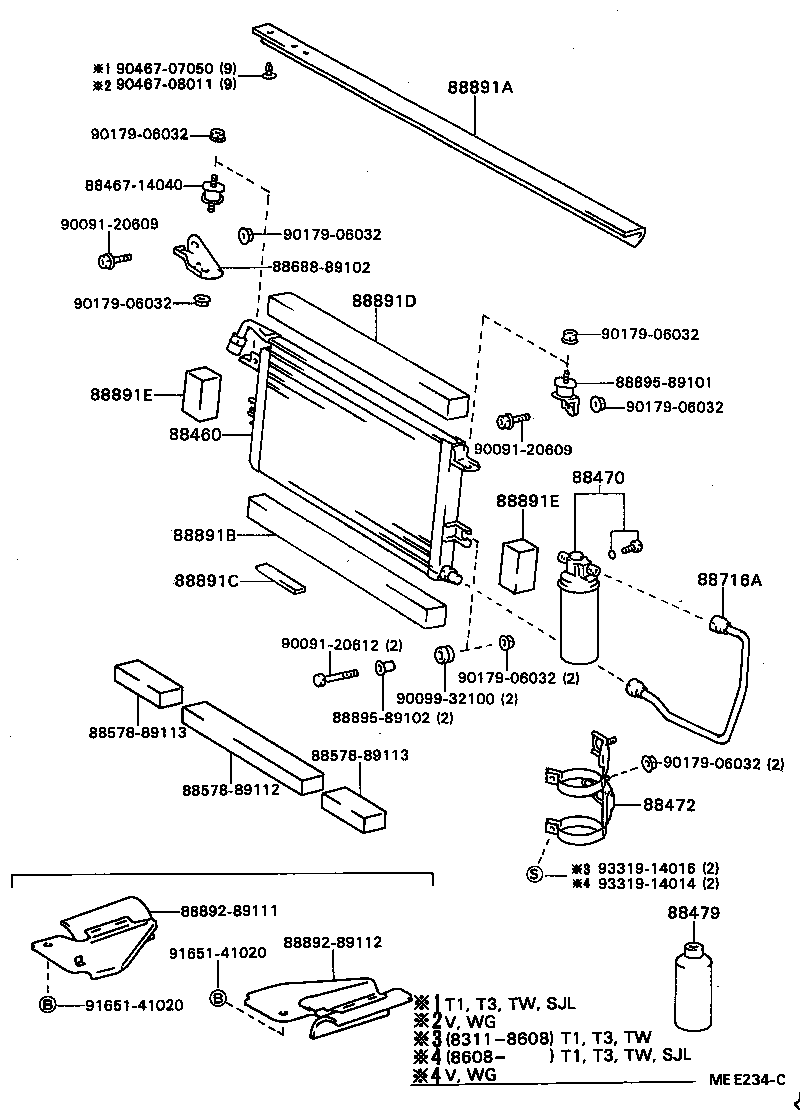

ILLUST NO. 1 OF 2(8311- )YN5#,6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89109 |
LN5#,60,65,YN5#,60,65..SJL,T1,T3,TW |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
LN5#,6#,YN5#,6# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89109 |
LN5#,6#,YN5#,6# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LN5#,6#,YN5#,6# 400G |
2 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-89132 |
LN5#,60,65,YN5#,60,65..SJL,T1,T3,TW |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53381-89103 |
LN5#,6#,YN5#,6# |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89101 |
LN5#,60,65,YN5#,60,65..T1,T3,TW |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89107 |
LN5#,6#,YN5#,6# |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-89101 |
YN5#,6# |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88578-89112 | ||||
| 88578-89113 | ||||
| 88688-89102 | ||||
| 88892-89111 | ||||
| 88892-89112 | ||||
| 88895-89101 | ||||
| 88895-89102 | ||||
| 90091-20609 | ||||
| 90091-20612 | ||||
| 90099-32100 | ||||
| 90179-06032 | ||||
| 90467-07050 | ||||
| 90467-08011 | ||||
| 91651-41020 | ||||
| 93319-14014 | ||||
| 93319-14016 | ||||

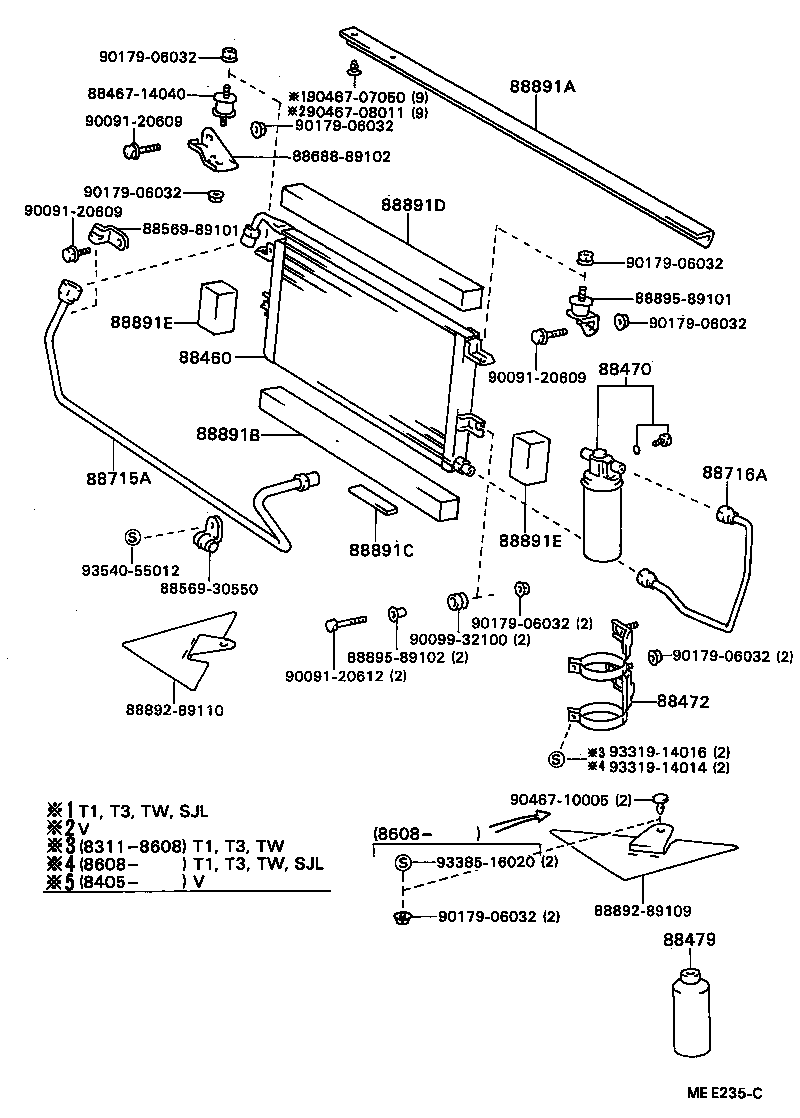

ILLUST NO. 1 OF 2(8311- )LN5#,6#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-89109 |
LN5#,60,65,YN5#,60,65..SJL,T1,T3,TW |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-12050 |
LN5#,6#,YN5#,6# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-89109 |
LN5#,6#,YN5#,6# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
LN5#,6#,YN5#,6# 400G |
2 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-89103 |
LN5#,6# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-89132 |
LN5#,60,65,YN5#,60,65..SJL,T1,T3,TW |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 53381-89103 |
LN5#,6#,YN5#,6# |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-89101 |
LN5#,60,65,YN5#,60,65..T1,T3,TW |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88578-89107 |
LN5#,6#,YN5#,6# |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-89101 |
YN5#,6# |
1 | ||
| Common parts | ||||
| 88467-14040 | ||||
| 88569-30550 | ||||
| 88569-89101 | ||||
| 88688-89102 | ||||
| 88892-89109 | ||||
| 88892-89110 | ||||
| 88895-89101 | ||||
| 88895-89102 | ||||
| 90091-20609 | ||||
| 90091-20612 | ||||
| 90099-32100 | ||||
| 90179-06032 | ||||
| 90467-07050 | ||||
| 90467-08011 | ||||
| 90467-10005 | ||||
| 93319-14014 | ||||
| 93319-14016 | ||||
| 93385-16020 | ||||
| 93540-55012 | ||||

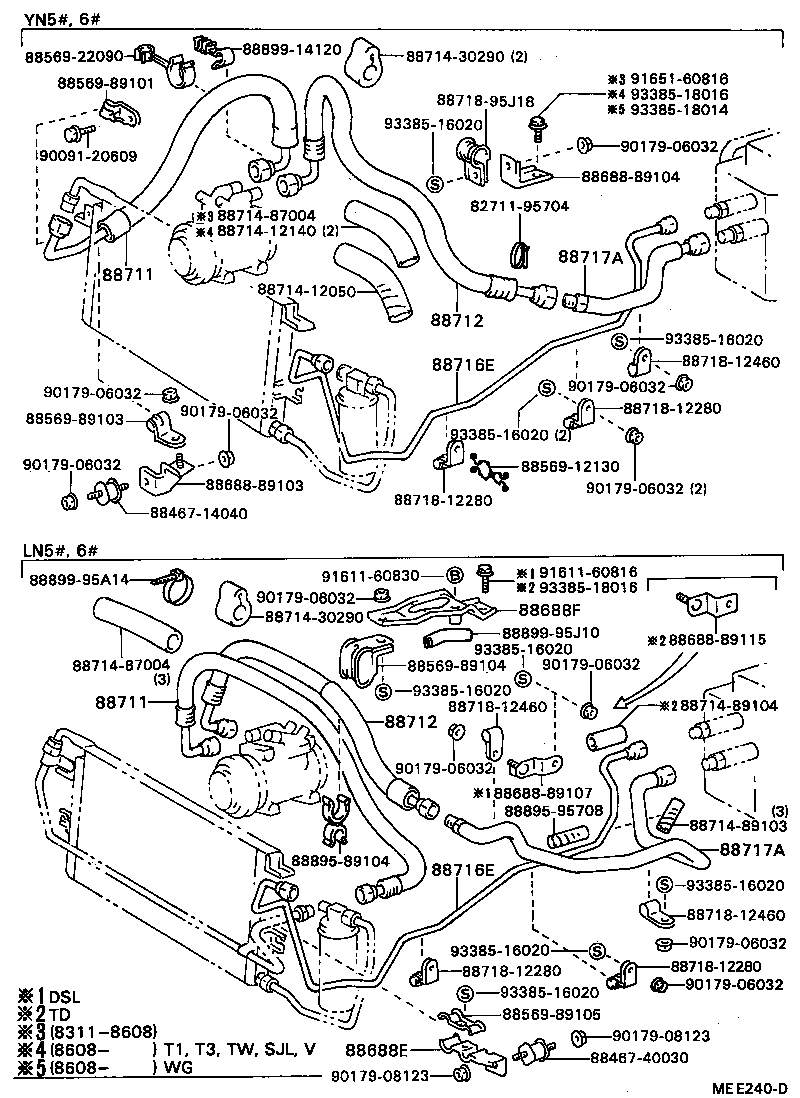

ILLUST NO. 2 OF 2(8311- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-89106 |
LN5#,6# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89116 |
YN5#,6# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-89116 |
YN5#,6# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89119 |
YN5#,6# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-89119 |
YN5#,6# |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89135 |
LN5#,6#,YN5#,6#..CBR,DSL |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-89135 |
LN5#,6#,YN5#,6#..CBR,DSL |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-89108 |
YN5#,6# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-89108 |
YN5#,6# |
1 | ||
| Common parts | ||||
| 82711-95704 | ||||
| 88467-14040 | ||||
| 88467-40030 | ||||
| 88569-12130 | ||||
| 88569-22090 | ||||
| 88569-89101 | ||||
| 88569-89103 | ||||
| 88569-89104 | ||||
| 88569-89105 | ||||
| 88688-89103 | ||||
| 88688-89104 | ||||
| 88688-89107 | ||||
| 88688-89115 | ||||
| 88714-12050 | ||||
| 88714-12140 | ||||
| 88714-30290 | ||||
| 88714-87004 | ||||
| 88714-89103 | ||||
| 88714-89104 | ||||
| 88718-12280 | ||||
| 88718-12460 | ||||
| 88718-95J18 | ||||
| 88895-89104 | ||||
| 88895-95708 | ||||
| 88899-14120 | ||||
| 88899-95A14 | ||||
| 88899-95J10 | ||||
| 90091-20609 | ||||
| 90179-06032 | ||||
| 90179-08123 | ||||
| 91611-60816 | ||||
| 91611-60830 | ||||
| 91651-60816 | ||||
| 93385-16020 | ||||
| 93385-18014 | ||||
| 93385-18016 | ||||
