YN61G-PSE (1986)

Toyota Hilux

Production Aug 1986 - Mar 1989
Engine 3YEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )EFI

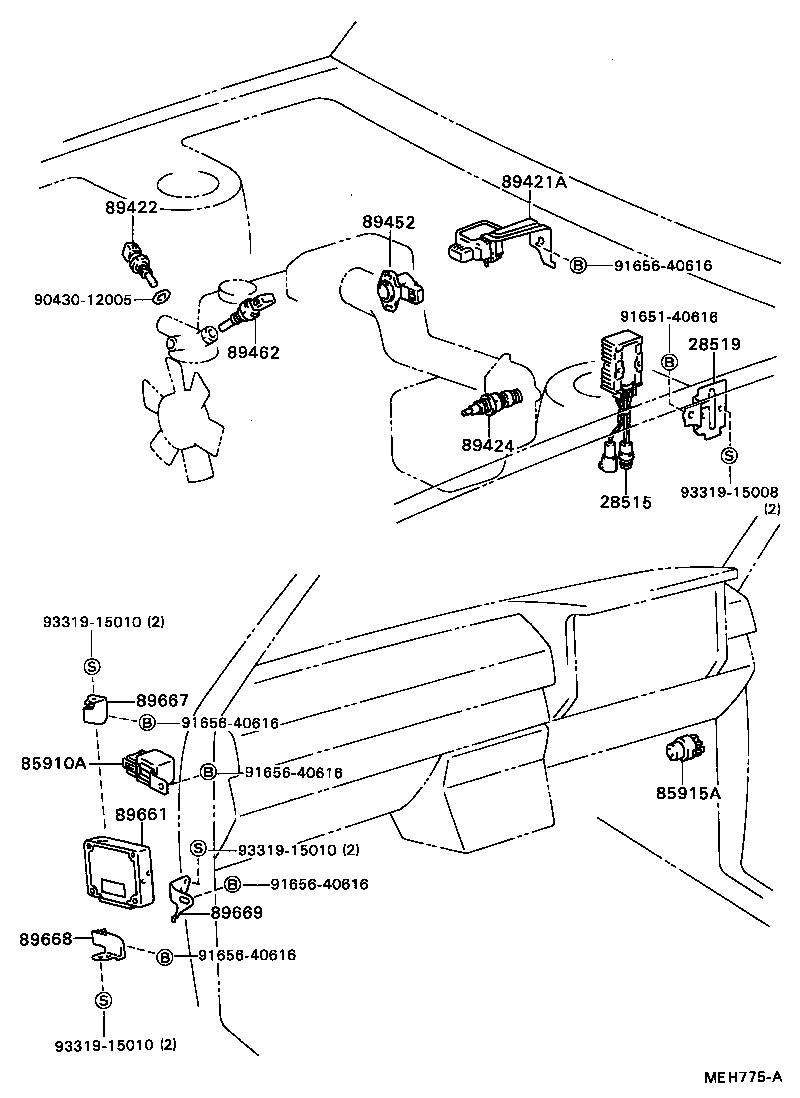

Click highlighted areas on diagram

diagram 28515 28519 85910A 85915A 89421A 89422 89424 89452 89462 89661 89667 89668 89669 9043012005 9165140616 9165640616 9165640616 9165640616 9165640616 9165640616 9331915008 9331915010 9331915010 9331915010
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-26030

3YEU..YN61

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-35030

3YEU..YN61

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-14020

YN61..EFI

 1
85915A - RELAY, MAIN
90987-02004

YN61..EFI

 1
89421A - SENSOR, TURBO PRESSURE
89420-35010

YN61..EFI

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

YN61..EFI

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

YN61..EFI

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-28030

YN61..EFI

 1
89462 - SWITCH, START INJECTOR TIME
89462-30011

YN61..EFI

 1
89661 - COMPUTER, ENGINE CONTROL
89661-35090

YN61..EFI

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-35010

YN61..EFI

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-35010

YN61..EFI

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35010

YN61..EFI

 1
Common parts
90430-12005
91651-40616
91656-40616
93319-15008
93319-15010
