YN61G-PSE (1986)

Toyota Hilux

Production Aug 1986 - Mar 1989
Engine 3YEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )4FC

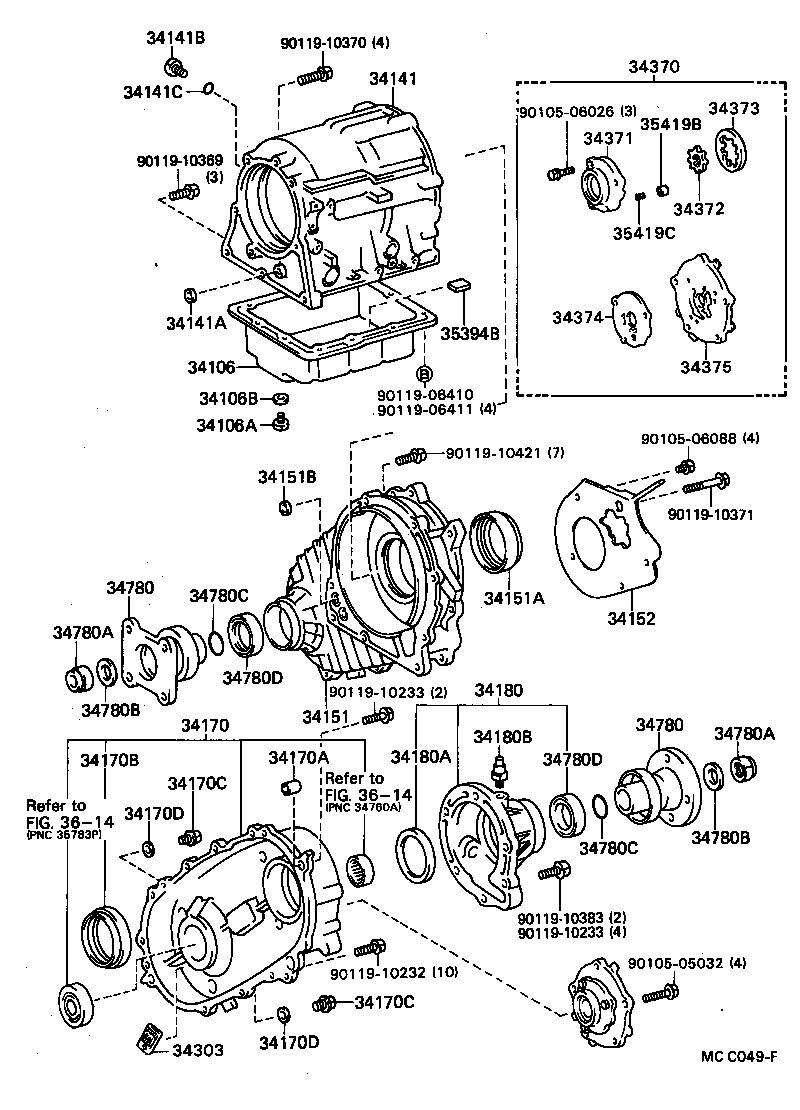

Click highlighted areas on diagram

diagram 34106 34106A 34106B 34141 34141A 34141B 34141C 34151 34151A 34151B 34152 34170 34170A 34170B 34170C 34170C 34170D 34170D 34180 34180A 34180B 34303 34370 34371 34372 34373 34374 34375 34780 34780 34780A 34780A 34780B 34780B 34780C 34780C 34780D 34780D 35394B 35419B 35419C 3614 3614 9010505032 9010506026 9010506088 9011906410 9011906411 9011910232 9011910233 9011910233 9011910369 9011910370 9011910371 9011910383 9011910421
Part # Description Qty Price
34106 - PAN SUB-ASSY, TRANSFER OIL
34106-35010

YN61..4FC

 1
34106A - PLUG (FOR TRANSFER OIL PAN)
90341-10006

YN61..4FC

 1
34106B - GASKET (FOR TRANSFER OIL PAN)
35178-30010

YN61..4FC

 1
34141 - CASE, AUTOMATIC TRANSFER
34141-35010

YN61..4FC

 1
34141A - GASKET (FOR AUTOMATIC TRANSFER CASE)
35148-16010

YN61..4FC

 3
34141B - PLUG (FOR AUTOMATIC TRANSFER CASE)
90341-08001

YN61..4FC

 1
34141C - RING, O (FOR AUTOMATIC TRANSFER CASE)
90301-06196

YN61..4FC

 1
34151 - CASE, TRANSFER CHAIN, FRONT
34151-35020

YN61..4FC

 1
34151A - SEAL, OIL (FOR TRANSFER CHAIN CASE)
90316-58002

YN61..4FC

 1
34151B - GASKET (FOR TRANSFER CHAIN CASE FRONT)
35148-16010

YN61..4FC

 2
34152 - RECEIVER, TRANSFER CHAIN OIL
34152-35010

YN61..4FC

 1
34170 - CASE ASSY, TRANSFER CHAIN, REAR
34170-35020

YN61..4FC

 1
34170A - PIN, STRAIGHT (FOR TRANSFER CHAIN CASE)
90250-13003

YN61..4FC

長さ=18,外径=13

 2
34170B - SEAL, OIL (FOR TRANSFER CHAIN CASE)
90316-58002

YN61..4FC

 1
34170C - PLUG (FOR TRANSFER CHAIN CASE)
90341-18049

YN61..4FC

FILLER

 1
90341-18021

YN61..4FC

DRAIN

 1
34170C - PLUG (FOR TRANSFER CHAIN CASE)
90341-18049

YN61..4FC

FILLER

 1
90341-18021

YN61..4FC

DRAIN

 1
34170D - GASKET (FOR TRANSFER CHAIN CASE)
90430-18008

YN61..4FC

 2
34170D - GASKET (FOR TRANSFER CHAIN CASE)
90430-18008

YN61..4FC

 2
34180 - HOUSING ASSY, TRANSFER EXTENSION
34180-35010

YN61..4FC

 1
34180A - RECEIVER, EXTENSION HOUSING OIL
34182-35010

YN61..4FC

 1
34182-35011

YN61..4FC

 1
34180B - PLUG, BREATHER (FOR TRANSFER EXTENSION HOUSING)
90930-03031

YN61..4FC

 1
34303 - STRAINER SUB-ASSY, TRANSFER OIL
34303-35010

YN61..4FC

 1
34370 - PUMP ASSY, TRANSFER OIL
34370-35010

YN61..4FC

 1
34371 - BODY, AUTOMATIC TRANSFER OIL PUMP
34371-35010

YN61..4FC

 1
34372 - GEAR, TRANSFER OIL PUMP DRIVE
34372-35010

YN61..4FC

 1
34373 - GEAR, TRANSFER OIL PUMP DRIVEN
34373-35010

YN61..4FC

 1
34374 - PLATE, AUTOMATIC TRANSFER OIL PUMP
34374-35010

YN61..4FC

 1
34375 - COVER, AUTOMATIC TRANSFER OIL PUMP
34375-35010

YN61..4FC

 1
34780 - YOKE ASSY, FLANGE
34780-35010

YN61..4FC

FR

 1
34780-35020

YN61..4FC

RR

 1
34780 - YOKE ASSY, FLANGE
34780-35010

YN61..4FC

FR

 1
34780-35020

YN61..4FC

RR

 1
34780A - NUT (FOR FLANGE YOKE)
90179-20001

YN61..4FC

 2
34780A - NUT (FOR FLANGE YOKE)
90179-20001

YN61..4FC

 2
34780B - WASHER, PLATE (FOR FLANGE YOKE)
90201-20005

YN61..4FC

 2
34780B - WASHER, PLATE (FOR FLANGE YOKE)
90201-20005

YN61..4FC

 2
34780C - RING, O (FOR FLANGE YOKE)
90301-26190

YN61..4FC

 2
34780C - RING, O (FOR FLANGE YOKE)
90301-26190

YN61..4FC

 2
34780D - SEAL, OIL (FOR FLANGE YOKE)
90316-40001

YN61..4FC

 2
34780D - SEAL, OIL (FOR FLANGE YOKE)
90316-40001

YN61..4FC

 2
35394B - MAGNET, OIL CLEANER (FOR TRANSFER)
35394-30011

YN61..4FC

 3
35419B - VALVE, CHECK
35419-35010

YN61..4FC

 1
35419C - SPRING, COMPRESSION (FOR CHECK VALVE)
90501-06015

YN61..4FC

 1
Common parts
90105-05032
90105-06026
90105-06088
90119-06410
90119-06411
90119-10232
90119-10233
90119-10369
90119-10370
90119-10371
90119-10383
90119-10421
Linked diagrams
3614
