YN61G-MSE (1986)
Toyota Hilux
(8608- )3YEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19030-73010 |
3YEU..YN61 |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
2YJ,3Y#..YN5#,6# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-71010 |
2YJ,3Y#..YN5#,6# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-16040 |
3YEU..YN61 |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01487 |
2YJ,3Y#..YN5#,6# 厚さ=0.4,T=0.4 |
1 | ||
| 90099-01488 |
2YJ,3Y#..YN5#,6# 厚さ=0.6,T=0.6 |
1 | ||
| 90099-01486 |
2YJ,3Y#..YN5#,6# 厚さ=0.3,T=0.3 |
1 | ||
| 90099-01489 |
2YJ,3Y#..YN5#,6# 厚さ=0.5,T=0.5 |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01487 |
2YJ,3Y#..YN5#,6# 厚さ=0.4,T=0.4 |
1 | ||
| 90099-01488 |
2YJ,3Y#..YN5#,6# 厚さ=0.6,T=0.6 |
1 | ||
| 90099-01486 |
2YJ,3Y#..YN5#,6# 厚さ=0.3,T=0.3 |
1 | ||
| 90099-01489 |
2YJ,3Y#..YN5#,6# 厚さ=0.5,T=0.5 |
1 | ||
| 19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01429 |
2YJ,3Y#..YN5#,6# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
2YJ,3Y#..YN5#,6# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
2YJ,3Y#..YN5#,6# |
2 | ||
| 19115-71010 |
2YJ,3Y#..YN5#,6# |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
2YJ,3Y#..YN5#,6# |
2 | ||
| 19115-71010 |
2YJ,3Y#..YN5#,6# |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63090 |
3YEU..YN61 NO.1 |
1 | ||
| 19121-63040 |
2YJ,3Y#..YN5#,6# NO.2 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63090 |
3YEU..YN61 NO.1 |
1 | ||
| 19121-63040 |
2YJ,3Y#..YN5#,6# NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
2YJ,3Y#..YN5#,6# NO.1 |
1 | ||
| 19127-63020 |
2YJ,3Y#..YN5#,6# NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
2YJ,3Y#..YN5#,6# NO.1 |
1 | ||
| 19127-63020 |
2YJ,3Y#..YN5#,6# NO.2 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-73011 |
3YEU..YN61 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-71010 |
2YJ,3Y#..YN5#,6# |
1 | ||
| 19201 - IGNITER | ||||
| 89620-20250 |
3YEU..YN61 |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-73010 |
3YEU..YN61 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-73010 |
3YEU..YN61 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02135 |
3YEU..YN61 |
1 | ||
| Common parts | ||||
| 90099-00871 | ||||
| 90099-00875 | ||||
| 90099-00942 | ||||
| 90099-00957 | ||||
| 90099-04977 | ||||
| 90099-05179 | ||||
| 90119-08001 | ||||
| 93319-14006 | ||||

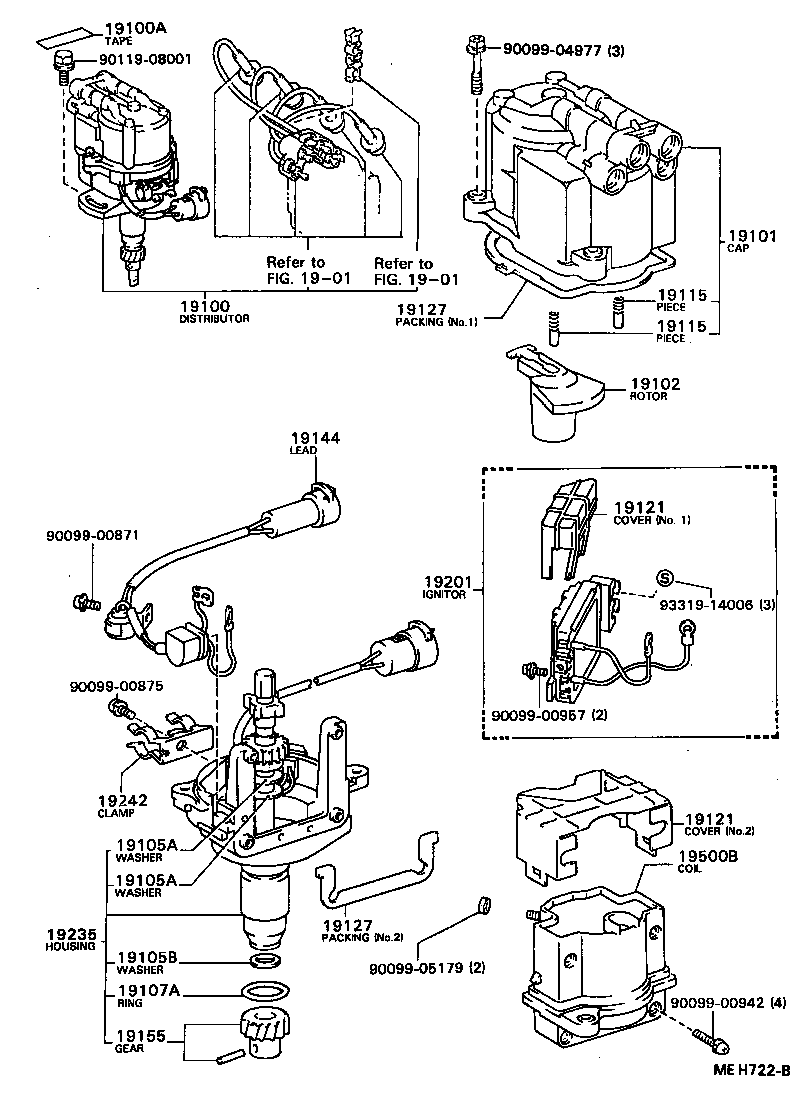

| Linked diagrams | ||||
| 1901 | ||||
