YN60-MS (1983)

Toyota Hilux

Production Nov 1983 - Aug 1988
Engine 3YJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )

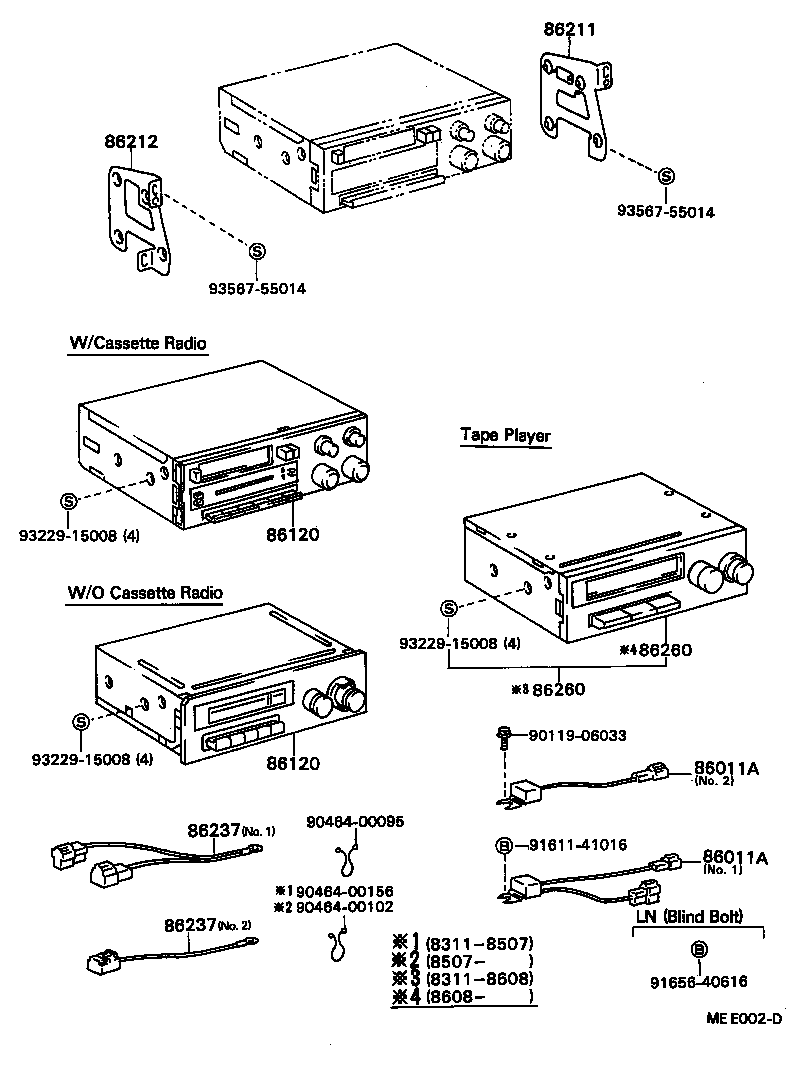

Click highlighted areas on diagram

diagram 86011A 86011A 86120 86120 86211 86212 86237 86237 86260 86260 9011906033 9046400095 9046400102 9046400156 9161141016 9165640616 9322915008 9322915008 9322915008 9356755014 9356755014
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04040

YN5#,6#..CBR

NO.2

 2
90980-04040

LN5#,6#

NO.2

 2
90980-04036

YN5#,6#

NO.1

 1
86011A - CONDENSER, RADIO SETTING
90980-04040

YN5#,6#..CBR

NO.2

 2
90980-04040

LN5#,6#

NO.2

 2
90980-04036

YN5#,6#

NO.1

 1
86120 - RECEIVER ASSY, RADIO
86120-89124

LN5#,6#,YN56,6#

AM

 1
86120-89125

LN5#,6#,YN56,6#

AM/FM MULTIPLEX

 1
86120-89121

LN5#,6#,YN56,60..SDX,SR

AM/FM MULTIPLEX,W/CASSETTE

 1
86120-17010

LN5#,6#,YN5#,6#

AM

 1
86120-17020

LN5#,6#,YN5#,6#

AM/FM MULTIPLEX

 1
86120-17030

LN55,56,6#,YN56,60,61..SDX,SR,SSR

AM/FM MULTIPLEX,W/CASSETTE

 1
86120 - RECEIVER ASSY, RADIO
86120-89124

LN5#,6#,YN56,6#

AM

 1
86120-89125

LN5#,6#,YN56,6#

AM/FM MULTIPLEX

 1
86120-89121

LN5#,6#,YN56,60..SDX,SR

AM/FM MULTIPLEX,W/CASSETTE

 1
86120-17010

LN5#,6#,YN5#,6#

AM

 1
86120-17020

LN5#,6#,YN5#,6#

AM/FM MULTIPLEX

 1
86120-17030

LN55,56,6#,YN56,60,61..SDX,SR,SSR

AM/FM MULTIPLEX,W/CASSETTE

 1
86211 - BRACKET, RADIO, NO.1
86211-89109

LN5#,6#,YN5#,6#

 1
86212 - BRACKET, RADIO, NO.2
86212-89104

LN5#,6#,YN5#,6#

 1
86237 - WIRE, CONDENSER
86237-89107

YN5#,6#

NO.1

 1
86237-89106

YN5#,6#

NO.2

 1
86237 - WIRE, CONDENSER
86237-89107

YN5#,6#

NO.1

 1
86237-89106

YN5#,6#

NO.2

 1
86260 - TAPE PLAYER ASSY
86260-19055

LN5#,6#,YN5#,6#

 1
86260 - TAPE PLAYER ASSY
86260-19055

LN5#,6#,YN5#,6#

 1
Common parts
90119-06033
90464-00095
90464-00102
90464-00156
91611-41016
91656-40616
93229-15008
93567-55014
