YN60-MS (1983)
Toyota Hilux
ILLUST NO. 3 OF 3(8311- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12180 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-14660 | ||||
| 82711-22640 | ||||
| 82711-24010 | ||||
| 82711-32030 | ||||
| 82711-89104 | ||||
| 82711-89108 | ||||
| 82711-89114 | ||||
| 90461-08200 | ||||
| 90461-08202 | ||||
| 90461-08413 | ||||
| 90461-08483 | ||||
| 90462-10081 | ||||
| 90463-10010 | ||||
| 90463-10337 | ||||
| 90463-10338 | ||||
| 90463-15002 | ||||
| 90463-15003 | ||||
| 90463-15439 | ||||
| 90464-00102 | ||||
| 90464-00108 | ||||
| 90464-00156 | ||||
| 90464-00165 | ||||
ILLUST NO. 3 OF 3(8311- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-1A210 | ||||
| 82711-22710 | ||||
| 82711-30640 | ||||
| 82711-87006 | ||||
| 82711-89110 | ||||
| 82711-89111 | ||||
| 82711-89120 | ||||
| 90461-06006 | ||||
| 90461-06035 | ||||
| 90461-06086 | ||||
| 90461-06152 | ||||
| 90461-06303 | ||||
| 90461-08312 | ||||
| 90464-00095 | ||||
| 90464-00166 | ||||
| 90464-00190 | ||||
| 90464-00259 | ||||
| 90464-00271 | ||||
| 90464-00277 | ||||
| 90464-00308 | ||||
| 90464-00345 | ||||
| 90929-01099 | ||||
| 90959-01119 | ||||
| 90959-01142 | ||||

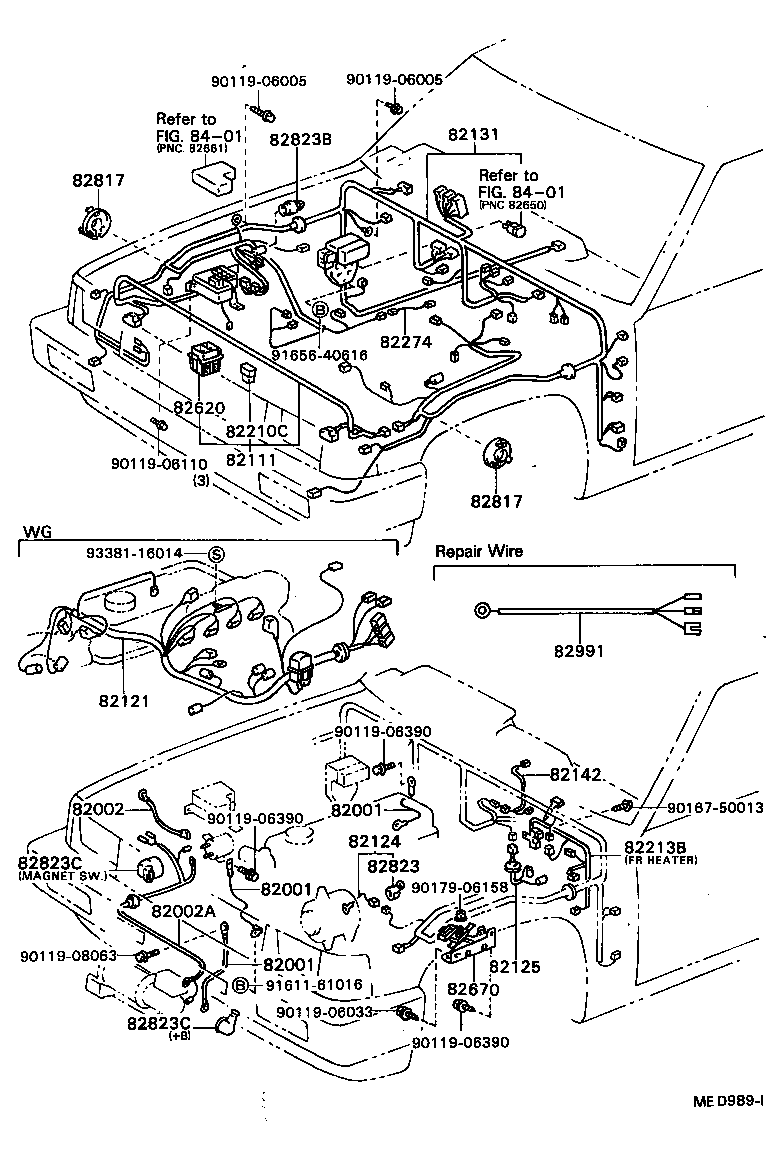

ILLUST NO. 1 OF 3(8311- )YN5#,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07225 |
YN5#,6# ENGINE-DASH |
1 | ||
| 90980-07224 |
YN5#,6# ENGINE-APRON,RH |
1 | ||
| 90980-07229 |
LN60,61,YN60,61 W/WINCH,WINCH-RADIATOR SUPPORT |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07225 |
YN5#,6# ENGINE-DASH |
1 | ||
| 90980-07224 |
YN5#,6# ENGINE-APRON,RH |
1 | ||
| 90980-07229 |
LN60,61,YN60,61 W/WINCH,WINCH-RADIATOR SUPPORT |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07225 |
YN5#,6# ENGINE-DASH |
1 | ||
| 90980-07224 |
YN5#,6# ENGINE-APRON,RH |
1 | ||
| 90980-07229 |
LN60,61,YN60,61 W/WINCH,WINCH-RADIATOR SUPPORT |
1 | ||
| 82002 - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 38655-89101 |
YN60,61 |
1 | ||
| 82002A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 38656-89102 |
YN60,61 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-89108 |
LN5#,6#..T1,T3,TW |
1 | ||
| 82111-89119 |
LN5#,6# |
1 | ||
| 82111-89117 |
LN5#,6# W/FUEL HEATER |
1 | ||
| 82111-89108 |
LN5#,6# |
1 | ||
| 82111-89127 |
YN5#,6#..CBR |
1 | ||
| 82111-89104 |
YN5#,6# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-89103 |
YN5#,6#..CBR |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-89104 |
YN5#,60,65..T1,T3,TW |
1 | ||
| 82125-89117 |
LN60,65,YN60,65 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-89242 |
YN56,6#..T1,T3,TW W/CLOCK OR AM/FM MULTIPLEX |
1 | ||
| 82131-89266 |
LN50,55,6#..T1,T3,TW |
1 | ||
| 82131-89422 |
LN5#,60,65..MTM |
1 | ||
| 82131-89242 |
YN5#,60,65..T1,T3,TW |
1 | ||
| 82131-89523 |
YN60,65 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-89101 |
LN6#,YN60,61..SR,SSR W/CLINOMETER |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
LN5#,6# 80A,ｵｽ端子,黒,80A |
1 | ||
| 90982-08190 |
YN5#,6#..CBR 60A,ﾒｽ端子,黄,60A |
1 | ||
| 90982-08202 |
LN5#,6# 60A,ｵｽ端子,黄,60A |
1 | ||
| 90982-08188 |
LN5#,6#,YN5#,6# 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-89101 |
LN5#,6#,YN5#,6# W/FR HEATER ONLY |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30020 |
LN5#,6# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16020 |
LN5#,6#,YN5#,6# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16020 |
LN5#,6#,YN5#,6# |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22020 |
YN5#,6#..CBR ALTERNATOR |
1 | ||
| 82823-22020 |
LN5#,6# ALTERNATOR |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-89102 |
LN5#,6# |
1 | ||
| 82991-89101 |
YN5#,6#..CBR |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06033 | ||||
| 90119-06110 | ||||
| 90119-06390 | ||||
| 90119-08063 | ||||
| 90167-50013 | ||||
| 90179-06158 | ||||
| 91611-61016 | ||||
| 91656-40616 | ||||
| 93381-16014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

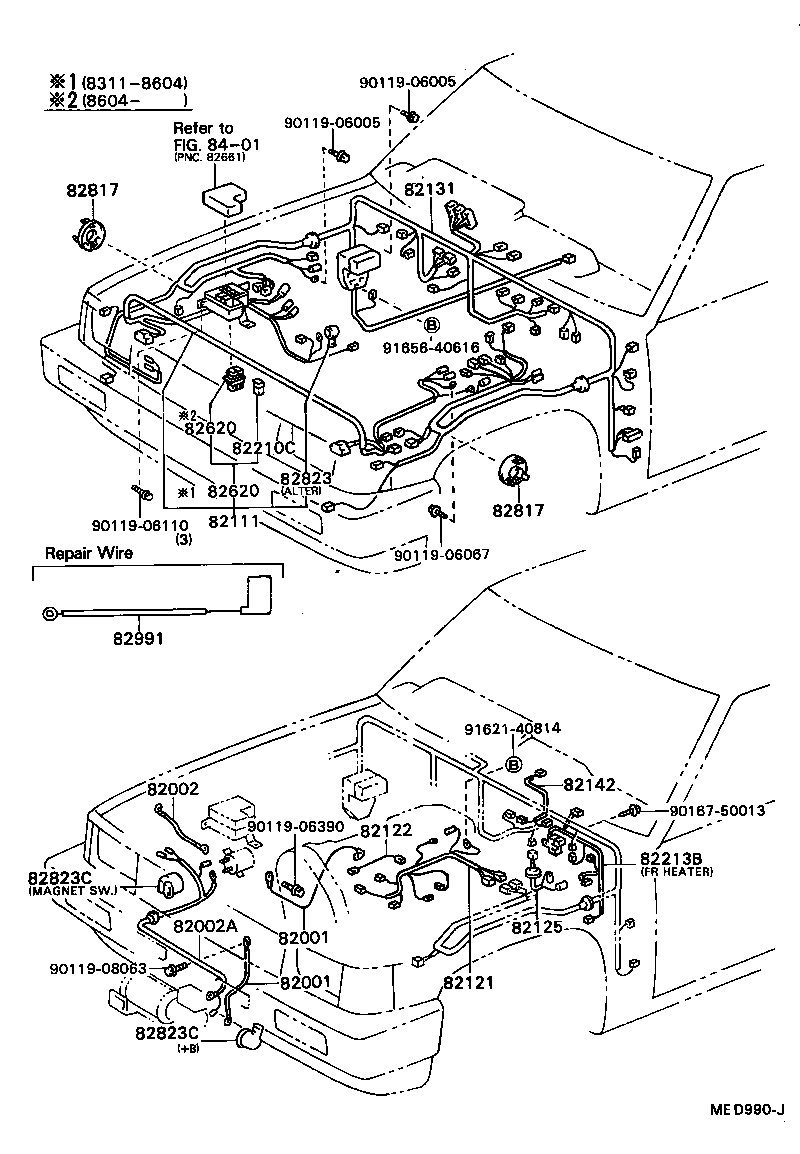

ILLUST NO. 1 OF 3(8311- )LN5#,6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07225 |
YN5#,6# ENGINE-DASH |
1 | ||
| 90980-07224 |
YN5#,6# ENGINE-APRON,RH |
1 | ||
| 90980-07229 |
LN60,61,YN60,61 W/WINCH,WINCH-RADIATOR SUPPORT |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07225 |
YN5#,6# ENGINE-DASH |
1 | ||
| 90980-07224 |
YN5#,6# ENGINE-APRON,RH |
1 | ||
| 90980-07229 |
LN60,61,YN60,61 W/WINCH,WINCH-RADIATOR SUPPORT |
1 | ||
| 82002 - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 38655-89101 |
YN60,61 |
1 | ||
| 82002A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 38656-89102 |
YN60,61 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-89108 |
LN5#,6#..T1,T3,TW |
1 | ||
| 82111-89119 |
LN5#,6# |
1 | ||
| 82111-89117 |
LN5#,6# W/FUEL HEATER |
1 | ||
| 82111-89108 |
LN5#,6# |
1 | ||
| 82111-89127 |
YN5#,6#..CBR |
1 | ||
| 82111-89104 |
YN5#,6# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-89104 |
YN5#,60,65..T1,T3,TW |
1 | ||
| 82125-89117 |
LN60,65,YN60,65 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-89242 |
YN56,6#..T1,T3,TW W/CLOCK OR AM/FM MULTIPLEX |
1 | ||
| 82131-89266 |
LN50,55,6#..T1,T3,TW |
1 | ||
| 82131-89422 |
LN5#,60,65..MTM |
1 | ||
| 82131-89242 |
YN5#,60,65..T1,T3,TW |
1 | ||
| 82131-89523 |
YN60,65 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-89101 |
LN6#,YN60,61..SR,SSR W/CLINOMETER |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08203 |
LN5#,6# 80A,ｵｽ端子,黒,80A |
1 | ||
| 90982-08190 |
YN5#,6#..CBR 60A,ﾒｽ端子,黄,60A |
1 | ||
| 90982-08202 |
LN5#,6# 60A,ｵｽ端子,黄,60A |
1 | ||
| 90982-08188 |
LN5#,6#,YN5#,6# 30A,ﾒｽ端子,ﾋﾟﾝｸ,30A |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-89101 |
LN5#,6#,YN5#,6# W/FR HEATER ONLY |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30020 |
LN5#,6# |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30020 |
LN5#,6# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16020 |
LN5#,6#,YN5#,6# |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-16020 |
LN5#,6#,YN5#,6# |
2 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22020 |
YN5#,6#..CBR ALTERNATOR |
1 | ||
| 82823-22020 |
LN5#,6# ALTERNATOR |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-89102 |
LN5#,6# |
1 | ||
| 82991-89101 |
YN5#,6#..CBR |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90119-06110 | ||||
| 90119-06390 | ||||
| 90119-08063 | ||||
| 90167-50013 | ||||
| 91621-40814 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

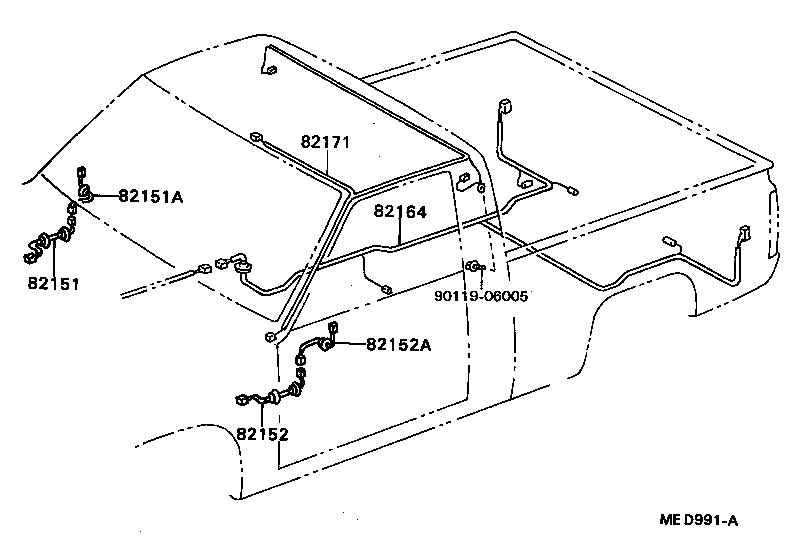

ILLUST NO. 2 OF 3(8311- )SJL,T1,T3,TW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-89146 |
LN51,60,YN51,60 |
1 | ||
| 82164-89119 |
LN50,51,60,YN51,60..T1 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-89105 |
LN5#,60,65,YN5#,60,65..SJL,T1,T3 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||

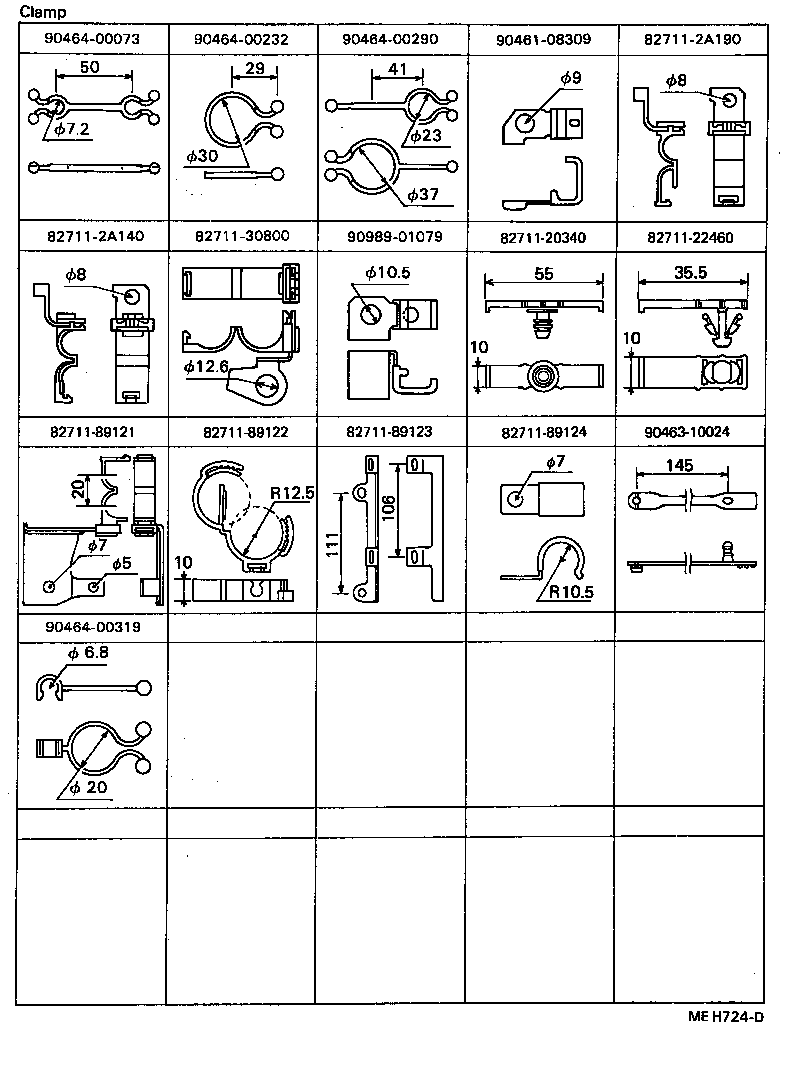

ILLUST NO. 3 OF 3(8311- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-20340 | ||||
| 82711-22460 | ||||
| 82711-2A140 | ||||
| 82711-2A190 | ||||
| 82711-30800 | ||||
| 82711-89121 | ||||
| 82711-89122 | ||||
| 82711-89123 | ||||
| 82711-89124 | ||||
| 90461-08309 | ||||
| 90463-10024 | ||||
| 90464-00073 | ||||
| 90464-00232 | ||||
| 90464-00290 | ||||
| 90464-00319 | ||||
| 90989-01079 | ||||
