YN60-MS (1983)

Toyota Hilux

Production Nov 1983 - Aug 1988
Engine 3YJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )YN6#

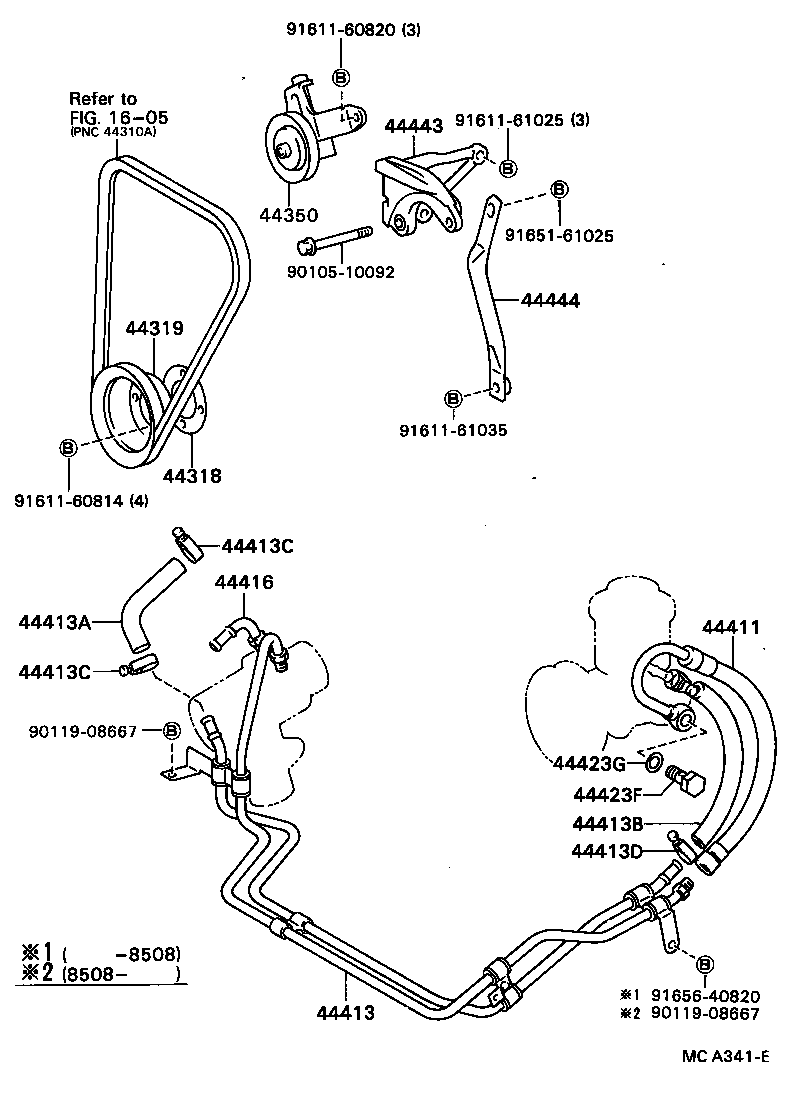

Click highlighted areas on diagram

diagram 1605 44318 44319 44350 44411 44413 44413A 44413B 44413C 44413C 44413D 44416 44423F 44423G 44443 44444 9010510092 9011908667 9011908667 9161160814 9161160820 9161161025 9161161035 9165161025 9165640820
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-28012

YN6#

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-28013

YN6#

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-28011

YN6#

 1
44411 - HOSE, PRESSURE FEED
44411-35070

YN6#

 1
44413 - TUBE, PRESSURE FEED, NO.1
44410-35030

YN60,65

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18079

YN65;LN60,65,YN60..SR

 1
90445-18079

LN60,65,YN60,65

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90447-18025

YN6#

 1
90445-18096

YN6#

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

YN65;LN6#,YN60,61..SR,SSR

 2
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

YN65;LN6#,YN60,61..SR,SSR

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

YN65;LN6#,YN60,61..SR,SSR

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35040

YN65;LN60,65,YN60..SR

 1
44416-35040

LN60,65,YN60,65

 1
44423F - BOLT, UNION
90401-16005

YN6#

 1
44423G - GASKET, UNION BOLT
90430-16242

YN6#

 2
44443 - BRACKET, PUMP
44443-28021

YN6#

 1
44444 - STAY, PUMP, REAR
44444-27010

YN6#

 1
Common parts
90105-10092
90119-08667
91611-60814
91611-60820
91611-61025
91611-61035
91651-61025
91656-40820
Linked diagrams
1605
