YN60-MS (1983)

Toyota Hilux

Production Nov 1983 - Aug 1988
Engine 3YJ
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )2YJ,3Y#

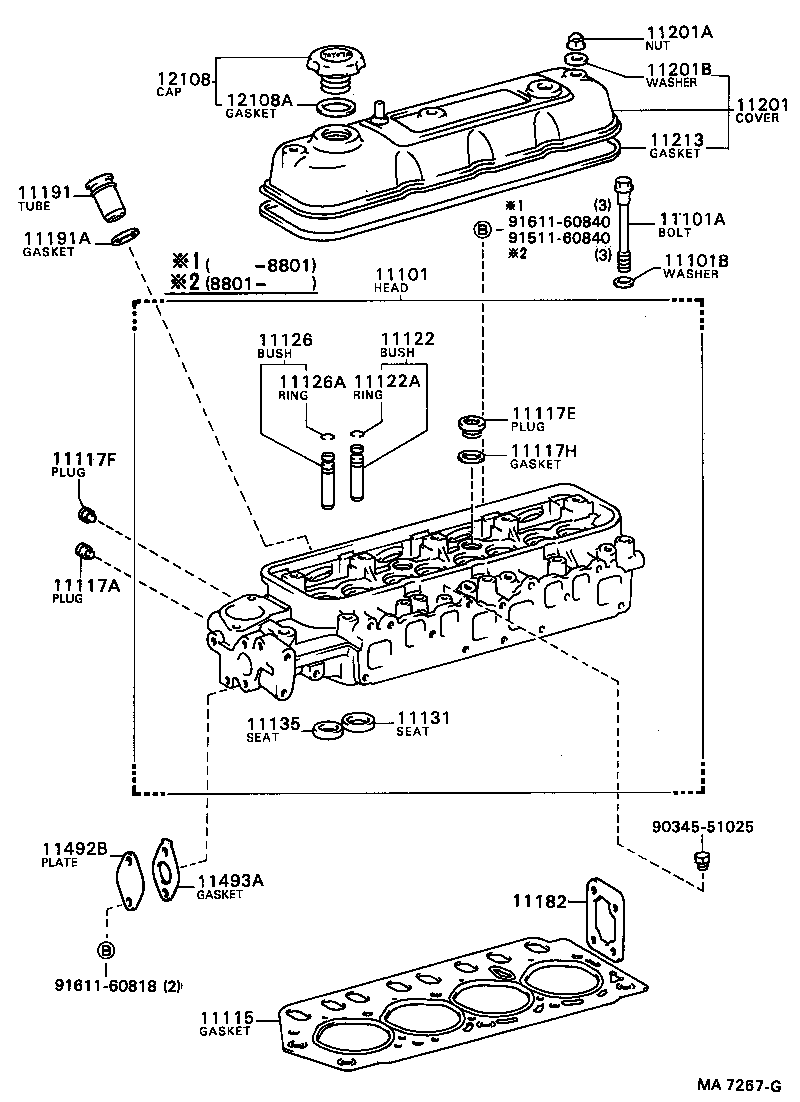

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11117A 11117E 11117F 11117H 11122 11122A 11126 11126A 11131 11135 11182 11191 11191A 11201 11201A 11201B 11213 11492B 11493A 12108 12108A 9034551025 9151160840 9161160818 9161160840
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-71010

2YJ,3YJ..YN5#,6#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-12056

2YJ,3Y#..YN5#,6#

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-13021

2YJ,3Y#..YN5#,6#

 10
11115 - GASKET, CYLINDER HEAD
11115-71010

2YJ,3YJ..YN5#,6#

 1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-20002

2YJ,3Y#..YN5#,6#

 2
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90340-16002

2YJ,3Y#..YN5#,6#

 1
11117H - GASKET(FOR WATER HOLE)
90430-20004

2YJ,3Y#..YN5#,6#

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-71020

2YJ,3Y#..YN5#,6#

O/S 0.05,O/S 0.05

 4
11122-71020

2YJ,3Y#..YN5#,6#

STD,STD

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

2YJ,3Y#..YN5#,6#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11127-71020

2YJ,3Y#..YN5#,6#

O/S 0.05,O/S 0.05

 4
11126-71020

2YJ,3Y#..YN5#,6#

STD,STD

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

2YJ,3Y#..YN5#,6#

 4
11131 - SEAT, INTAKE VALVE
11132-63010

2YJ,3Y#..YN5#,6#

O/S 0.03,O/S 0.03

 4
11131-63010

2YJ,3Y#..YN5#,6#

STD,STD

 4
11135 - SEAT, EXHAUST VALVE
11135-71010

2YJ,3Y#..YN5#,6#

STD,STD

 4
11136-71010

2YJ,3Y#..YN5#,6#

O/S 0.03,O/S 0.03

 4
11182 - GASKET, CYLINDER HEAD REAR PLATE
11182-71010

2YJ,3Y#..YN5#,6#

 1
11191 - TUBE, SPARK PLUG
11191-22010

2YJ,3Y#..YN5#,6#

 4
11191A - GASKET(FOR SPARK PLUG TUBE)
90430-31141

2YJ,3Y#..YN5#,6#

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-79035

2YJ,3Y#..YN5#,6#

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

2YJ,3Y#..YN5#,6#

 3
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09001

2YJ,3Y#..YN5#,6#

 3
11213 - GASKET, CYLINDER HEAD COVER
11213-71020

2YJ,3Y#..YN5#,6#

 1
11492B - PLATE, WATER SEAL
11492-71010

2YJ,3Y#..YN5#,6#

 1
11493A - GASKET, WATER SEAL PLATE
11493-71010

2YJ,3Y#..YN5#,6#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-71011

2YJ,3Y#..YN5#,6#

 1
12180-71010

2YJ,3YJ..YN5#,6#

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-71010

2YJ,3YJ..YN5#,6#

 1
Common parts
90345-51025
91511-60840
91611-60818
91611-60840
