YN56-QF (1984)

Toyota Hilux

Production Nov 1984 - Aug 1988
Engine 2YJ 3YP
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )LPG

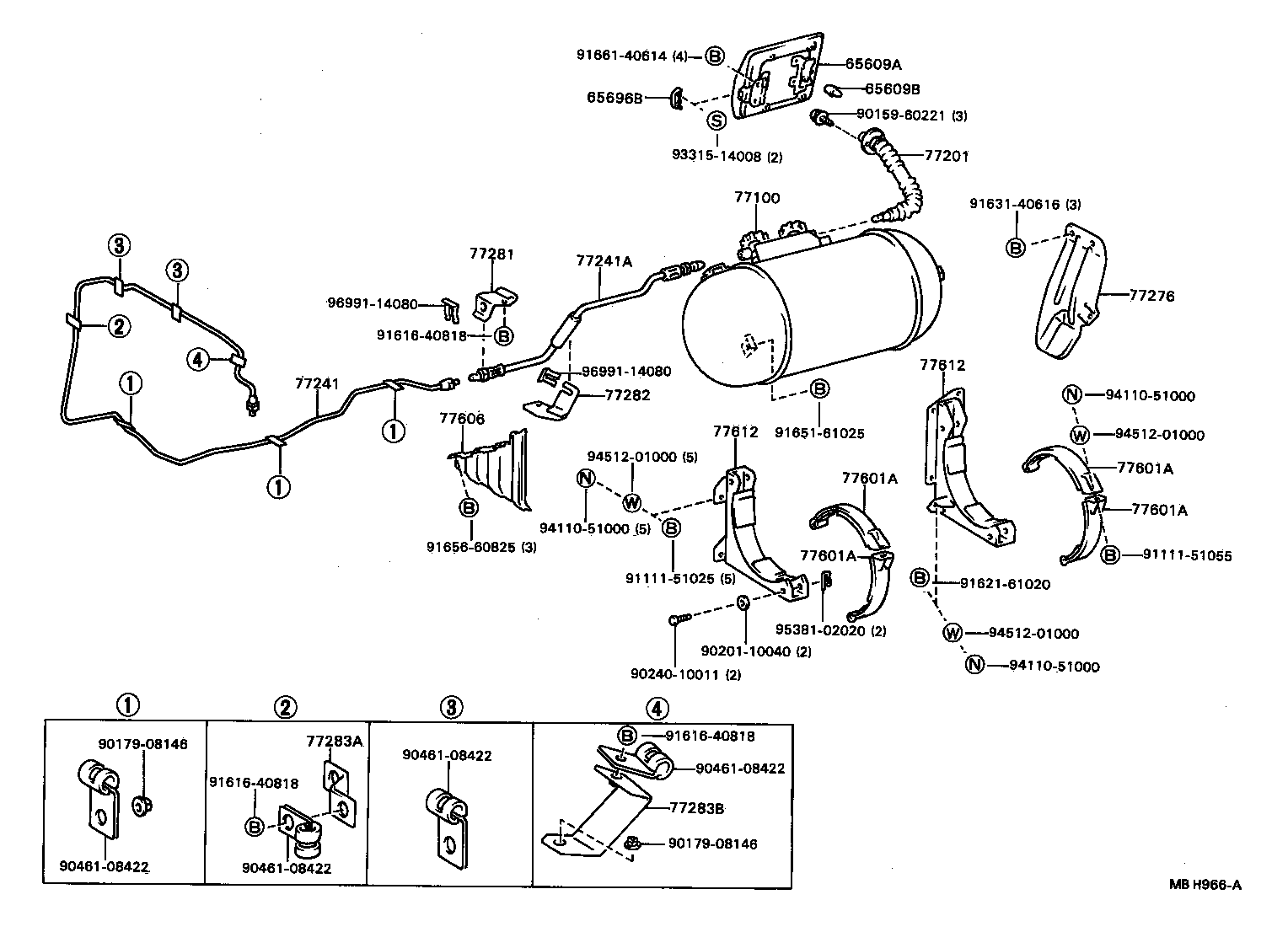

Click highlighted areas on diagram

diagram 65609A 65609B 65696B 77100 77201 77241 77241A 77276 77281 77282 77283A 77283B 77601A 77601A 77601A 77601A 77606 77612 77612 9015960221 9017908146 9017908146 9020110040 9024010011 9046108422 9046108422 9046108422 9046108422 9111151025 9111151055 9161640818 9161640818 9161640818 9162161020 9163140616 9165161025 9165660825 9166140614 9331514008 9411051000 9411051000 9411051000 9451201000 9451201000 9451201000 9538102020 9699114080 9699114080
Part # Description Qty Price
65609A - LID SUB-ASSY, INSPECTION OPENING
65609-89104

YN56..LPG

LPG PACKAGE

 1
65609B - CUSHION(FOR INSPECTION OPENING)
90541-08011

YN56..LPG

LPG PACKAGE

 2
90541-08003

YN56..LPG

LPG PACKAGE

 2
65696B - KNOB, INSPECTION OPENING LID
65696-89101

YN56..T1..LPG

LPG PACKAGE

 1
77100 - TANK ASSY, FUEL
77100-35300

LN55,56..T1,T3

56 LITER

 1
77100-35290

YN56..LPG

56 LITER

 1
77100-35291

YN56..T1,T3

56 LITER

 1
77001-35927

LN56,YN56..T1,T3

56LITER

 1
77001-35951

LN56,YN56..SJL,T1,T3

56LITER

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-35200

LN5#,YN5#..T1

 1
77201-35310

LN5#,YN5#..T1

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-35331

LN55,56,65

 1
77251-35240

YN56..SJL,T1,T3

 1
77251-35330

LN55,56,65

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06040

YN5#,6#..CBR

*H,L=340

 1
95332-08030

LN5#,6#

*H,L=260,内径=7.6

 1
95332-08030

LN5#,6#

*H,L=260,内径=7.6

 1
95332-08040

LN5#,6#

*H,L=320,内径=7.6,W/FUEL HEATER

 1
77259-35060

YN56..LPG

LPG PACKAGE

 1
77282 - BRACKET, FUEL MAIN TUBE, NO.2
77282-35040

YN56..LPG

LPG PACKAGE

 1
77283A - BRACKET, FUEL TUBE CLAMP, NO.1
77777-35020

YN56..LPG

LPG PACKAGE

 1
77283B - BRACKET, FUEL TUBE CLAMP, NO.2
77777-35030

YN56..LPG

LPG PACKAGE

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77161-35050

LN5#,YN5#..SJL,T1,T3

 1
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-35010

YN56..LPG

LPG PACKAGE,FR

 1
77502-35010

YN56..LPG

LPG PACKAGE,RR

 1
77612 - BRACKET SUB-ASSY, FUEL TANK
77501-35010

YN56..LPG

LPG PACKAGE,FR

 1
77502-35010

YN56..LPG

LPG PACKAGE,RR

 1
Common parts
90159-60221
90179-08146
90201-10040
90240-10011
90461-08422
91111-51025
91111-51055
91616-40818
91621-61020
91631-40616
91651-61025
91656-60825
91661-40614
93315-14008
94110-51000
94512-01000
95381-02020
96991-14080
