YN56-QF (1984)

Toyota Hilux

Production Nov 1984 - Aug 1988
Engine 2YJ 3YP
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311-8608)T1,T3,TW

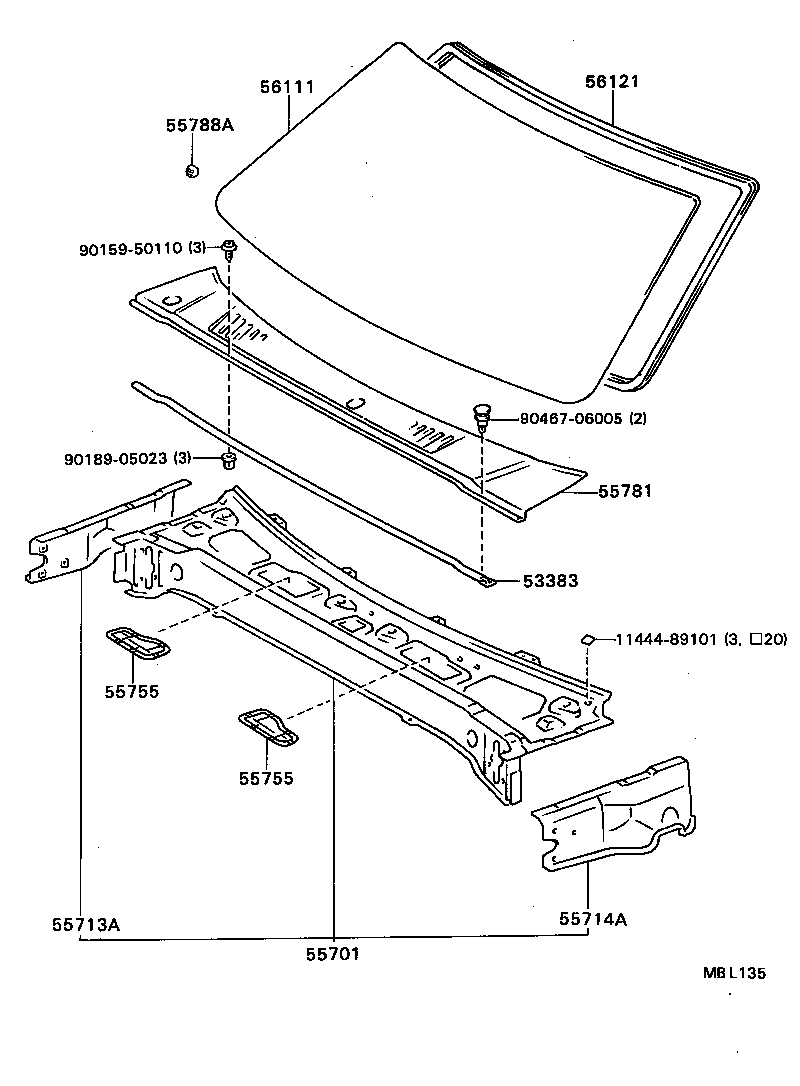

Click highlighted areas on diagram

diagram 1144489101 53383 55701 55713A 55714A 55755 55755 55781 55788A 56111 56121 9015950110 9018905023 9046706005
Part # Description Qty Price
53383 - SEAL, HOOD TO COWL TOP
53383-89105

LN5#,6#,YN5#,6#

 1
55701 - PANEL SUB-ASSY, COWL
55700-89114

YN5#,60,65

 1
55700-89115

LN5#,6#

 1
55700-89114

YN5#,60,65

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-89104

LN5#,6#,YN5#,6#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-89105

LN5#,6#,YN5#,6#

 1
55781 - LOUVER, COWL VENTILATOR
55781-89102

LN5#,6#,YN5#,6#

 1
55788A - PROTECTOR, COWL TOP VENTILATOR LOUVER
55788-89101

LN5#,6#,YN56,6#

 2
56111 - GLASS, WINDSHIELD
56111-89126

LN55,56,60,65,YN56,60..(T1,TW)..(SDX,SR)

*TZT,T=5.0,ﾌﾞﾙｰ,*TZT,T=5.0

 1
56111-89139

LN5#,60,65,YN5#,60,65

*TL,T=5.3,*TL,T=5.3

 1
56111-89130

LN5#,60,65,YN5#,60,65

*LAM,T=5.3,*LAM,T=5.0

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-89118

LN55,56,60,65,YN56,60..SDX,SR

 1
Common parts
11444-89101
90159-50110
90189-05023
90467-06005
