YN56-QDP (1984)
Toyota Hilux
Production
Nov 1984
-
Aug 1988
Engine
2YJ
Transmission
5H MTM
Displacement
2500cc
Power
168 HP (125 kW)

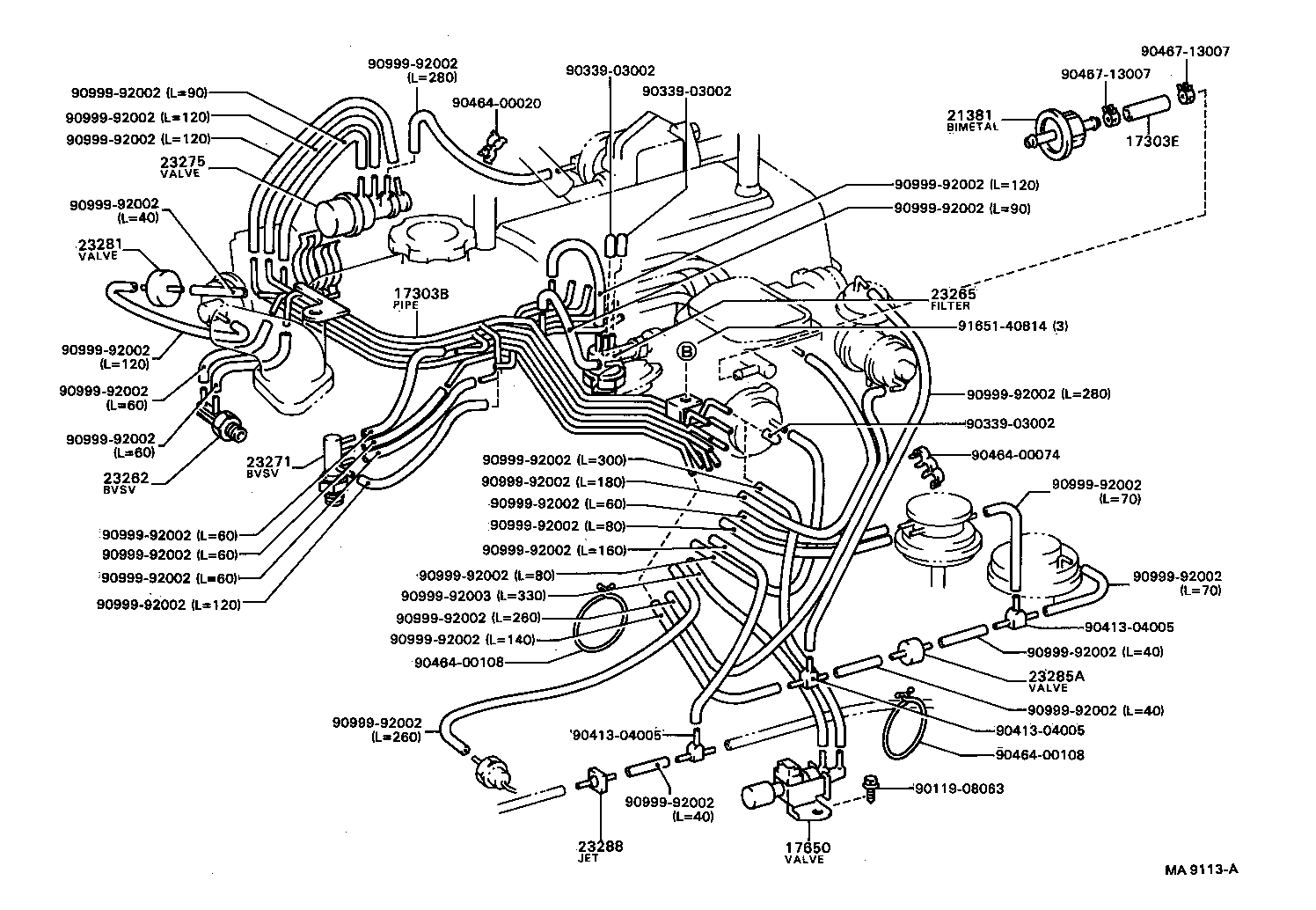

(8311-8608)2YJ,3YJ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-71060 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35180 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05017 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03152 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01019 |
2YJ..YN5# |
1 | ||
| 90925-01014 |
2YJ..YN5# |
1 | ||
| 23284 - VALVE, VACUUM TRANSMITTING, NO.4 | ||||
| 90925-01021 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 25810 - VALVE ASSY, BIMETAL | ||||
| 25820-37010 |
2YJ,3YJ..YN5#,6# |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00020 | ||||
| 90464-00082 | ||||
| 90464-00108 | ||||
| 90999-02002 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||

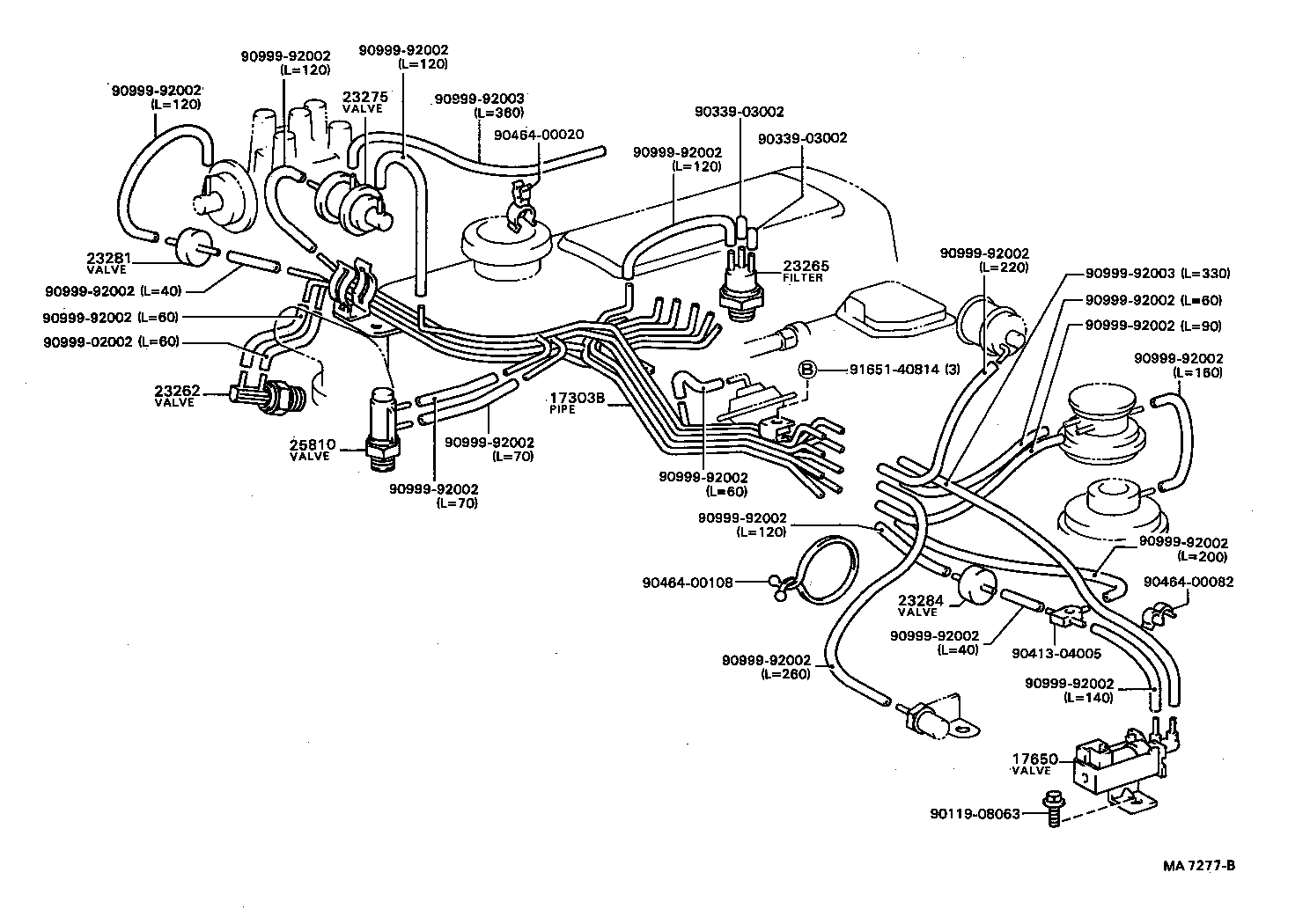

(8608- )2YJ,3YJ
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-71060 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-35180 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05017 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03152 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01019 |
2YJ..YN5# |
1 | ||
| 90925-01014 |
2YJ..YN5# |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00020 | ||||
| 90464-00074 | ||||
| 90464-00108 | ||||
| 90467-13007 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
