YN56-QD (1984)

Toyota Hilux

Production Nov 1984 - Aug 1988
Engine 2YJ 3YP
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )YN5#,61..DLX,SDX,SSR

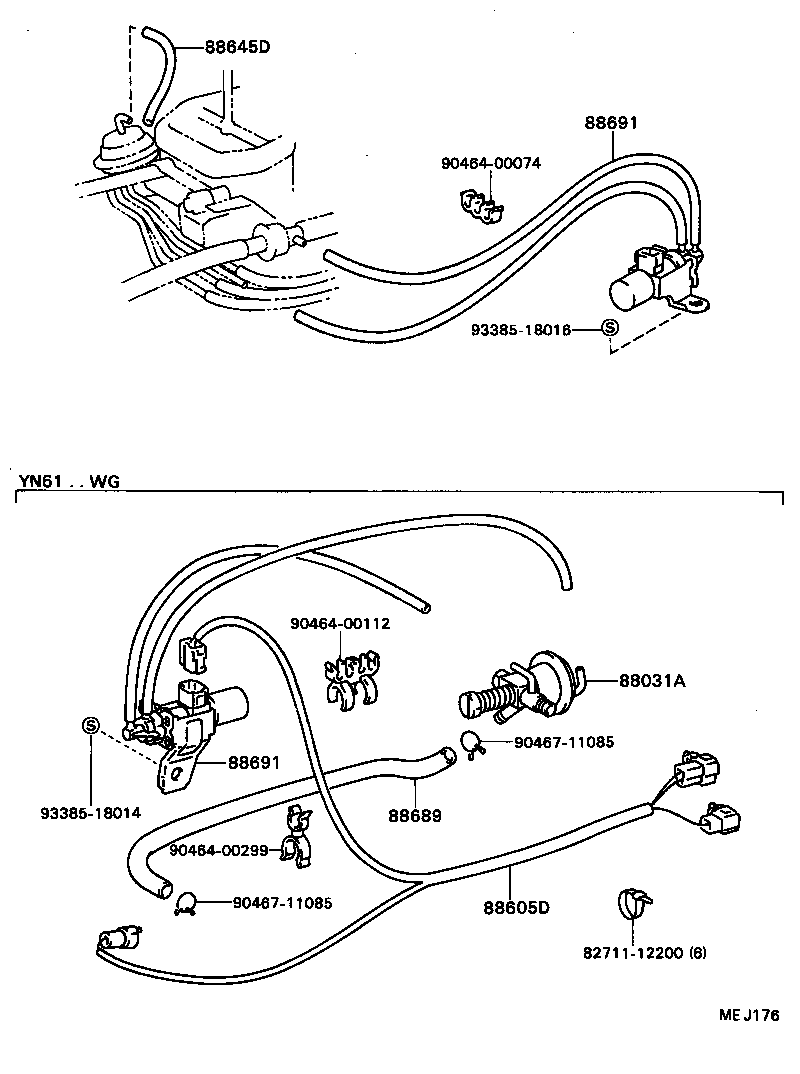

Click highlighted areas on diagram

diagram 8271112200 88031A 88605D 88645D 88689 88691 88691 9046400074 9046400112 9046400299 9046711085 9046711085 9338518014 9338518016
Part # Description Qty Price
88645D - HOSE (FOR IDLE UP DEVICE)
95411-11030

YN5#

*H,L=100,ﾏｰｸ=#10

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89118

LN5#,6#

 1
88690-89124

YN5#

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-89118

LN5#,6#

 1
88690-89124

YN5#

 1
Common parts
82711-12200
90464-00074
90464-00112
90464-00299
90467-11085
93385-18014
93385-18016
