YN56-QD (1984)

Toyota Hilux

Production Nov 1984 - Aug 1988
Engine 2YJ 3YP
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411-8808)2YJ..YN56..LPG

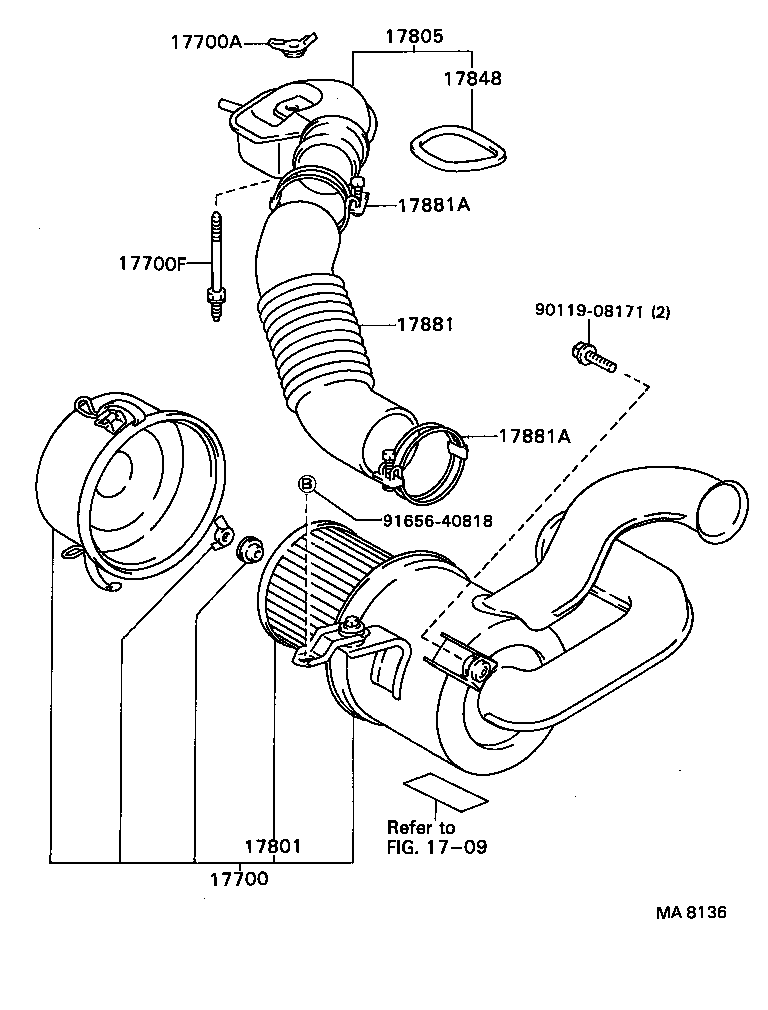

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700F 17801 17805 17848 17881 17881A 17881A 9011908171 9165640818
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-71040

2YJ,3YJ..YN5#,6#

 1
17700-54300

L,2L..LN5#,6#

COLD SPEC

 1
17700-54180

L,2L..LN5#,6#

 1
17700-73060

2YJ..YN56..LPG

LPG PACKAGE,3YP

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

2YJ..YN56..LPG

LPG PACKAGE,3YP

 1
90175-06003

2YJ,3YJ..YN5#,6#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06024

2YJ,3YJ..YN5#,6#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31050

2YJ..YN56..LPG

LPG PACKAGE,3YP

 1
17801-34060

2YJ,3YJ..YN5#,6#

 1
17801-54030

L,2L..LN5#,6#

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-73040

2YJ..YN56..LPG

LPG PACKAGE,3YP

 1
17805-89104

L,2L..LN5#,6#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

2YJ,3YJ..YN5#,6#

 1
90430-72003

2YJ..YN56..LPG

LPG PACKAGE,3YP

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-34071

2YJ,3YJ..YN5#,6#

 1
17881-73060

2YJ..YN56..LPG

LPG PACKAGE,3YP

 1
17881-74040

2YJ,3YJ..YN5#,6#

 1
17881-54190

L,2L..LN5#,6#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

2YJ..YN56..LPG

AIR CLEANER SIDE,LPG PACKAGE,3YP

 1
96111-10690

L,2L..LN5#,6#

 2
96111-10460

2YJ,3YJ..YN5#,6#

 1
96111-10730

2YJ..YN56..LPG

CONNECTOR SIDE,LPG PACKAGE,3YP

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

2YJ..YN56..LPG

AIR CLEANER SIDE,LPG PACKAGE,3YP

 1
96111-10690

L,2L..LN5#,6#

 2
96111-10460

2YJ,3YJ..YN5#,6#

 1
96111-10730

2YJ..YN56..LPG

CONNECTOR SIDE,LPG PACKAGE,3YP

 1
Common parts
90119-08171
91656-40818
Linked diagrams
1709
