YN56-JF (1983)
Toyota Hilux
Production
Nov 1983
-
Aug 1985
Engine
2YJ 3YP
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8311- )SJL,T1,T3,TW

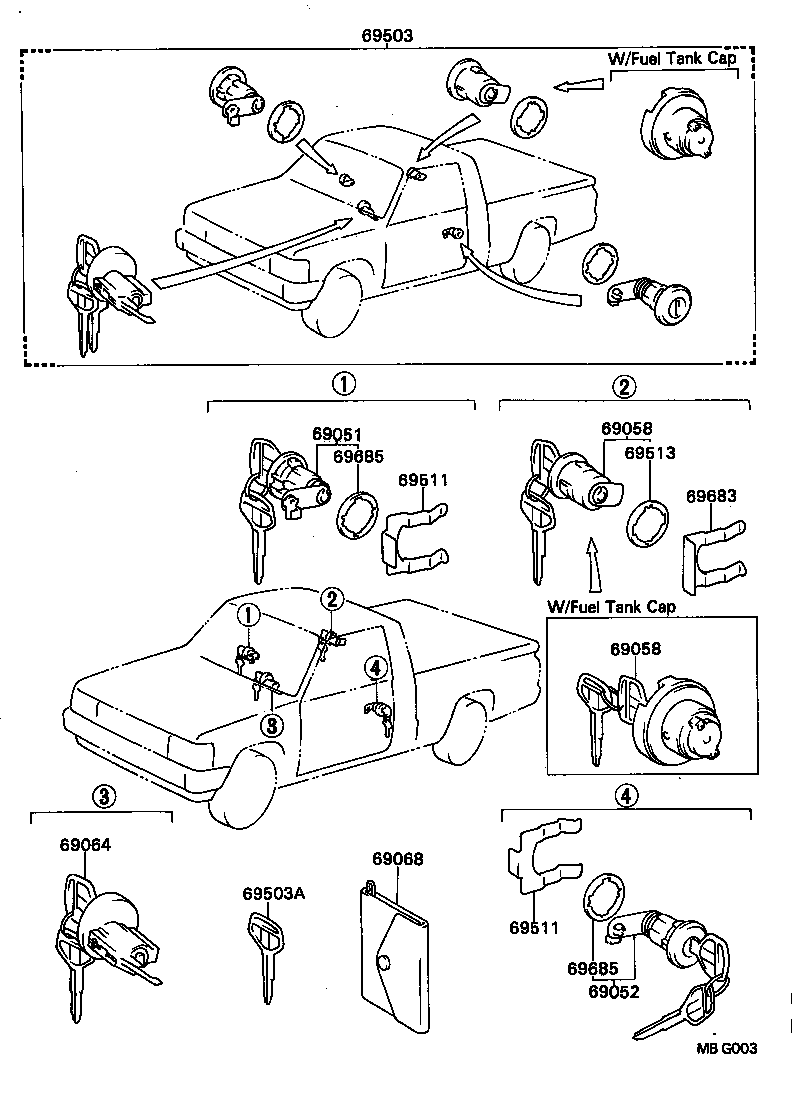

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-89111 |
LN5#,6#,YN5#,6# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-89111 |
LN5#,6#,YN5#,6# |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-89105 |
LN5#,6#,YN56,6#..T1 |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-89105 |
LN5#,6#,YN56,6#..T1 |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-89107 |
LN5#,6#,YN5#,6# |
1 | ||
| 69068 - COVER SUB-ASSY, KEY | ||||
| 84041-89102 |
LN5#,6#,YN5#,6# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-89139 |
LN5#,60,65,YN5#,60,65..T1..CBU |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00066 |
LN5#,6#,YN5#,6# ﾏｽﾀｰｷｰ |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-89101 |
LN5#,6#,YN5#,6# |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-89101 |
LN5#,6#,YN5#,6# |
2 | ||
| 69513 - PAD, FUEL FILLER LID LOCK CYLINDER | ||||
| 69513-12020 |
LN5#,6#,YN5#,6#..(T1,V,WG)..CBU |
1 | ||
| 69683 - CLAMP, FUEL LOCK CYLINDER | ||||
| 69681-89102 |
LN5#,60,65,YN5#,60,65..T1..CBU |
1 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
LN5#,6#,YN5#,6# |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
LN5#,6#,YN5#,6# |
2 | ||
