YN56-JF (1983)

Toyota Hilux

Production Nov 1983 - Aug 1985
Engine 2YJ 3YP
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )MTM

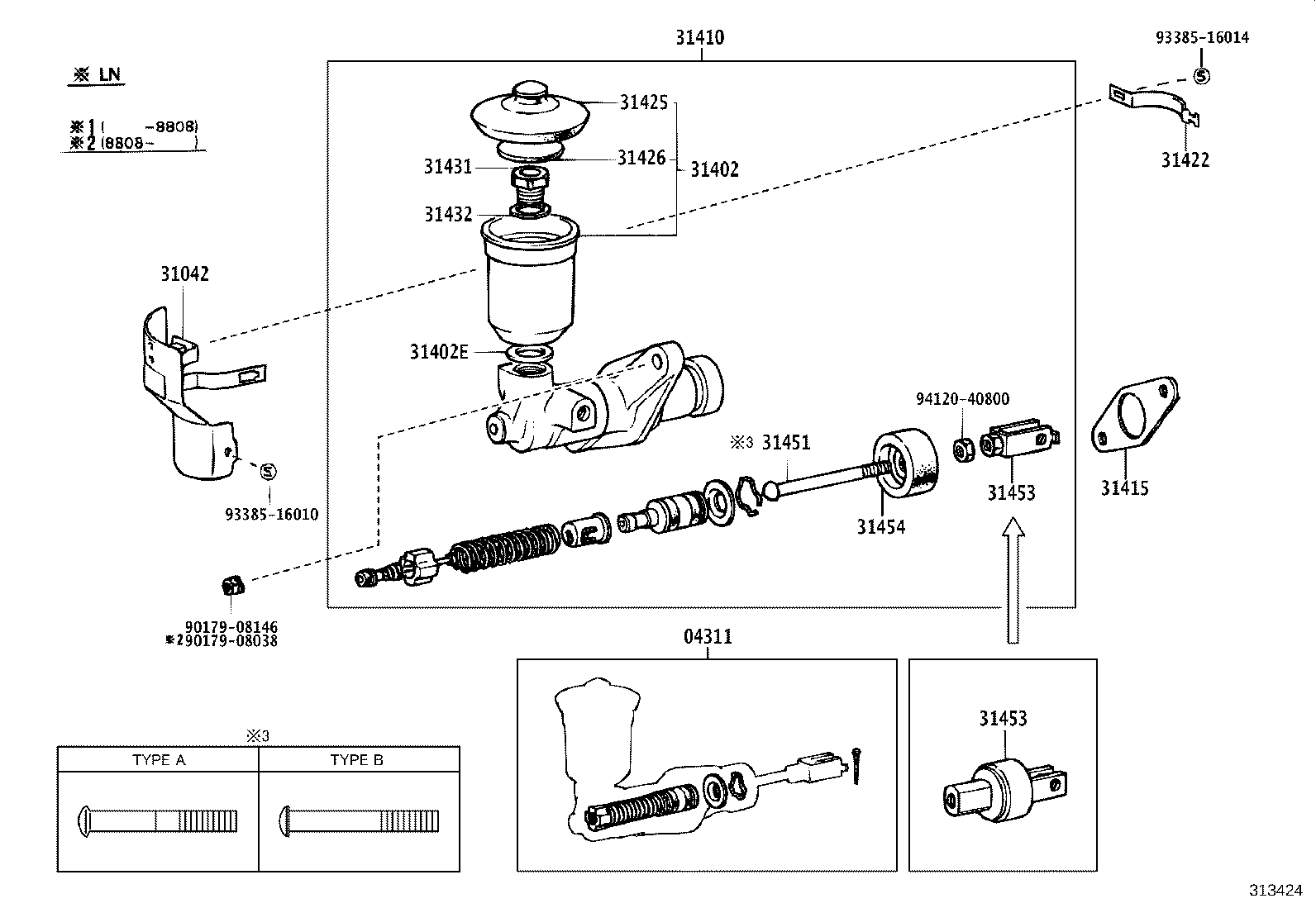

Click highlighted areas on diagram

diagram 04311 31042 31402 31402E 31410 31415 31422 31425 31426 31431 31432 31451 31453 31453 31454 9017908038 9017908146 9338516010 9338516014 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-14011

LN50,55,6#,YN5#,6#..CBR,DSL

PNC 31451=TYPE A

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-30030

LN5#,6#,YN5#,6#..MTM..(CBR,DSL,EFI)

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-35130

YN5#,6#

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-30030

LN5#,6#,YN5#,6#..MTM

 1
31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

LN5#,6#,YN5#,6#..MTM

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

LN5#,6#,YN5#,6#..MTM

 1
31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET
47231-30010

LN5#,6#,YN5#,6#..MTM

 1
31432 - WASHER, CLUTCH RESERVOIR SET BOLT
47232-30010

LN5#,6#,YN5#,6#..MTM..(CBR,DSL,EFI)

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-20050

YN5#,6#

TYPE A:ｲﾗｽﾄ参照

 1
31451-30060

LN50,55,6#

TYPE A:ｲﾗｽﾄ参照

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

YN5#,6#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-22010

YN5#,6#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

YN5#,6#

 1
31454-24010

LN50,55,6#

 1
Common parts
90179-08038
90179-08146
93385-16010
93385-16014
94120-40800
