YN56-JDB (1983)

Toyota Hilux

Production Nov 1983 - Aug 1985
Engine 2YJ 3YP
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )SJL,T1,T3,V,WG

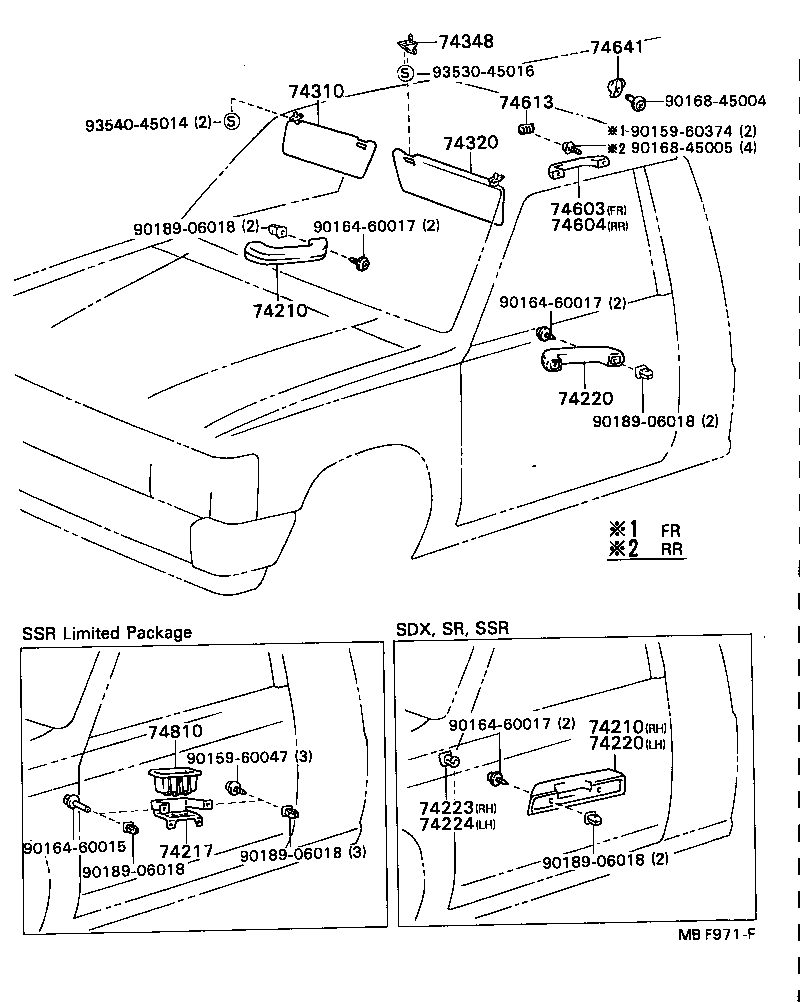

Click highlighted areas on diagram

diagram 74210 74210 74217 74220 74220 74223 74224 74310 74320 74348 74603 74604 74613 74641 74810 9015960047 9015960374 9016460015 9016460017 9016460017 9016460017 9016845004 9016845005 9018906018 9018906018 9018906018 9018906018 9018906018 9353045016 9354045014
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-8910113

LN5#,65,YN5#,65..DLX

GRAY,GRAY,TRIM1#

 1
74210-8910106

LN5#,65,YN5#,65..DLX

BROWN,BROWN,TRIM4#

 1
74210-8910124

LN5#,65,YN5#,65..DLX

BLUE,BLUE,TRIM8#

 1
74210 - ARMREST ASSY, FRONT, RH
74210-8910113

LN5#,65,YN5#,65..DLX

GRAY,GRAY,TRIM1#

 1
74210-8910106

LN5#,65,YN5#,65..DLX

BROWN,BROWN,TRIM4#

 1
74210-8910124

LN5#,65,YN5#,65..DLX

BLUE,BLUE,TRIM8#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-8910124

LN5#,65,YN5#,65..DLX

BLUE,BLUE,TRIM8#

 1
74210-8910106

LN5#,65,YN5#,65..DLX

BROWN,BROWN,TRIM4#

 1
74210-8910113

LN5#,65,YN5#,65..DLX

GRAY,GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74210-8910124

LN5#,65,YN5#,65..DLX

BLUE,BLUE,TRIM8#

 1
74210-8910106

LN5#,65,YN5#,65..DLX

BROWN,BROWN,TRIM4#

 1
74210-8910113

LN5#,65,YN5#,65..DLX

GRAY,GRAY,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-8911403

LN5#,YN5#

LIGHT GRAY,GRAY,TRIM1#,8#

 1
74310-8911408

LN5#,YN5#

IVORY,IVORY,TRIM4#

 1
74320 - VISOR ASSY, LH
74310-8911408

LN5#,6#,YN5#,6#

IVORY,IVORY,TRIM4#

 1
74310-8911403

LN5#,6#,YN5#,6#

LIGHT GRAY,GRAY,TRIM1#,8#

 1
74348 - HOLDER, VISOR
74348-1401023

LN5#,6#,YN56,6#

LIGHT GRAY,GRAY,TRIM1#,8#

 2
74348-1401018

LN5#,6#,YN5#,6#

IVORY,IVORY,TRIM4#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74611-8910108

LN5#,60,65,YN5#,60,65..T1,T3,TW

IVORY,IVORY,TRIM4#

 1
74611-8910123

LN5#,6#,YN56,6#

LIGHT GRAY,GRAY,TRIM1#,8#

 1
Common parts
90159-60047
90159-60374
90164-60015
90164-60017
90168-45004
90168-45005
90189-06018
93530-45016
93540-45014
