YN56-JDB (1983)

Toyota Hilux

Production Nov 1983 - Aug 1985
Engine 2YJ 3YP
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311- )

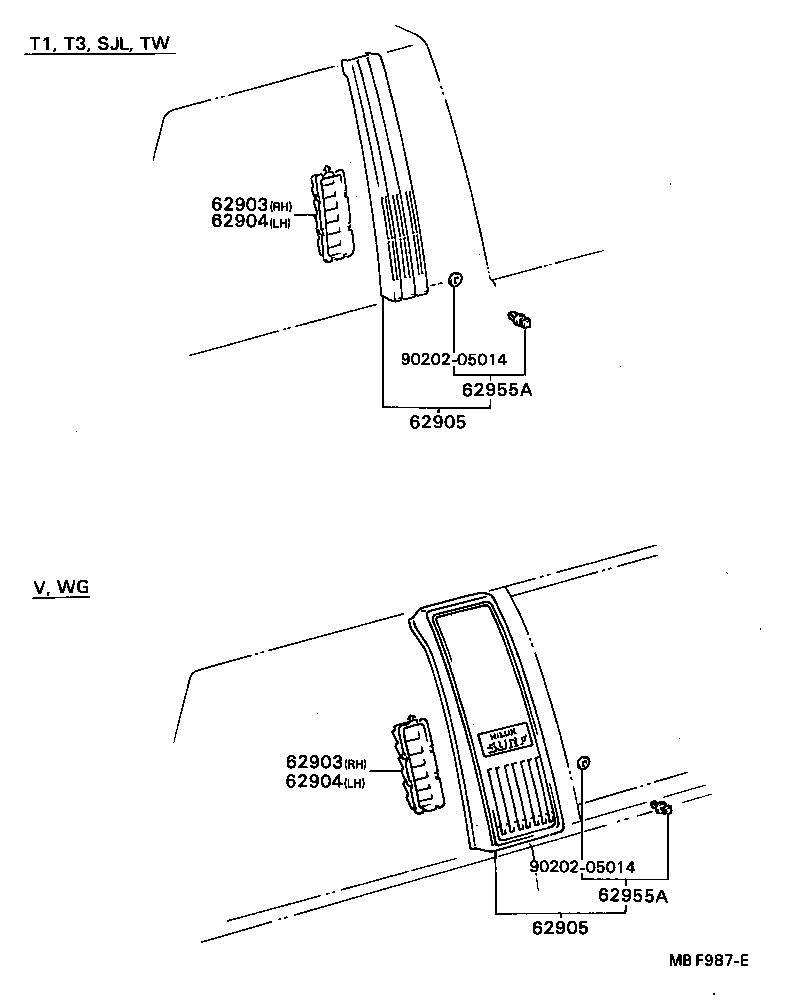

Click highlighted areas on diagram

diagram 62903 62903 62904 62904 62905 62905 62955A 62955A 9020205014 9020205014
Part # Description Qty Price
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62903-89101

LN5#,6#,YN5#,6#

 1
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62903-89101

LN5#,6#,YN5#,6#

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62903-89101

LN5#,6#,YN5#,6#

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62903-89101

LN5#,6#,YN5#,6#

 1
62905 - LOUVER, QUARTER VENTILATION
62905-89101

LN5#,60,65,YN5#,60,65..SJL,T1,T3,TW

RH

 1
62906-89101

LN5#,60,65,YN5#,60,65..SJL,T1,T3,TW

LH

 1
62905 - LOUVER, QUARTER VENTILATION
62905-89101

LN5#,60,65,YN5#,60,65..SJL,T1,T3,TW

RH

 1
62906-89101

LN5#,60,65,YN5#,60,65..SJL,T1,T3,TW

LH

 1
Common parts
90202-05014
