YN56-JDB (1983)

Toyota Hilux

Production Nov 1983 - Aug 1985
Engine 2YJ 3YP
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8311-8608)

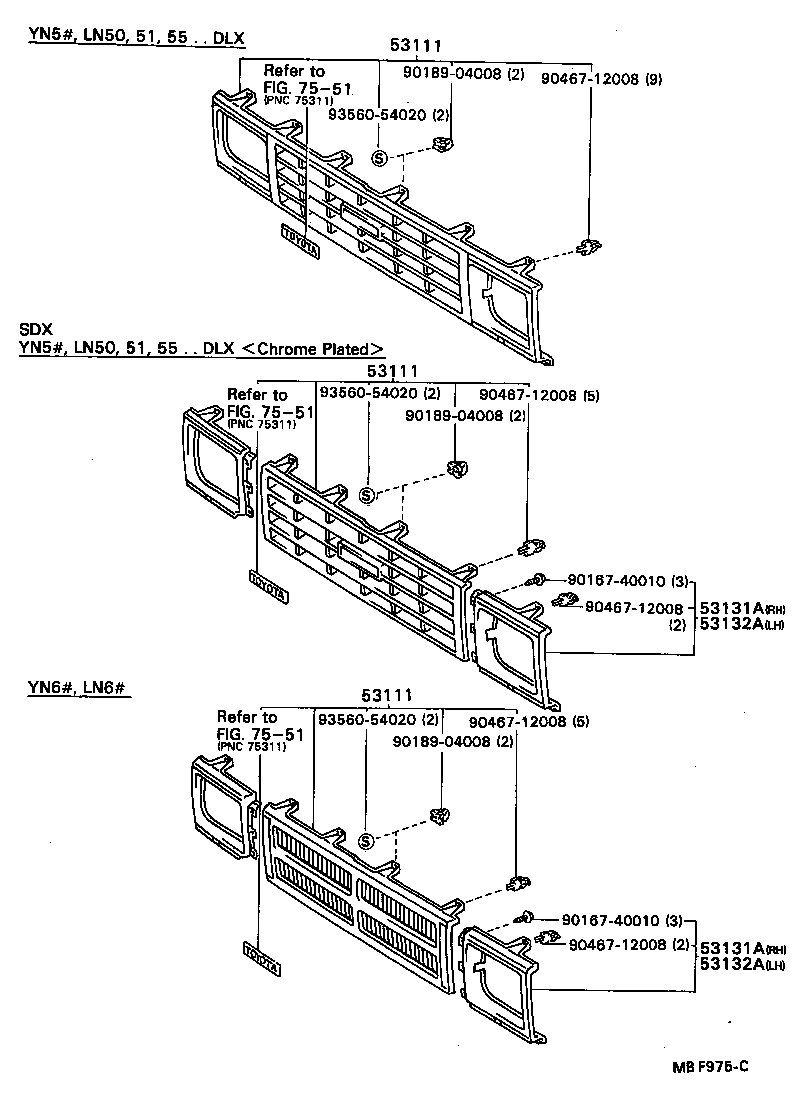

Click highlighted areas on diagram

diagram 53111 53111 53111 53131A 53131A 53132A 53132A 7551 7551 7551 9016740010 9016740010 9018904008 9018904008 9018904008 9046712008 9046712008 9046712008 9046712008 9046712008 9356054020 9356054020 9356054020
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-39055

LN5#,YN5#

CHROME PLATED

 1
53100-89110

LN5#,YN5#..DLX

 1
53111 - GRILLE, RADIATOR
53111-39055

LN5#,YN5#

CHROME PLATED

 1
53100-89110

LN5#,YN5#..DLX

 1
53111 - GRILLE, RADIATOR
53111-39055

LN5#,YN5#

CHROME PLATED

 1
53100-89110

LN5#,YN5#..DLX

 1
53131A - DOOR, HEADLAMP, RH
53131-39165

LN5#,6#,YN5#,6#

CHROME PLATED

 1
53131A - DOOR, HEADLAMP, RH
53131-39165

LN5#,6#,YN5#,6#

CHROME PLATED

 1
53132A - DOOR, HEADLAMP, LH
53132-39165

LN5#,6#,YN5#,6#

CHROME PLATED

 1
53132A - DOOR, HEADLAMP, LH
53132-39165

LN5#,6#,YN5#,6#

CHROME PLATED

 1
Common parts
90167-40010
90189-04008
90467-12008
93560-54020
Linked diagrams
7551
