YN51-JD (1984)
Toyota Hilux
Production
Nov 1984
-
Aug 1985
Engine
2YJ
Transmission
4H MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8311-8608)2YJ,3YJ

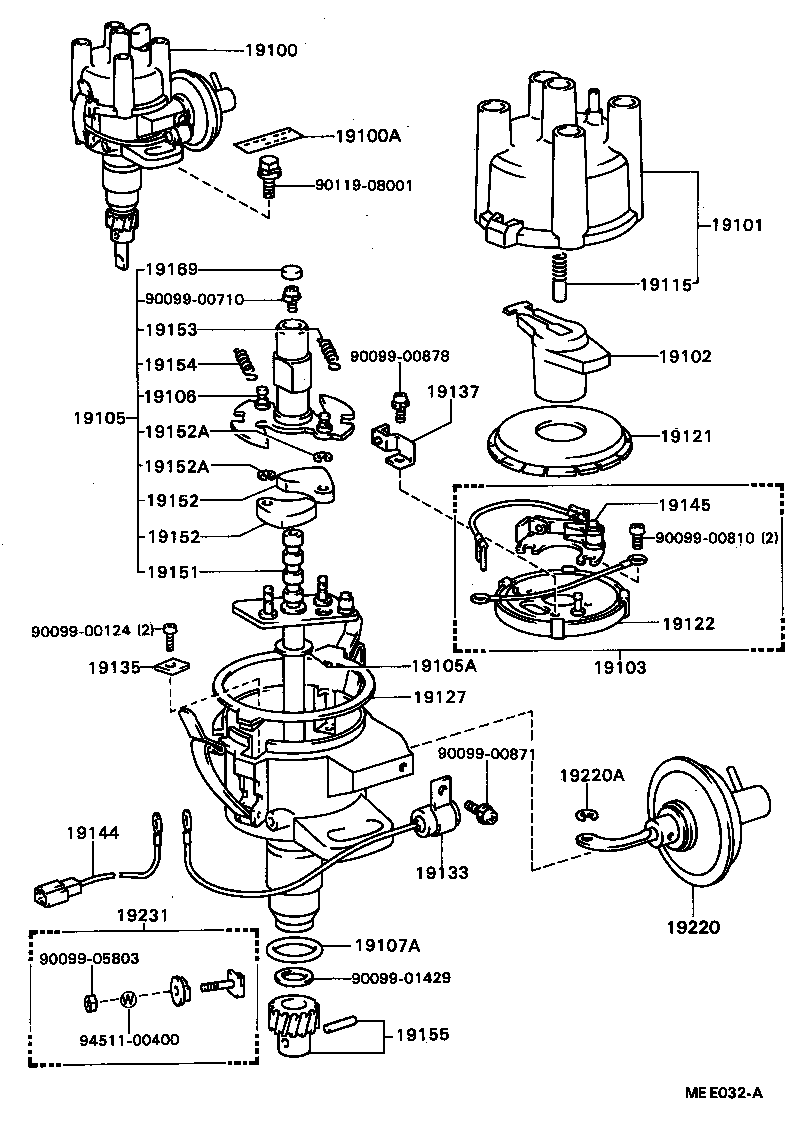

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-71010 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19100A - TAPE, SEALING | ||||
| 90919-24004 |
2YJ,3Y#..YN5#,6# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-71020 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-33012 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-26211 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-71011 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01386 |
2YJ,3YJ..YN5#,6# 厚さ=2.7,T=2.7 |
1 | ||
| 90099-01385 |
2YJ,3YJ..YN5#,6# 厚さ=2.5,T=2.5 |
1 | ||
| 90099-01412 |
2YJ,3YJ..YN5#,6# 厚さ=2.3,T=2.3 |
1 | ||
| 90099-01387 |
2YJ,3YJ..YN5#,6# 厚さ=2.9,T=2.9 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
2YJ,3Y#..YN5#,6# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38030 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15010 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52059 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19135 - PLATE, HOLDER | ||||
| 90099-02198 |
2YJ,3YJ..YN5#,6# |
2 | ||
| 19137 - SPRING SUB-ASSY, DAMPER | ||||
| 19137-33012 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-34180 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-26060 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-71020 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-71011 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-71011 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07109 |
2YJ,3YJ..YN5#,6# |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-24140 |
2YJ,3YJ..YN5#,6# |
1 | ||
| Common parts | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-01429 | ||||
| 90099-05803 | ||||
| 90119-08001 | ||||
| 94511-00400 | ||||
