YN130G-GKPGE (1989)

Toyota Hilux

Production Apr 1989 - Aug 1990
Engine 3YE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8809-9108)2Y,3Y

Click highlighted areas on diagram

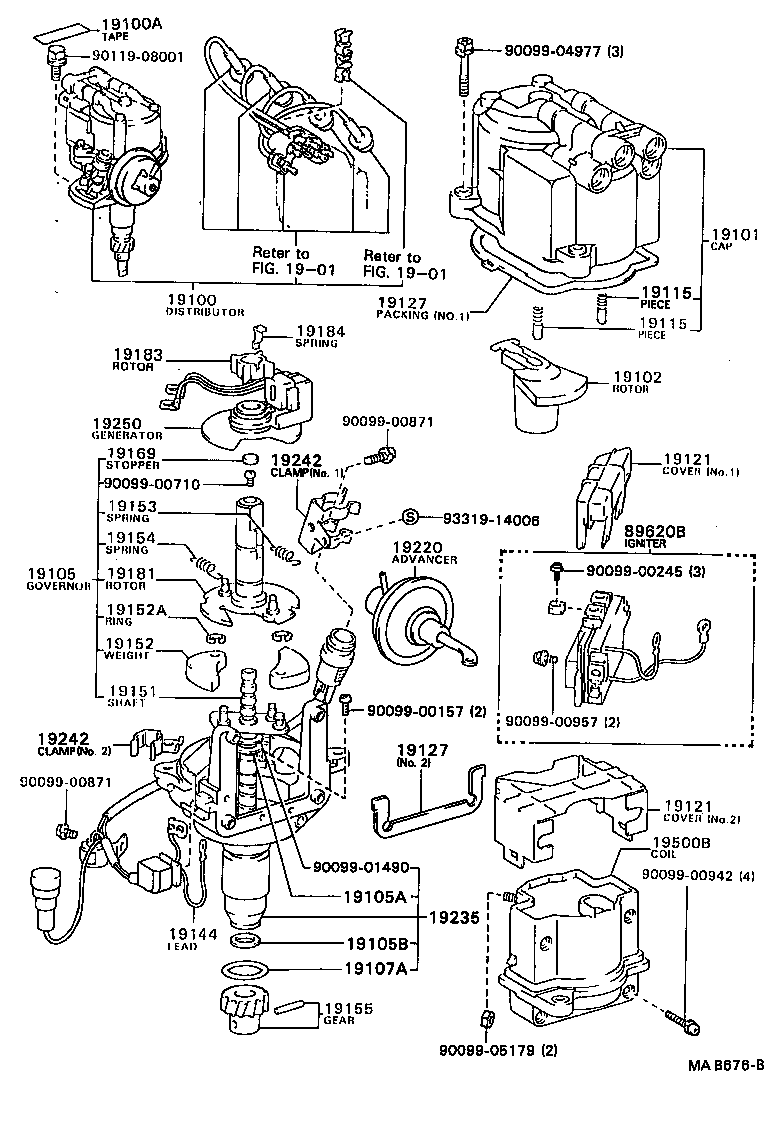

diagram 1901 1901 19100 19100A 19101 19102 19105 19105A 19105B 19107A 19115 19115 19121 19121 19127 19127 19144 19151 19152 19152A 19153 19154 19155 19169 19181 19183 19184 19220 19235 19242 19242 19250 19500B 89620B 9009900157 9009900245 9009900710 9009900871 9009900871 9009900942 9009900957 9009901490 9009904977 9009905179 9011908001 9331914006
Part # Description Qty Price
19100A - TAPE, SEALING
90919-24004

2Y,3Y#..YN10#,130,8#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-71010

2Y,3Y#..YN10#,130,8#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-16040

2Y,3YE..YN130,8#

 1
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01489

2Y,3Y#..YN10#,130,8#

厚さ=0.5

 2
90099-01486

2Y,3Y#..YN10#,130,8#

厚さ=0.3

 2
90099-01487

2Y,3Y#..YN10#,130,8#

厚さ=0.4

 2
90099-01488

2Y,3Y#..YN10#,130,8#

厚さ=0.6

 2
19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST)
90099-01429

2Y,3Y#..YN10#,130,8#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

2Y,3Y#..YN10#,130,8#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

2Y,3Y#..YN10#,130,8#

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

2Y,3Y#..YN10#,130,8#

 2
19121 - COVER, DUST PROOF
19121-63040

3YE..YN107,130,81,86

 1
19121 - COVER, DUST PROOF
19121-63040

3YE..YN107,130,81,86

 1
19127 - PACKING, DUST PROOF
19127-63010

2Y,3Y#..YN10#,130,8#

NO.1

 1
19127-63020

2Y,3Y#..YN10#,130,8#

NO.2

 1
19127 - PACKING, DUST PROOF
19127-63010

2Y,3Y#..YN10#,130,8#

NO.1

 1
19127-63020

2Y,3Y#..YN10#,130,8#

NO.2

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-71010

2Y,3Y#..YN10#,130,8#

 1
19242 - CLAMP, CORD
19242-73030

3YE..YN107,130,81,86

 1
19242 - CLAMP, CORD
19242-73030

3YE..YN107,130,81,86

 1
Common parts
90099-00157
90099-00245
90099-00710
90099-00871
90099-00942
90099-00957
90099-01490
90099-04977
90099-05179
90119-08001
93319-14006
Linked diagrams
1901

(8904- )3YE

Click highlighted areas on diagram

diagram 1901 1901 19100 19100A 19101 19102 19105A 19105A 19105B 19107A 19115 19115 19121 19127 19127 19144 19155 19235 19242 19500B 9009900871 9009900875 9009900942 9009904977 9009905179 9011908001
Part # Description Qty Price
19100A - TAPE, SEALING
90919-24004

2Y,3Y#..YN10#,130,8#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-71010

2Y,3Y#..YN10#,130,8#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-16040

2Y,3YE..YN130,8#

 1
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01489

2Y,3Y#..YN10#,130,8#

厚さ=0.5

 2
90099-01486

2Y,3Y#..YN10#,130,8#

厚さ=0.3

 2
90099-01487

2Y,3Y#..YN10#,130,8#

厚さ=0.4

 2
90099-01488

2Y,3Y#..YN10#,130,8#

厚さ=0.6

 2
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01489

2Y,3Y#..YN10#,130,8#

厚さ=0.5

 2
90099-01486

2Y,3Y#..YN10#,130,8#

厚さ=0.3

 2
90099-01487

2Y,3Y#..YN10#,130,8#

厚さ=0.4

 2
90099-01488

2Y,3Y#..YN10#,130,8#

厚さ=0.6

 2
19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST)
90099-01429

2Y,3Y#..YN10#,130,8#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

2Y,3Y#..YN10#,130,8#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

2Y,3Y#..YN10#,130,8#

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

2Y,3Y#..YN10#,130,8#

 2
19121 - COVER, DUST PROOF
19121-63040

3YE..YN107,130,81,86

 1
19127 - PACKING, DUST PROOF
19127-63010

2Y,3Y#..YN10#,130,8#

NO.1

 1
19127-63020

2Y,3Y#..YN10#,130,8#

NO.2

 1
19127 - PACKING, DUST PROOF
19127-63010

2Y,3Y#..YN10#,130,8#

NO.1

 1
19127-63020

2Y,3Y#..YN10#,130,8#

NO.2

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-71010

2Y,3Y#..YN10#,130,8#

 1
19242 - CLAMP, CORD
19242-73030

3YE..YN107,130,81,86

 1
Common parts
90099-00871
90099-00875
90099-00942
90099-04977
90099-05179
90119-08001
Linked diagrams
1901
