YN130G-GKMGE (1989)
Toyota Hilux

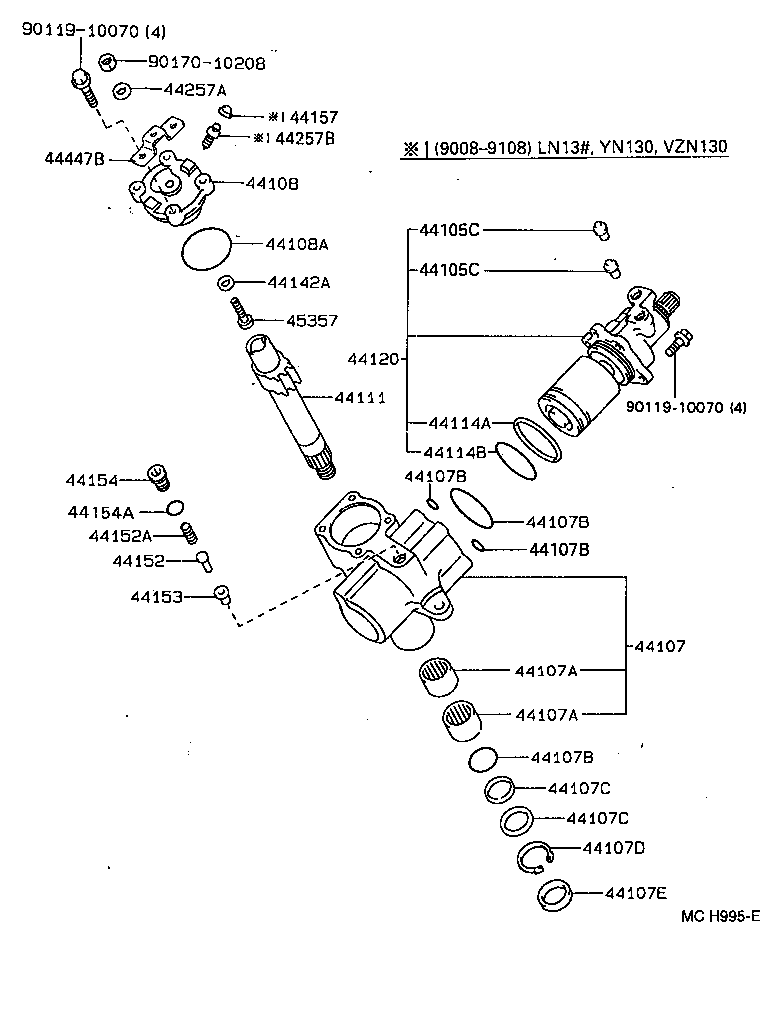

ILLUST NO. 3 OF 3(8809-9008)LN13#,YN130 ; (9008- )LN8#,YN8#
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
LN10#,13#,YN10#,130 |
2 | ||
| 90410-06005 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
LN10#,13#,YN10#,130 |
2 | ||
| 90410-06005 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-35150 |
LN13#,VZN130,YN130 |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-36006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-36006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN10#,13#,YN10#,130 内径=65.0,外径=70.0 |
1 | ||
| 90301-37006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=37.7,外径=44.7 |
1 | ||
| 96711-19010 |
LN10#,13#,YN10#,130 外径=13.6,内径=9.8 |
2 | ||
| 90301-65145 |
LN10#,13#,8#,VZN130,YN10#,130,8# 内径=65.0,外径=70.0 |
1 | ||
| 96711-19010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN10#,13#,YN10#,130 内径=65.0,外径=70.0 |
1 | ||
| 90301-37006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=37.7,外径=44.7 |
1 | ||
| 96711-19010 |
LN10#,13#,YN10#,130 外径=13.6,内径=9.8 |
2 | ||
| 90301-65145 |
LN10#,13#,8#,VZN130,YN10#,130,8# 内径=65.0,外径=70.0 |
1 | ||
| 96711-19010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN10#,13#,YN10#,130 内径=65.0,外径=70.0 |
1 | ||
| 90301-37006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=37.7,外径=44.7 |
1 | ||
| 96711-19010 |
LN10#,13#,YN10#,130 外径=13.6,内径=9.8 |
2 | ||
| 90301-65145 |
LN10#,13#,8#,VZN130,YN10#,130,8# 内径=65.0,外径=70.0 |
1 | ||
| 96711-19010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN10#,13#,YN10#,130 内径=65.0,外径=70.0 |
1 | ||
| 90301-37006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=37.7,外径=44.7 |
1 | ||
| 96711-19010 |
LN10#,13#,YN10#,130 外径=13.6,内径=9.8 |
2 | ||
| 90301-65145 |
LN10#,13#,8#,VZN130,YN10#,130,8# 内径=65.0,外径=70.0 |
1 | ||
| 96711-19010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 外径=13.6,内径=9.8 |
2 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-36002 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=36.0,外径=44.0 |
1 | ||
| 90562-35001 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=35.7,外径=38.1 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-36002 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=36.0,外径=44.0 |
1 | ||
| 90562-35001 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=35.7,外径=38.1 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-48002 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90311-36005 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-35050 |
LN13#,VZN130,YN130 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
LN10#,13#,YN10#,130 |
1 | ||
| 90301-64002 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-35021 |
LN13#,VZN130,YN130 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67002 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 90562-67002 |
LN10#,13#,YN10#,130 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-64005 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 90301-64005 |
LN10#,13#,YN10#,130 |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-35190 |
LN13#,VZN130,YN130 |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 44142-22020 |
LN10#,13#,YN10#,130 |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
LN13#,YN130 |
1 | ||
| 44152-30020 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
LN13#,YN130 |
1 | ||
| 90501-20095 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 44153-30020 |
LN13#,YN130 |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
LN13#,YN130 |
1 | ||
| 44154-30020 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
LN13#,YN130 |
1 | ||
| 96711-19014 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 44157 - CAP, BLEEDER PLUG(FOR POWER STEERING HOUSING) | ||||
| 44157-30010 |
LN13#,YN130 |
1 | ||
| 44157-30010 |
LN13#,8#,VZN130,YN130,8# |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LN10#,13#,YN10#,130 |
1 | ||
| 90210-10001 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 44257B - PLUG, BLEEDER(FOR POWER STEERING HOUSING) | ||||
| 47547-20010 |
LN13#,YN130 |
1 | ||
| 47547-20010 |
LN13#,8#,VZN130,YN130,8# |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-22010 |
LN10#,13#,VZN130,YN10#,130..SR,SSR |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90170-10208 | ||||

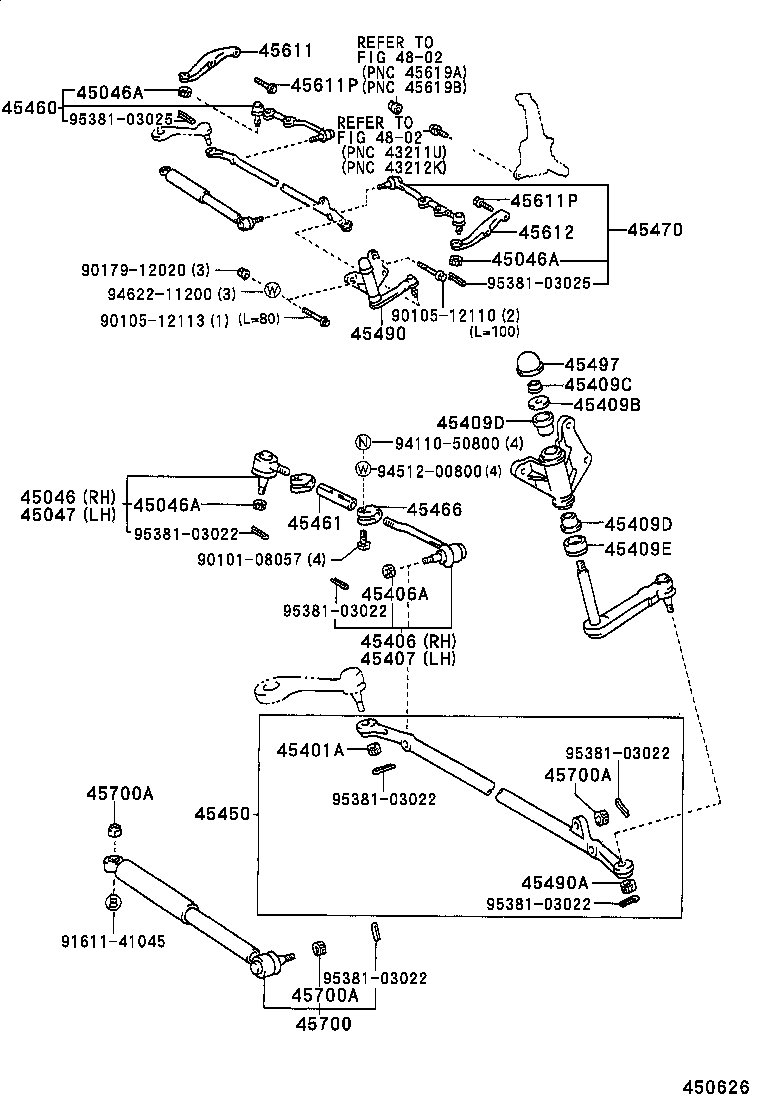

ILLUST NO. 1 OF 3(8904- )KZN130,LN107,108,109,112,13#,VZN130,YN107,130
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN10#,13#,VZN130,YN10#,130 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN10#,13#,VZN130,YN10#,130 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LN10#,13#,VZN130,YN10#,130 |
2 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
LN13#,VZN130,YN130 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39165 |
LN13#,VZN130,YN130 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39165 |
LN13#,VZN130,YN130 |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14010 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90386-18002 |
LN13#,VZN130,YN130 |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90386-18002 |
LN13#,VZN130,YN130 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45451-39025 |
LN13#,VZN130,YN130 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39335 |
LN13#,VZN130,YN130 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35030 |
LN13#,VZN130,YN130 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39335 |
LN13#,VZN130,YN130 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39335 |
LN13#,VZN130,YN130 |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 45497 - CAP, IDLER ARM BRACKET | ||||
| 45497-28010 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-35130 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
1 | ||
| 45611P - BOLT(FOR STEERING KNUCKLE) | ||||
| 90105-14043 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
4 | ||
| 45611P - BOLT(FOR STEERING KNUCKLE) | ||||
| 90105-14043 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-35150 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-39046 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 94110-41000 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 HOUSING X DAMPER |
1 | ||
| 90171-12028 |
KZN130,LN10#,112,13#,VZN130,YN10#,130 TIE ROD X DAMPER |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 94110-41000 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 HOUSING X DAMPER |
1 | ||
| 90171-12028 |
KZN130,LN10#,112,13#,VZN130,YN10#,130 TIE ROD X DAMPER |
1 | ||
| 45700A - NUT(FOR STEERING DAMPER) | ||||
| 94110-41000 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 HOUSING X DAMPER |
1 | ||
| 90171-12028 |
KZN130,LN10#,112,13#,VZN130,YN10#,130 TIE ROD X DAMPER |
1 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90179-12020 | ||||
| 91611-41045 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94622-11200 | ||||
| 95381-03022 | ||||
| Linked diagrams | ||||
| 4802 | ||||
ILLUST NO. 3 OF 3(9008-9108)LN13#,VZN130,YN130 ; (9108- )KZN130,LN107,108,109,112,13#,VZN130,YN10
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
LN10#,13#,YN10#,130 |
2 | ||
| 90410-06005 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06005 |
LN10#,13#,YN10#,130 |
2 | ||
| 90410-06005 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-35150 |
LN13#,VZN130,YN130 |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-36006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-36006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN10#,13#,YN10#,130 内径=65.0,外径=70.0 |
1 | ||
| 90301-37006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=37.7,外径=44.7 |
1 | ||
| 96711-19010 |
LN10#,13#,YN10#,130 外径=13.6,内径=9.8 |
2 | ||
| 90301-65145 |
LN10#,13#,8#,VZN130,YN10#,130,8# 内径=65.0,外径=70.0 |
1 | ||
| 96711-19010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN10#,13#,YN10#,130 内径=65.0,外径=70.0 |
1 | ||
| 90301-37006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=37.7,外径=44.7 |
1 | ||
| 96711-19010 |
LN10#,13#,YN10#,130 外径=13.6,内径=9.8 |
2 | ||
| 90301-65145 |
LN10#,13#,8#,VZN130,YN10#,130,8# 内径=65.0,外径=70.0 |
1 | ||
| 96711-19010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN10#,13#,YN10#,130 内径=65.0,外径=70.0 |
1 | ||
| 90301-37006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=37.7,外径=44.7 |
1 | ||
| 96711-19010 |
LN10#,13#,YN10#,130 外径=13.6,内径=9.8 |
2 | ||
| 90301-65145 |
LN10#,13#,8#,VZN130,YN10#,130,8# 内径=65.0,外径=70.0 |
1 | ||
| 96711-19010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 外径=13.6,内径=9.8 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-65145 |
LN10#,13#,YN10#,130 内径=65.0,外径=70.0 |
1 | ||
| 90301-37006 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=37.7,外径=44.7 |
1 | ||
| 96711-19010 |
LN10#,13#,YN10#,130 外径=13.6,内径=9.8 |
2 | ||
| 90301-65145 |
LN10#,13#,8#,VZN130,YN10#,130,8# 内径=65.0,外径=70.0 |
1 | ||
| 96711-19010 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# 外径=13.6,内径=9.8 |
2 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-36002 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=36.0,外径=44.0 |
1 | ||
| 90562-35001 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=35.7,外径=38.1 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-36002 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=36.0,外径=44.0 |
1 | ||
| 90562-35001 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 内径=35.7,外径=38.1 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-48002 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90311-36005 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-35050 |
LN13#,VZN130,YN130 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
LN10#,13#,YN10#,130 |
1 | ||
| 90301-64002 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-35021 |
LN13#,VZN130,YN130 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67002 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 90562-67002 |
LN10#,13#,YN10#,130 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-64005 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 90301-64005 |
LN10#,13#,YN10#,130 |
1 | ||
| 44120 - VALVE ASSY, W/BALL NUT | ||||
| 44120-35190 |
LN13#,VZN130,YN130 |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
LN10#,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 44142-22020 |
LN10#,13#,YN10#,130 |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
LN13#,YN130 |
1 | ||
| 44152-30020 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
LN13#,YN130 |
1 | ||
| 90501-20095 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 44153-30020 |
LN13#,YN130 |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
LN13#,YN130 |
1 | ||
| 44154-30020 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
LN13#,YN130 |
1 | ||
| 96711-19014 |
KZN130,LN107,108,109,112,13#,8#,VZN130,YN107,130,8# |
1 | ||
| 44157 - CAP, BLEEDER PLUG(FOR POWER STEERING HOUSING) | ||||
| 44157-30010 |
LN13#,YN130 |
1 | ||
| 44157-30010 |
LN13#,8#,VZN130,YN130,8# |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LN10#,13#,YN10#,130 |
1 | ||
| 90210-10001 |
KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8# |
1 | ||
| 44257B - PLUG, BLEEDER(FOR POWER STEERING HOUSING) | ||||
| 47547-20010 |
LN13#,YN130 |
1 | ||
| 47547-20010 |
LN13#,8#,VZN130,YN130,8# |
1 | ||
| 44447B - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-35030 |
KZN130,LN107,108,109,112,13#,VZN130,YN107,130 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-22010 |
LN10#,13#,VZN130,YN10#,130..SR,SSR |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90170-10208 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
