YN130G-GJPGE (1989)

Toyota Hilux

Production Apr 1989 - Aug 1990
Engine 3YE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

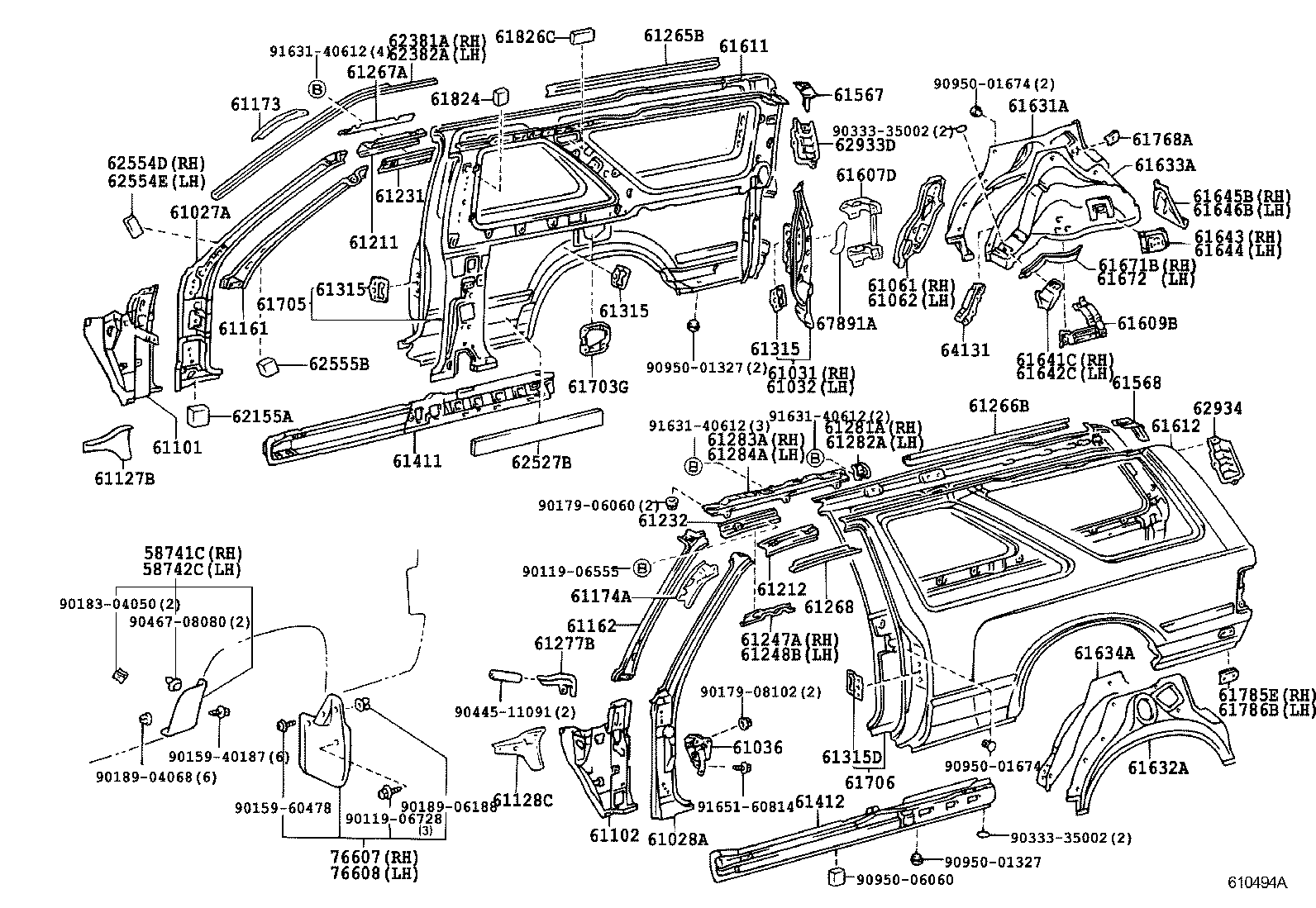

ILLUST NO. 1 OF 2(8904- )2D

Click highlighted areas on diagram

diagram 58741C 58742C 61027A 61028A 61031 61032 61036 61061 61062 61101 61102 61127B 61128C 61161 61162 61173 61174A 61211 61212 61231 61232 61247A 61248B 61265B 61266B 61267A 61268 61277B 61281A 61282A 61283A 61284A 61315 61315 61315 61315D 61411 61412 61567 61568 61607D 61609B 61611 61612 61631A 61632A 61633A 61634A 61641C 61642C 61643 61644 61645B 61646B 61671B 61672 61703G 61705 61706 61768A 61785E 61786B 61824 61826C 62155A 62381A 62382A 62527B 62554D 62554E 62555B 62933D 62934 64131 67891A 76607 76608 9011906555 9011906728 9015940187 9015960478 9017906060 9017908102 9018304050 9018904068 9018906188 9033335002 9033335002 9044511091 9046708080 9095001327 9095001327 9095001674 9095001674 9095006060 9163140612 9163140612 9163140612 9165160814
Part # Description Qty Price
58741C - PROTECTOR, QUARTER PANEL, RH
58741-8910203

LN130,YN130..2D

SILVER.M,27L

 1
58741-8910201

LN130,YN130..2D

BLACK,179 ,28L ,6J7

 1
58742C - PROTECTOR, QUARTER PANEL, LH
58742-8910203

LN130,YN130..2D

SILVER.M,27L

 1
61036 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61036-89101

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-89108

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-89108

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-89107

KZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-89107

KZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-89113

KZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-89113

KZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3

 1
61267A - CHANNEL, ROOF DRIP SIDE, REAR RH
61267-89101

KZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3

 1
61268 - CHANNEL, ROOF DRIP SIDE, REAR LH
61268-89101

KZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3

 1
61277B - JOINT, ROOF DRIP CHANNEL
61277-89101

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

ﾎﾂｶｲﾄﾞｳ ｼﾖｳ,右側

 1
61278-89101

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

ﾎﾂｶｲﾄﾞｳ ｼﾖｳ,左側

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61315-22020

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61315-22020

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
61315 - RETAINER, DOOR LOCK STRIKER PLATE
61315-22020

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
61315D - RETAINER, DOOR LOCK STRIKER, LH
61315-22020

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
61826C - PAD, NOISE SHUTTER, NO.3
61826-89102

YN130..4FC;LN130,YN130..2D..5F

 2
61826-89102

LN13#,YN130

 2
61826-89102

LN130;YN130..4FC;YN130..2D..5F

 2
62155A - PAD, COWL SIDE LOWER SILENCER
62155-89101

LN130;YN130..4FC;YN130..2D..5F

 2
62155-89101

YN130..4FC;LN130,YN130..2D..5F

 2
62381A - WEATHERSTRIP, ROOF SIDE RAIL, RH
62381-89101

KZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3

 1
62382A - WEATHERSTRIP, ROOF SIDE RAIL, LH
62382-89101

KZN130,LN100,106,130,8#,VZN130,YN100,130,8#..2D,T1,T2,T3

 1
62527B - PAD, QUARTER TRIM
62527-89104

LN130,YN130..2D

 2
62554D - PAD, FRONT PILLER
62554-89102

YN107..SR;LN100,106,107,13#,80,85,VZN130,YN100,105,130,80,85

 1
62554E - PAD, PILLAR, NO.4
62554-89102

YN107..SR;LN100,106,107,13#,80,85,VZN130,YN100,105,130,80,85

 1
62555B - PAD, PILLAR, NO.5
62555-89101

LN130;YN130..4FC;YN130..2D..5F

 2
62555-89101

YN130..4FC;LN130,YN130..2D..5F

 2
Common parts
90119-06555
90119-06728
90159-40187
90159-60478
90179-06060
90179-08102
90183-04050
90189-04068
90189-06188
90333-35002
90445-11091
90467-08080
90950-01327
90950-01674
90950-06060
91631-40612
91651-60814
