YN130G-GJMGE (1989)

Toyota Hilux

Production Apr 1989 - Aug 1991
Engine 3YE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

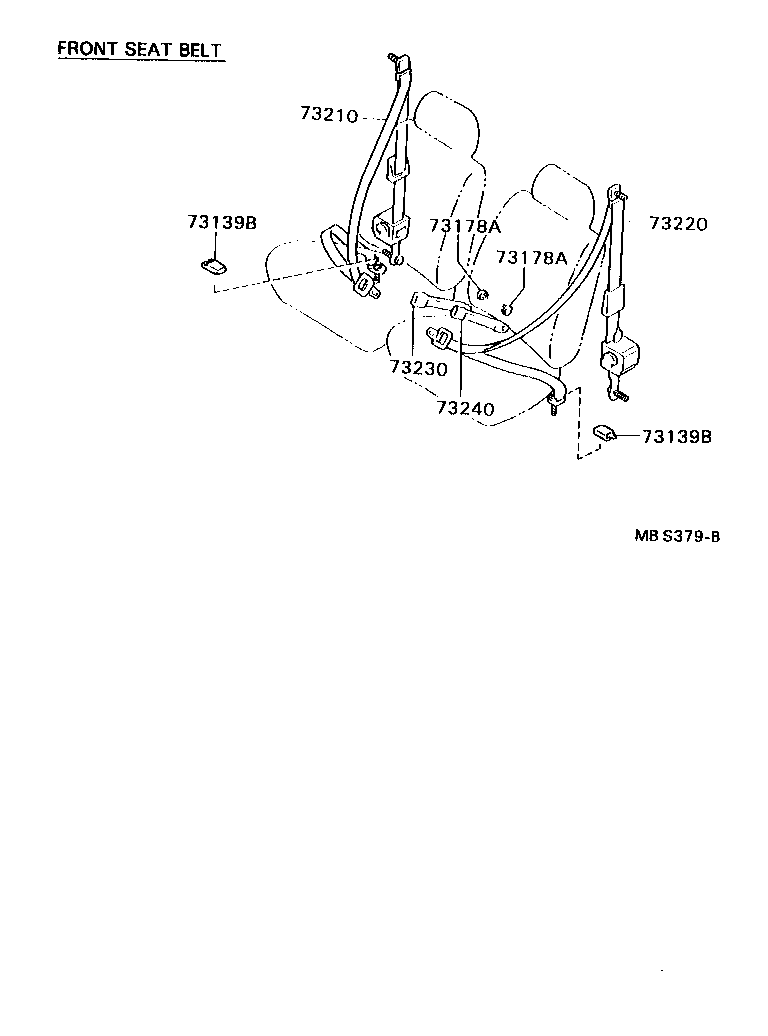

ILLUST NO. 1 OF 2(8904- )KZN130,LN13#,VZN130,YN130

Click highlighted areas on diagram

diagram 73139B 73139B 73178A 73178A 73210 73220 73230 73240
Part # Description Qty Price
73139B - COVER, SEAT BELT ANCHOR
73139-8910106

LN130,85,VZN130,YN130,85..DCB,WG

BROWN,TRIM4#

 2
73139-8910102

LN130,VZN130,YN130

RED,TRIM3#

 2
73139B - COVER, SEAT BELT ANCHOR
73139-8910106

LN130,85,VZN130,YN130,85..DCB,WG

BROWN,TRIM4#

 2
73139-8910102

LN130,VZN130,YN130

RED,TRIM3#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-8910102

LN130,VZN130,YN130

RED,TRIM3#

 2
73178-8910106

LN130,VZN130,YN130

BROWN,TRIM4#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-8910102

LN130,VZN130,YN130

RED,TRIM3#

 2
73178-8910106

LN130,VZN130,YN130

BROWN,TRIM4#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-8919803

LN130,YN130..2D

GRAY,TRIM1#

 1
73210-8919806

LN130,YN130..2D

BROWN,TRIM4#

 1
73210-8919802

LN130,YN130..2D

RED,TRIM3#

 1
73210-8920506

LN130,VZN130,YN130..2D

BROWN,TRIM4#

 1
73210-8920502

LN130,VZN130,YN130..2D

RED,TRIM3#

 1
73210-8920503

LN130,VZN130,YN130..2D

GRAY,TRIM1#

 1
73210-8920504

LN130,VZN130,YN130..2D

BLUE,TRIM8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-8914702

LN130,YN130..2D

RED,TRIM3#

 1
73220-8914706

LN130,YN130..2D

BROWN,TRIM4#

 1
73220-8915402

LN130,VZN130,YN130..2D

RED,TRIM3#

 1
73220-8914703

LN130,YN130..2D

GRAY,TRIM1#

 1
73220-8915406

LN130,VZN130,YN130..2D

BROWN,TRIM4#

 1
73220-8915404

LN130,VZN130,YN130..2D

BLUE,TRIM8#

 1
73220-8915403

LN130,VZN130,YN130..2D

GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-8917403

LN10#,13#,VZN130,YN10#,130..SR,SSR

GRAY,TRIM1#

 1
73230-8917402

LN130,VZN130,YN130

RED,TRIM3#

 1
73230-8917406

LN130,VZN130,YN130

BROWN,TRIM4#

 1
73230-8917404

LN10#,13#,VZN130,YN10#,130..SR,SSR

BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-8917406

LN130,VZN130,YN130

BROWN,TRIM4#

 1
73230-8917403

LN10#,13#,VZN130,YN10#,130..SR,SSR

GRAY,TRIM1#

 1
73230-8917404

LN10#,13#,VZN130,YN10#,130..SR,SSR

BLUE,TRIM8#

 1
73230-8917402

LN130,VZN130,YN130

RED,TRIM3#

 1
