YN130G-GJMGE (1989)

Toyota Hilux

Production Apr 1989 - Aug 1991
Engine 3YE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809-9408)3Y ; (9408- )3YE..YN107

Click highlighted areas on diagram

diagram 17400 17400A 17400B 17400B 17410 17410A 17410B 17410B 17410C 17410E 17430 17430A 17430D 17430D 17430J 17430J 17430S 17430T 17430V 17451 17451 18435 18448 9010510090 9010510388 9010510388 9017908040 9046123043 9163160822 9165160820 9418040800
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-73030

3YE..YN130

 1
17400A - FLANGE, THERMOSENSER INLET
18491-28010

3VZE,3Y#..VZN130,YN10#,130,81,86

 1
17400B - RETAINER, EXHAUST PIPE
18495-38020

3YE..YN130

 1
17400B - RETAINER, EXHAUST PIPE
18495-38020

3YE..YN130

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35551

3YE..YN130

 1
17410-35550

3YE..YN130..5F

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 3
17410B - GASKET, EXHAUST PIPE
90917-06038

2Y,3Y#..YN10#,130,8#

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

2Y,3Y#..YN10#,130,8#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-73040

3Y#..YN10#,130

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04030

3Y#..YN10#,130

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-3D280

3YE..YN130

 1
17430-3D081

3YE..YN130

 1
17430-3D080

3YE..YN130

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1KZTE,2LT#,2L,3L,3VZE,2Y,3Y#..KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1KZTE,2LT#,2L,3L,3VZE,2Y,3Y#..KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17585-71010

2LT#,2L,3L,2Y,3Y#..LN10#,112,13#,8#,YN10#,130,8#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-35030

2LT#,3L,3VZE,3Y#..LN10#,112,13#,VZN130,YN10#,130

 1
17451 - GASKET, EXHAUST PIPE
90917-06047

3VZE,3Y#..VZN130,YN10#,130

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
90917-06047

3VZE,3Y#..VZN130,YN10#,130

ﾘﾔ

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-35020

3YE..YN130

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-35020

3YE..YN130

 2
Common parts
90105-10090
90105-10388
90179-08040
90461-23043
91631-60822
91651-60820
94180-40800

(8904-9108)3YE

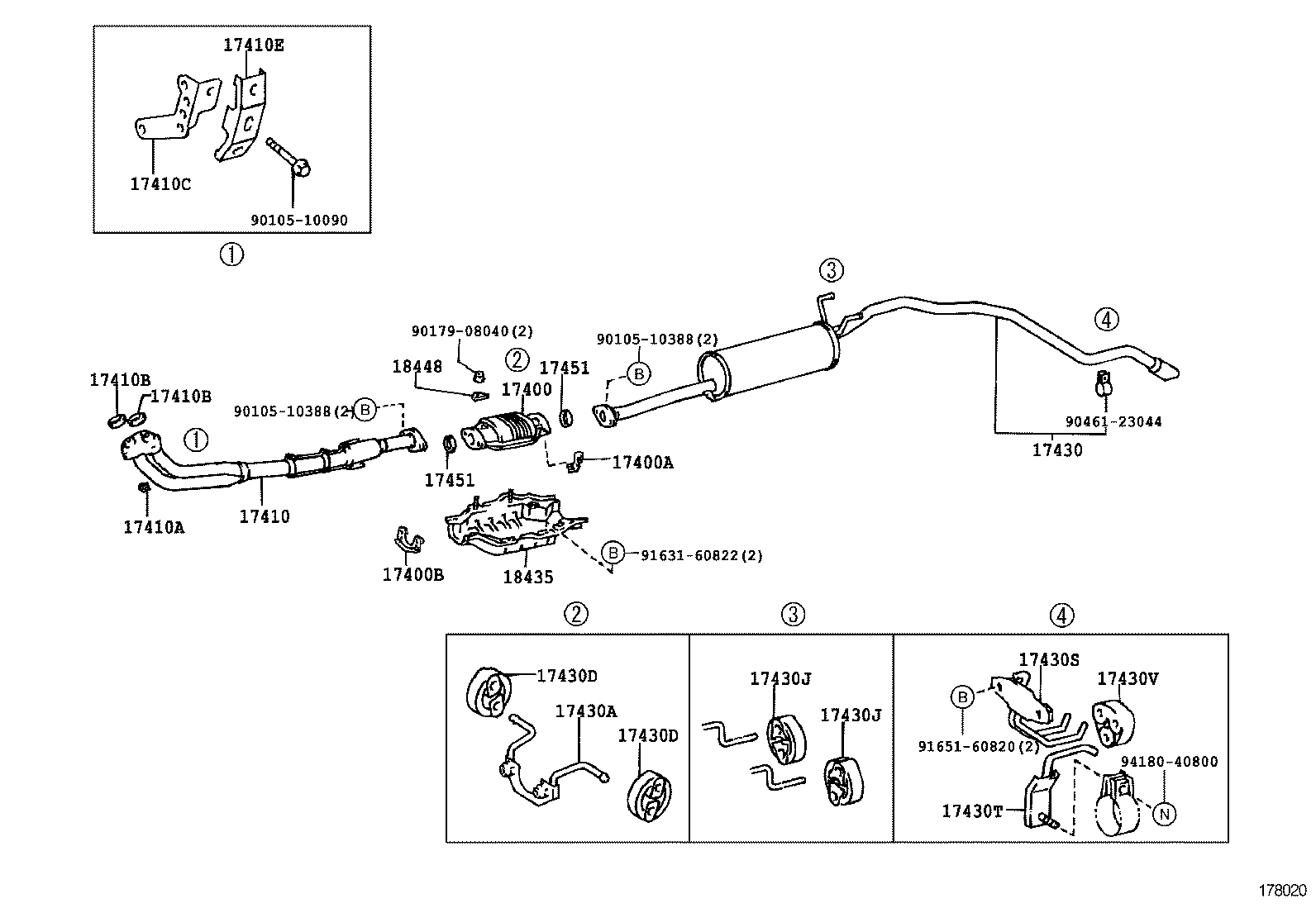

Click highlighted areas on diagram

diagram 17400 17400A 17400B 17410 17410A 17410B 17410B 17410C 17410E 17430 17430A 17430D 17430D 17430J 17430J 17430S 17430T 17430V 17451 17451 18435 18448 9010510090 9010510388 9010510388 9017908040 9046123044 9163160822 9165160820 9418040800
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-73030

3YE..YN130

 1
17400A - FLANGE, THERMOSENSER INLET
18491-28010

3VZE,3Y#..VZN130,YN10#,130,81,86

 1
17400B - RETAINER, EXHAUST PIPE
18495-38020

3YE..YN130

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-35551

3YE..YN130

 1
17410-35550

3YE..YN130..5F

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 3
17410B - GASKET, EXHAUST PIPE
90917-06038

2Y,3Y#..YN10#,130,8#

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

2Y,3Y#..YN10#,130,8#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-73040

3Y#..YN10#,130

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04030

3Y#..YN10#,130

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-3D280

3YE..YN130

 1
17430-3D081

3YE..YN130

 1
17430-3D080

3YE..YN130

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1KZTE,2LT#,2L,3L,3VZE,2Y,3Y#..KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1KZTE,2LT#,2L,3L,3VZE,2Y,3Y#..KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17585-71010

2LT#,2L,3L,2Y,3Y#..LN10#,112,13#,8#,YN10#,130,8#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-35030

2LT#,3L,3VZE,3Y#..LN10#,112,13#,VZN130,YN10#,130

 1
17451 - GASKET, EXHAUST PIPE
90917-06047

3VZE,3Y#..VZN130,YN10#,130

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
90917-06047

3VZE,3Y#..VZN130,YN10#,130

ﾘﾔ

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-35020

3YE..YN130

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-35020

3YE..YN130

 2
Common parts
90105-10090
90105-10388
90179-08040
90461-23044
91631-60822
91651-60820
94180-40800
