YN130G-GJMGE (1989)

Toyota Hilux

Production Apr 1989 - Aug 1991
Engine 3YE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8904- )3YE

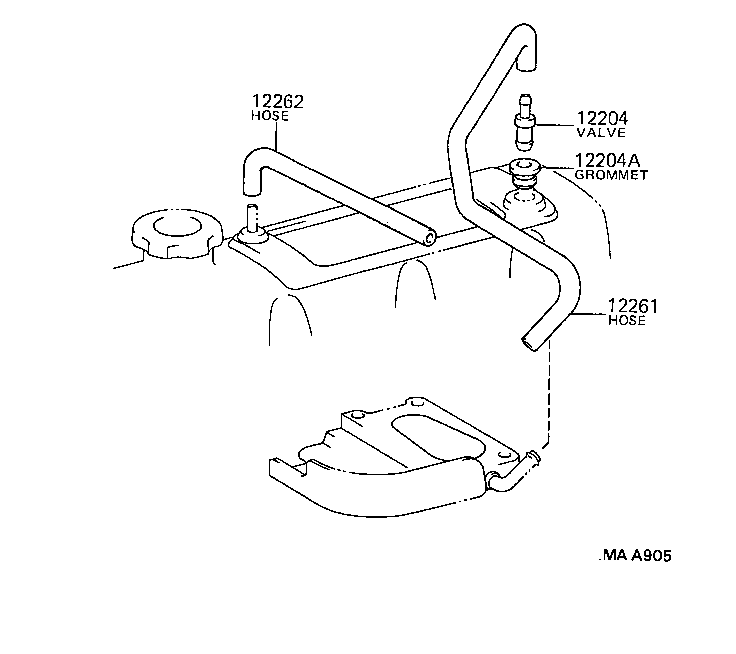

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-15022

2Y,3Y#..YN10#,130,8#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

2Y..YN85;2Y,3Y#..YN10#,130,80..SDX,SR,SSR,STD

 1
90480-18008

2Y,3Y#..YN10#,130,8#

 1
12261 - HOSE, VENTILATION
12261-73021

3YE..YN107,130,81,86

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15006

3YE..YN107,130,81,86

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15006

3YE..YN107,130,81,86

 2
12262 - HOSE, VENTILATION, NO.2
12262-73010

3YE..YN107,130,81,86

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15006

3YE..YN107,130,81,86

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-15006

3YE..YN107,130,81,86

 2

(8809-9408)2Y,3Y

Click highlighted areas on diagram

diagram 12204 12204A 12261 12262
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-15022

2Y,3Y#..YN10#,130,8#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

2Y..YN85;2Y,3Y#..YN10#,130,80..SDX,SR,SSR,STD

 1
90480-18008

2Y,3Y#..YN10#,130,8#

 1
12261 - HOSE, VENTILATION
12261-73021

3YE..YN107,130,81,86

 1
12262 - HOSE, VENTILATION, NO.2
12262-73010

3YE..YN107,130,81,86

 1
