YN107-PRMSS (1991)

Toyota Hilux

Production Aug 1991 - Aug 1994
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809-9408)3Y ; (9408- )3YE..YN107

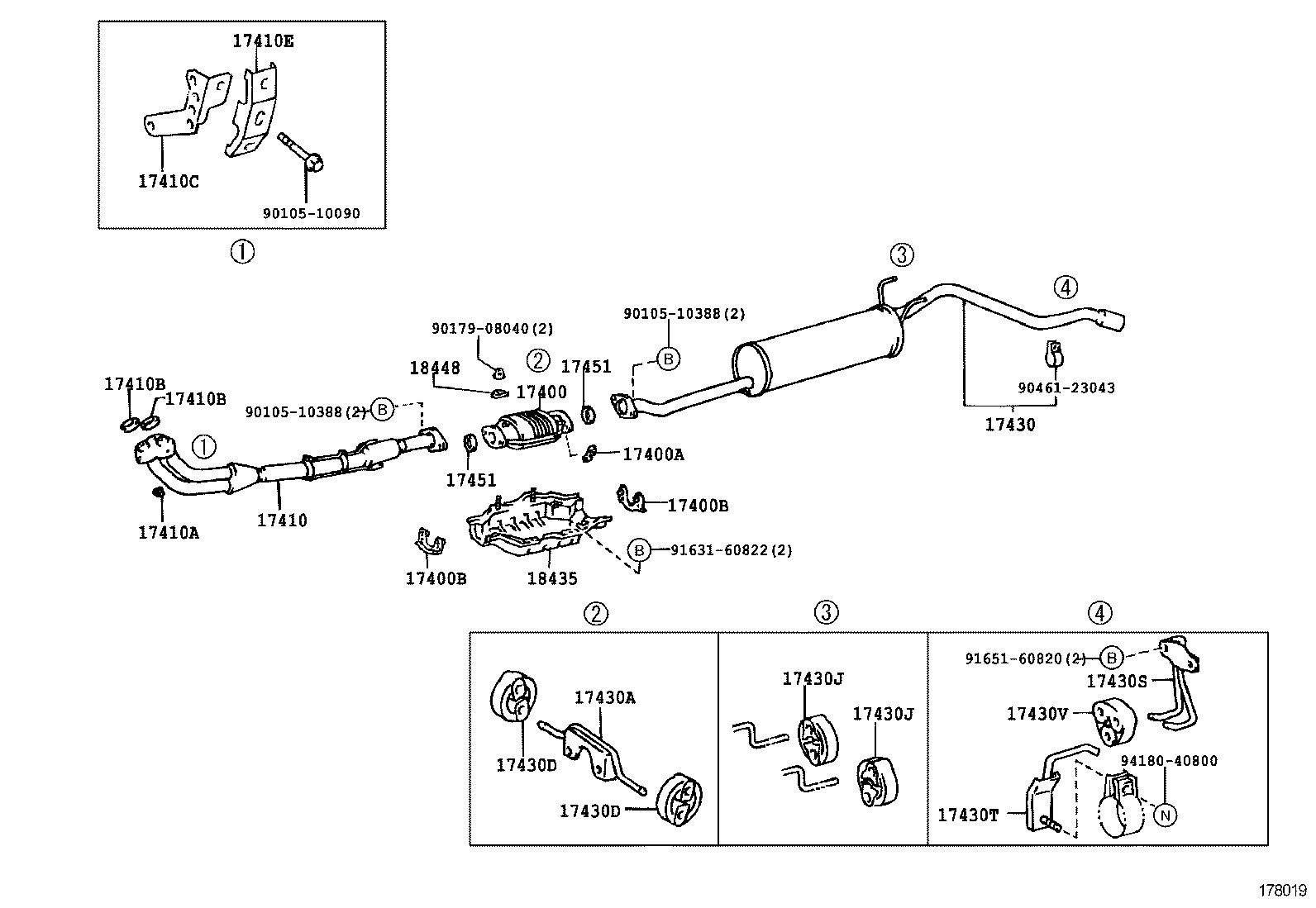

Click highlighted areas on diagram

diagram 17400 17400A 17400B 17400B 17410 17410A 17410B 17410B 17410C 17410E 17430 17430A 17430D 17430D 17430J 17430J 17430S 17430T 17430V 17451 17451 18435 18448 9010510090 9010510388 9010510388 9017908040 9046123043 9163160822 9165160820 9418040800
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-15060

3Y..YN10#

 1
18450-73160

3Y..YN10#

 1
17400A - FLANGE, THERMOSENSER INLET
18491-28010

3VZE,3Y#..VZN130,YN10#,130,81,86

 1
17400B - RETAINER, EXHAUST PIPE
18495-35010

3Y#..YN10#,81,86

ﾌﾛﾝﾄ

 1
18495-38020

3Y..YN10#

ﾘﾔ

 1
17400B - RETAINER, EXHAUST PIPE
18495-35010

3Y#..YN10#,81,86

ﾌﾛﾝﾄ

 1
18495-38020

3Y..YN10#

ﾘﾔ

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-73530

3Y..YN107

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 3
17410B - GASKET, EXHAUST PIPE
90917-06038

2Y,3Y#..YN10#,130,8#

 2
17410B - GASKET, EXHAUST PIPE
90917-06038

2Y,3Y#..YN10#,130,8#

 2
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-73040

3Y#..YN10#,130

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04030

3Y#..YN10#,130

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-73230

3Y..YN107

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17503-35140

3Y#..YN107

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1KZTE,2LT#,2L,3L,3VZE,2Y,3Y#..KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
17563-35020

1KZTE,2LT#,2L,3L,3VZE,2Y,3Y#..KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430J - BOLT OR RING, EXHAUST TAIL PIPE(FOR CENTER)
17565-35010

2LT#,2L,3L,3VZE,2Y,3Y#..LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17575-54020

2LTE,3L,3Y#..LN10#,112,YN10#

 1
17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR)
17585-71010

2LT#,2L,3L,2Y,3Y#..LN10#,112,13#,8#,YN10#,130,8#

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
17566-35030

2LT#,3L,3VZE,3Y#..LN10#,112,13#,VZN130,YN10#,130

 1
17451 - GASKET, EXHAUST PIPE
90917-06047

3VZE,3Y#..VZN130,YN10#,130

ﾘﾔ

 1
90917-06047

3Y..YN10#

 2
90917-06045

2L#,3L,2Y,3Y..LN10#,13#,8#,YN10#,8#

 1
90917-06045

3Y#..YN10#,81,86

 2
17451 - GASKET, EXHAUST PIPE
90917-06047

3VZE,3Y#..VZN130,YN10#,130

ﾘﾔ

 1
90917-06047

3Y..YN10#

 2
90917-06045

2L#,3L,2Y,3Y..LN10#,13#,8#,YN10#,8#

 1
90917-06045

3Y#..YN10#,81,86

 2
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-35010

3Y#..YN10#,81,86

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18439-35010

3Y#..YN10#,81,86

 2
Common parts
90105-10090
90105-10388
90179-08040
90461-23043
91631-60822
91651-60820
94180-40800
