YN107-PRMGS (1993)

Toyota Hilux

Production Aug 1993 - Aug 1994
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809-9408)2Y,3Y

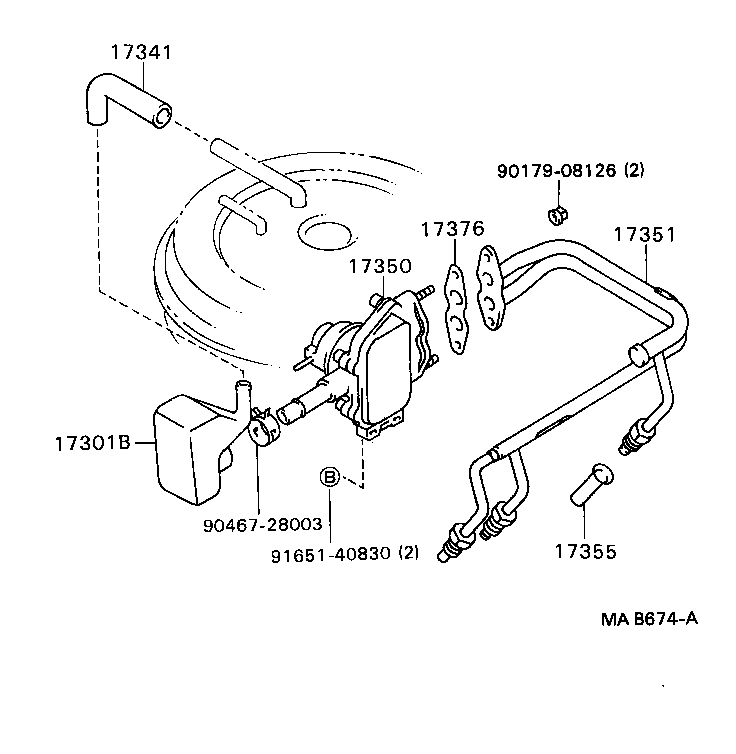

Click highlighted areas on diagram

diagram 17301B 17341 17350 17351 17355 17376 9017908126 9046728003 9165140830
Part # Description Qty Price
17301B - SILENCER SUB-ASSY, AIR SUCTION
17301-72010

2Y,3Y..YN10#,8#

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-72050

2Y,3Y..YN10#,8#

 1
17350 - VALVE ASSY, REED
17350-72020

2Y,3Y..YN10#,8#

 1
17351 - MANIFOLD, AIR INJECTION
17306-73011

2Y,3Y..YN10#,8#

 1
17355 - NOZZLE, AIR INJECTION
17355-71010

2Y,3Y..YN10#,8#

 3
17376 - GASKET, AIR TUBE, NO.1
17376-71010

2Y,3Y..YN10#,8#

 1
Common parts
90179-08126
90467-28003
91651-40830
