YN107-PRMGS (1993)

Toyota Hilux

Production Aug 1993 - Aug 1994
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809-9408)2Y,3Y

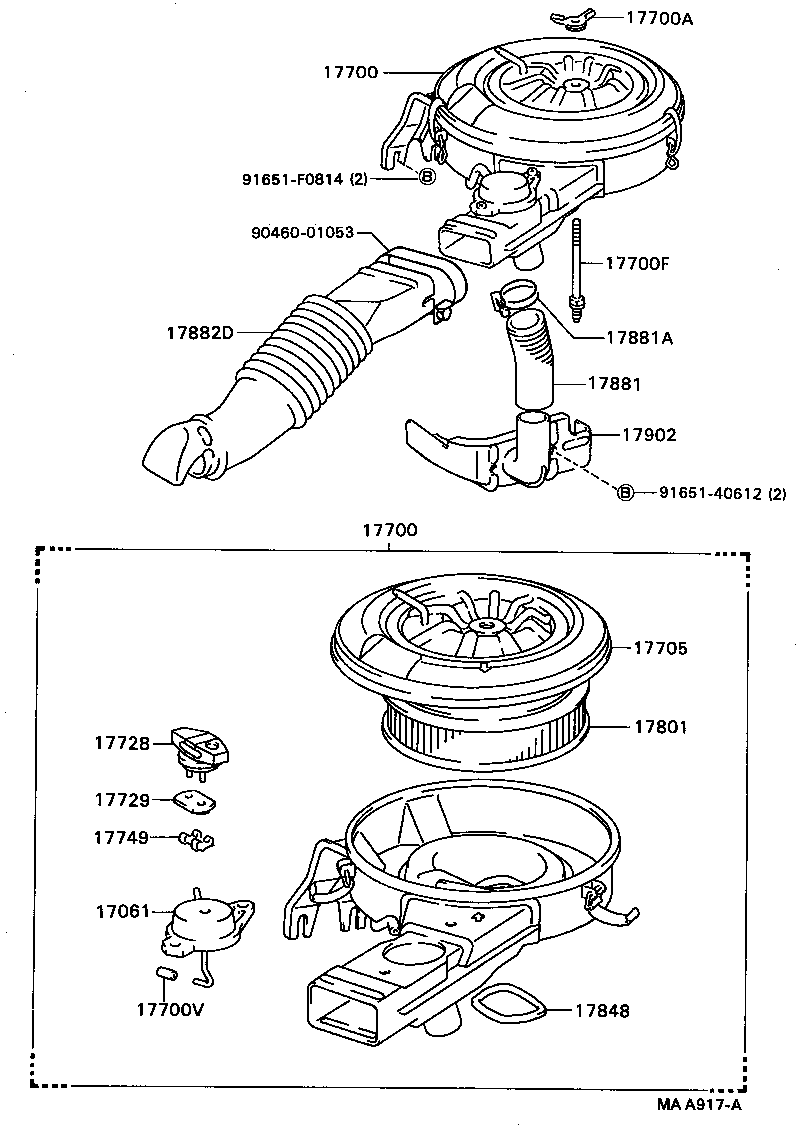

Click highlighted areas on diagram

diagram 17061 17700 17700 17700A 17700F 17700V 17705 17728 17729 17749 17801 17848 17881 17881A 17882D 17902 9046001053 9165140612 91651F0814
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-72010

2Y,3Y..YN10#,8#

 1
17700 - CLEANER ASSY, AIR
17700-72160

2Y,3Y..YN10#,8#

 1
17700 - CLEANER ASSY, AIR
17700-72160

2Y,3Y..YN10#,8#

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2Y..YN85;2Y,3Y..YN10#,80..SDX,SR,STD

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06024

2Y,3Y..YN10#,8#

 1
17700V - BUSH(FOR AIR CLEANER)
90386-03001

2Y,3Y..YN10#,8#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-72080

2Y,3Y..YN10#,8#

 1
17728 - VALVE, THERMOSTATIC
17728-34010

2Y,3Y..YN10#,8#

 1
17729 - GASKET, THERMOSTAT VALVE
17729-34010

2Y,3Y..YN10#,8#

 1
17749 - SUPPORT, THERMOSTAT VALVE
17749-34010

2Y,3Y..YN10#,8#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-34060

2Y,3Y..YN10#,8#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

2Y,3Y..YN10#,8#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-16210

2Y,3Y..YN10#,8#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10460

2Y,3Y..YN10#,8#

 1
17882D - HOSE, COOL AIR INTAKE
17882-89109

2Y,3Y..YN10#,8#

 1
17902 - INLET SUB-ASSY, HOT AIR INTAKE, NO.1
17895-71010

2Y,3Y..YN10#,8#

 1
Common parts
90460-01053
91651-40612
91651-F0814
