YN105-PRMSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1991
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )YN10#,130

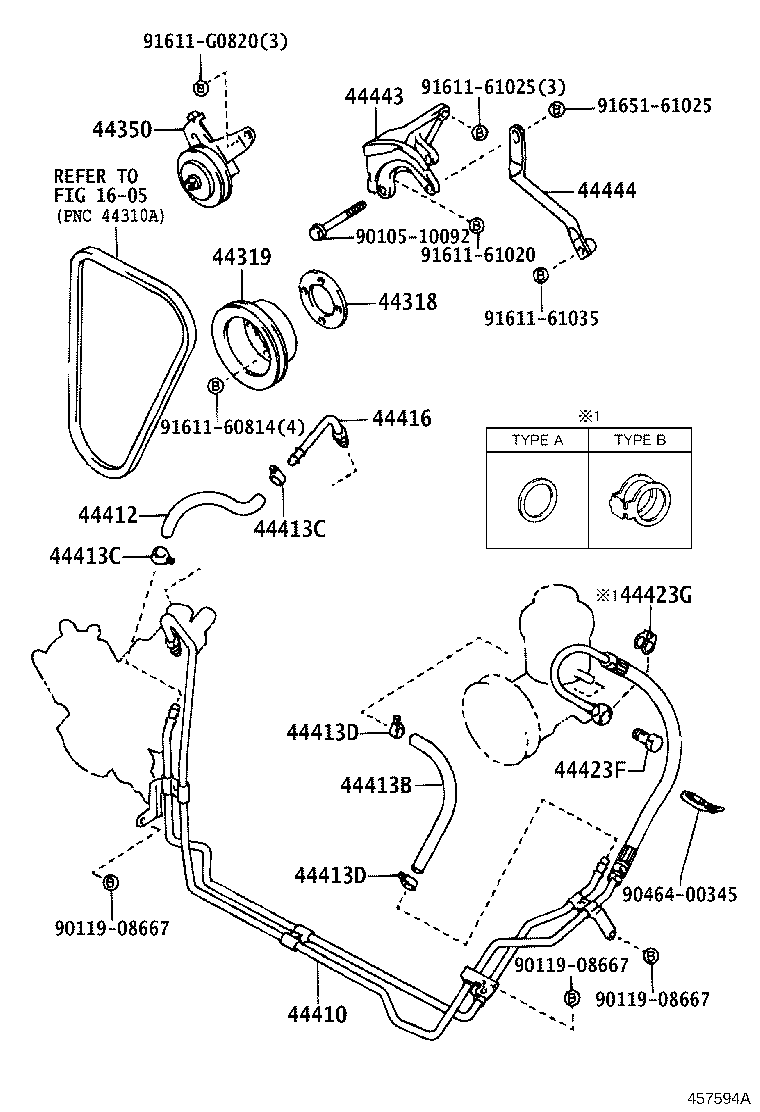

Click highlighted areas on diagram

diagram 1605 44318 44319 44350 44410 44412 44413B 44413C 44413C 44413D 44413D 44416 44423F 44423G 44443 44444 9010510092 9011908667 9011908667 9011908667 9046400345 9161160814 9161161020 9161161025 9161161035 91611G0820 9165161025
Part # Description Qty Price
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-28012

YN10#,130

 1
44318-28012

YN10#,130,8#

 1
44319 - PULLEY, VANE PUMP DRIVE
44319-28013

YN10#,130

 1
44319-28013

YN10#,130,8#

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-28011

YN10#,130,8#

 1
44350-28011

YN10#,130

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-35180

YN100,105

 1
44412 - HOSE, RETURN
44412-35080

YN100,105

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90447-18033

YN10#,130

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

LN10#,13#,YN10#,130

 2
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

LN10#,13#,YN10#,130

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

LN10#,13#,YN10#,130

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

LN10#,13#,YN10#,130

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-35090

LN100,106,YN100,105

 1
44423F - BOLT, UNION
90401-16008

YN10#,130

 1
44423G - GASKET, UNION BOLT
90430-16242

YN10#,130

TYPE A:ｲﾗｽﾄ参照

 2
44443 - BRACKET, PUMP
44443-28021

YN10#,130,81,86

 1
44444 - STAY, PUMP, REAR
44444-27010

YN10#,130

 1
44444-27010

YN10#,130,8#

 1
Common parts
90105-10092
90119-08667
90464-00345
91611-60814
91611-61020
91611-61025
91611-61035
91611-G0820
91651-61025
Linked diagrams
1605
