Toyota Hilux YN100 RADIATOR GRILLE

YN100-TRMSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994

Engine 3Y

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

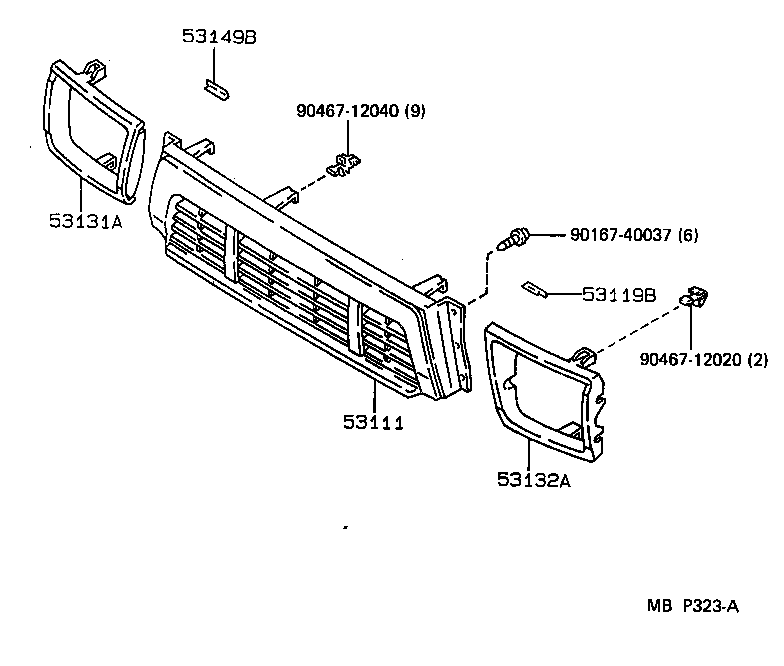

(8809-9108)LN10#,YN10#

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-89138	LN10#,YN10#..SR ﾒｯｷ	09/1988 - 08/1991	1
53111-89137	LN10#,YN10# 塗装不要	09/1988 - 08/1991	1
53111-35151	LN10#,YN10#..SR ﾒｯｷ	02/1994 - 08/1994	1
53111-35150	LN10#,YN10#..SR ﾒｯｷ	08/1991 - 02/1994	1
53111-35140	LN10#,YN10#..SR 塗装不要	08/1991 - 08/1994	1
53119B - PROTECTOR, RADIATOR GRILLE
53119-89105	LN10#,13#,8#,VZN130,YN10#,130,8#	09/1988 - 08/1991	1
53131A - DOOR, HEADLAMP, RH
53131-89119	LN10#,131,YN10#..SR ﾒﾂｷ & ﾀﾞ-ｸｼﾙﾊﾞ- ﾒﾀﾘﾂｸ	09/1988 - 08/1991	1
53131-89121	LN10#,YN10#..SR ﾒﾂｷ	09/1988 - 08/1991	1
53131-35060	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾒﾂｷ, ｿﾄｶﾞﾜ=ｸﾞﾚ- ﾄｿｳ	08/1991 - 08/1994	1
53131-35070	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾌﾞﾗﾂｸﾄｿｳ, ｿﾄｶﾞﾜ=ﾒﾂｷ	08/1991 - 02/1994	1
53131-35071	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾌﾞﾗﾂｸﾄｿｳ, ｿﾄｶﾞﾜ=ﾒﾂｷ	02/1994 - 08/1994	1
53132A - DOOR, HEADLAMP, LH
53132-89120	LN10#,YN10#..SR ﾒﾂｷ	09/1988 - 08/1991	1
53132-89118	LN10#,131,YN10#..SR ﾒﾂｷ & ﾀﾞ-ｸｼﾙﾊﾞ- ﾒﾀﾘﾂｸ	09/1988 - 08/1991	1
53132-35071	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾌﾞﾗﾂｸﾄｿｳ, ｿﾄｶﾞﾜ=ﾒﾂｷ	02/1994 - 08/1994	1
53132-35060	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾒﾂｷ, ｿﾄｶﾞﾜ=ｸﾞﾚ- ﾄｿｳ	08/1991 - 08/1994	1
53132-35070	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾌﾞﾗﾂｸﾄｿｳ, ｿﾄｶﾞﾜ=ﾒﾂｷ	08/1991 - 02/1994	1
53149B - PROTECTOR, HEADLAMP DOOR, NO.3
53149-89101	LN10#,13#,8#,VZN130,YN10#,130,8#	09/1988 - 08/1991	1
Common parts
90167-40037
90467-12020
90467-12040

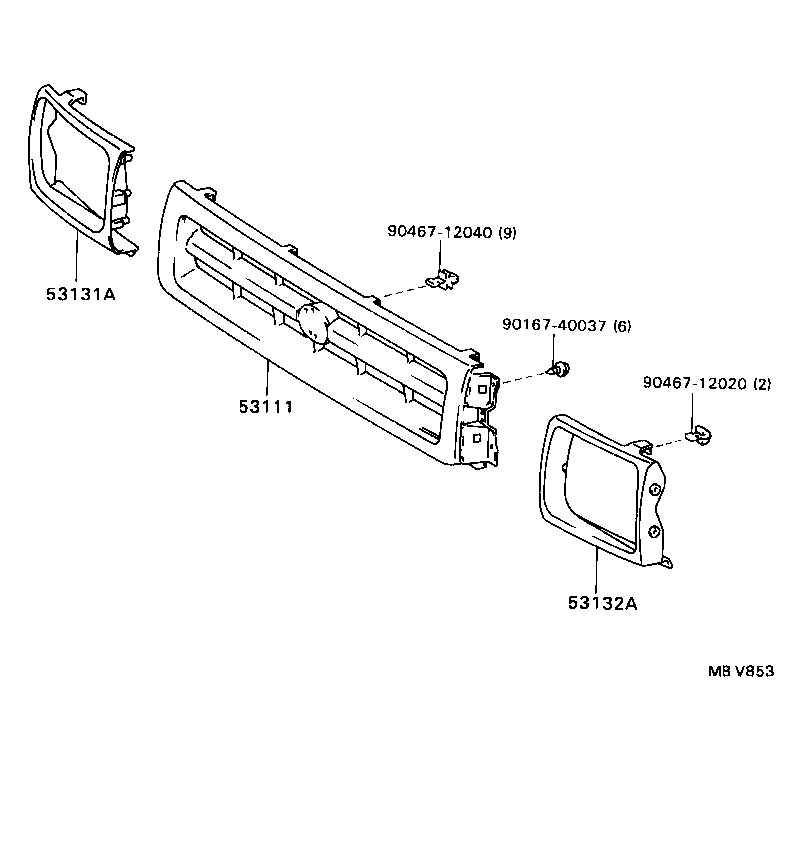

(9108- )LN10#,112,YN10#

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-89138	LN10#,YN10#..SR ﾒｯｷ	09/1988 - 08/1991	1
53111-89137	LN10#,YN10# 塗装不要	09/1988 - 08/1991	1
53111-35151	LN10#,YN10#..SR ﾒｯｷ	02/1994 - 08/1994	1
53111-35150	LN10#,YN10#..SR ﾒｯｷ	08/1991 - 02/1994	1
53111-35140	LN10#,YN10#..SR 塗装不要	08/1991 - 08/1994	1
53131A - DOOR, HEADLAMP, RH
53131-89119	LN10#,131,YN10#..SR ﾒﾂｷ & ﾀﾞ-ｸｼﾙﾊﾞ- ﾒﾀﾘﾂｸ	09/1988 - 08/1991	1
53131-89121	LN10#,YN10#..SR ﾒﾂｷ	09/1988 - 08/1991	1
53131-35060	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾒﾂｷ, ｿﾄｶﾞﾜ=ｸﾞﾚ- ﾄｿｳ	08/1991 - 08/1994	1
53131-35070	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾌﾞﾗﾂｸﾄｿｳ, ｿﾄｶﾞﾜ=ﾒﾂｷ	08/1991 - 02/1994	1
53131-35071	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾌﾞﾗﾂｸﾄｿｳ, ｿﾄｶﾞﾜ=ﾒﾂｷ	02/1994 - 08/1994	1
53132A - DOOR, HEADLAMP, LH
53132-89120	LN10#,YN10#..SR ﾒﾂｷ	09/1988 - 08/1991	1
53132-89118	LN10#,131,YN10#..SR ﾒﾂｷ & ﾀﾞ-ｸｼﾙﾊﾞ- ﾒﾀﾘﾂｸ	09/1988 - 08/1991	1
53132-35071	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾌﾞﾗﾂｸﾄｿｳ, ｿﾄｶﾞﾜ=ﾒﾂｷ	02/1994 - 08/1994	1
53132-35060	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾒﾂｷ, ｿﾄｶﾞﾜ=ｸﾞﾚ- ﾄｿｳ	08/1991 - 08/1994	1
53132-35070	LN10#,YN10#..SR ｳﾁｶﾞﾜ=ﾌﾞﾗﾂｸﾄｿｳ, ｿﾄｶﾞﾜ=ﾒﾂｷ	08/1991 - 02/1994	1
Common parts
90167-40037
90467-12020
90467-12040

YN100-TRMSS (1988)

(8809-9108)LN10#,YN10#

(9108- )LN10#,112,YN10#
