YN100-TRMSS (1988)
Toyota Hilux

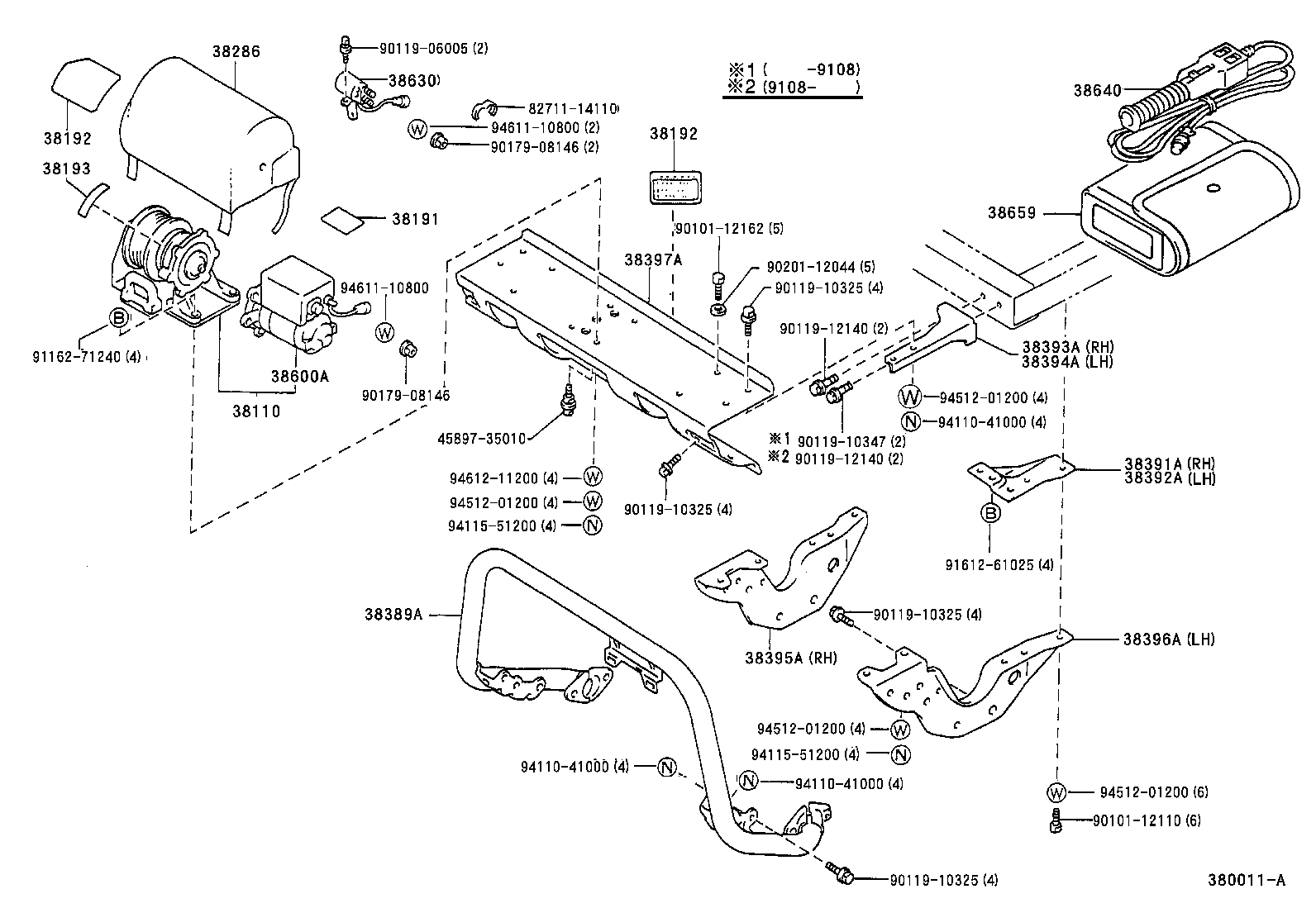

ILLUST NO. 1 OF 3(8809-9408)LN100,YN100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110 - WINCH ASSY | ||||
| 38110-35020 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38191 - PLATE, WINCH CAUTION, NO.1 | ||||
| 38191-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38192 - PLATE, WINCH CAUTION, NO.2 | ||||
| 74594-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38192 - PLATE, WINCH CAUTION, NO.2 | ||||
| 74594-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38193 - PLATE, WINCH CAUTION, NO.3 | ||||
| 38193-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38286 - COVER, WINCH | ||||
| 38286-35020 |
LN100,YN100 |
1 | ||
| 38389A - BUMPER, WINCH LOWER GUARD | ||||
| 38389-35060 |
LN100,YN100 |
1 | ||
| 38389-35030 |
LN100,YN100 |
1 | ||
| 38391A - GUSSET, NO.1 CROSSMEMBER, RH | ||||
| 38391-35011 |
LN100,YN100 |
1 | ||
| 38392A - GUSSET, NO.1 CROSSMEMBER, LH | ||||
| 38392-35011 |
LN100,YN100 |
1 | ||
| 38393A - BAR, WINCH SIDE STRUT, RH | ||||
| 38393-35050 |
LN100,YN100 |
1 | ||
| 38393-35030 |
LN100,YN100 |
1 | ||
| 38394A - BAR, WINCH SIDE STRUT, LH | ||||
| 38394-35050 |
LN100,YN100 |
1 | ||
| 38394-35030 |
LN100,YN100 |
1 | ||
| 38395A - STAY, WINCH LOWER, RH | ||||
| 38395-35030 |
LN100,YN100 |
1 | ||
| 38396A - STAY, WINCH LOWER, LH | ||||
| 38396-35030 |
LN100,YN100 |
1 | ||
| 38397A - BASE, WINCH UPPER | ||||
| 38397-35020 |
LN100,13#,YN100,130 |
1 | ||
| 38397-35030 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38630 - SWITCH ASSY, MAGNET, NO.1 | ||||
| 38630-35030 |
LN100,13#,YN100,130 |
1 | ||
| 38630-35031 |
LN100,13#,YN100 |
1 | ||
| 38640 - SWITCH ASSY, WINCH CONTROL | ||||
| 38640-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38659 - COVER, WINCH CONTROL SWITCH | ||||
| 38659-60010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| Common parts | ||||
| 45897-35010 | ||||
| 82711-14110 | ||||
| 90101-12110 | ||||
| 90101-12162 | ||||
| 90119-06005 | ||||
| 90119-10325 | ||||
| 90119-10347 | ||||
| 90119-12140 | ||||
| 90179-08146 | ||||
| 90201-12044 | ||||
| 91162-71240 | ||||
| 91612-61025 | ||||
| 94110-41000 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 94611-10800 | ||||
| 94612-11200 | ||||
ILLUST NO. 2 OF 3(8809-9511)LN100,13#,VZN130,YN100,130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38101E - PLUG (FOR WINCH GEAR CASE) | ||||
| 90344-52003 |
LN100,13#,VZN130,YN100,130 |
2 | ||
| 38101E - PLUG (FOR WINCH GEAR CASE) | ||||
| 90344-52003 |
LN100,13#,VZN130,YN100,130 |
2 | ||
| 38103 - DRUM SUB-ASSY, WINCH | ||||
| 38103-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38107 - GEAR SUB-ASSY, WINCH PLANETARY, NO.1 | ||||
| 38107-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38108 - GEAR SUB-ASSY, WINCH PLANETARY, NO.2 | ||||
| 38108-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38109 - GEAR SUB-ASSY, WINCH PLANETARY, NO.3 | ||||
| 38109-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38123A - SHIM, WINCH WORM ADJUST, NO.1 | ||||
| 38123-35010 |
LN100,13#,VZN130,YN100,130 厚さ=0.5 |
1 | ||
| 38124 - SHIM, WINCH WORM ADJUST, NO.2 | ||||
| 38124-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38151 - SPACER, WINCH DRUM, NO.1 | ||||
| 38151-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38161 - GEAR, WINCH PLANETARY SUN | ||||
| 38161-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38172 - GEAR, WINCH RING | ||||
| 38172-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38174 - PLATE, WINCH GEAR CASE | ||||
| 38174-35020 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38177 - BOLT, WINCH SET | ||||
| 38177-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38178 - BUSH, DRUM THRUST | ||||
| 38178-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38188 - SEAL, WINCH DRUM OIL | ||||
| 38188-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38189 - PLATE, CAUTION, NO.4 | ||||
| 38189-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38201 - LEVER SUB-ASSY, WINCH CLUTCH | ||||
| 38201-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38212 - GUIDE, INNER DISC | ||||
| 38212-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38216 - CLUTCH, WINCH 1 WAY | ||||
| 38216-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38216A - RING, SNAP (FOR 1 WAY CLUTCH) | ||||
| 96151-03700 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38233 - PLATE, BRAKE | ||||
| 38233-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38238 - BUSH, THRUST, NO.1 | ||||
| 38238-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38340 - WIRE ASSY, WINCH CHAIN | ||||
| 38340-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38344 - GUIDE, WINCH WIRE | ||||
| 38344-35020 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| Common parts | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||

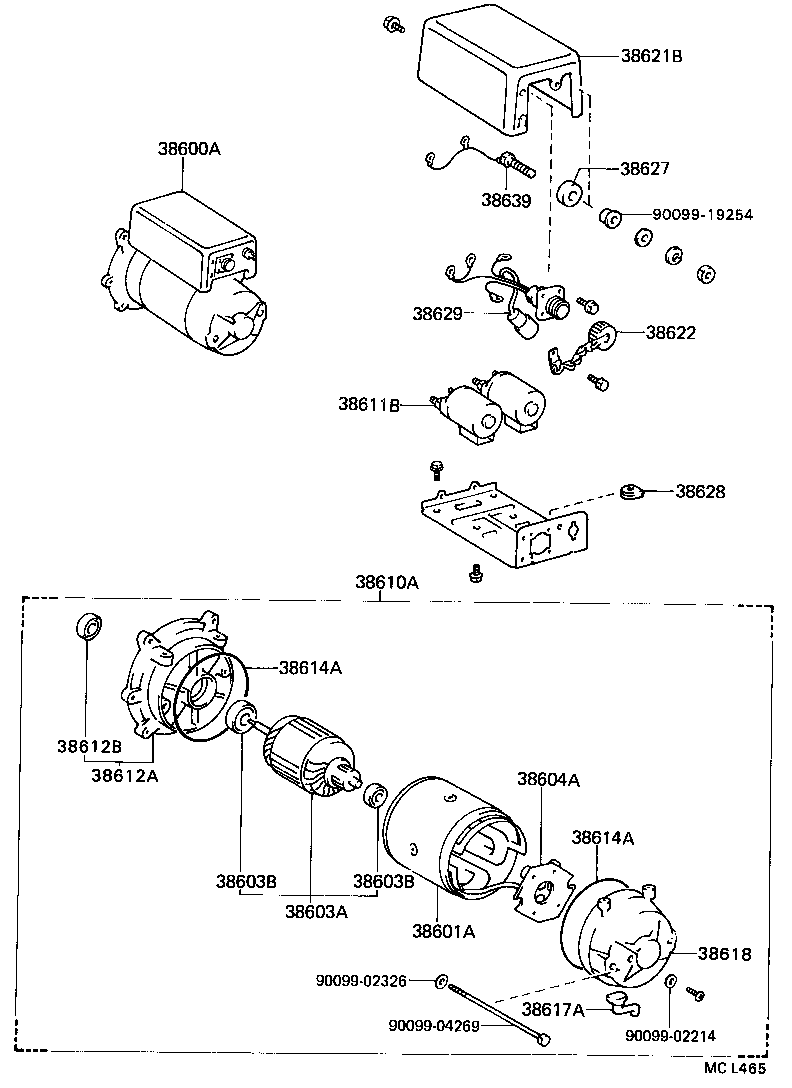

ILLUST NO. 3 OF 3(8809-9511)LN100,13#,VZN130,YN100,130
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38601A - YOKE SUB-ASSY, WINCH MOTOR | ||||
| 38601-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38603A - ARMATURE SUB-ASSY, WINCH MOTOR | ||||
| 38603-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38603B - BEARING, NO.1 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10153 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 90099-10153 |
LN100,YN100 |
1 | ||
| 90099-10116 |
LN100,13#,VZN130,YN100,130 OD=32 |
1 | ||
| 38603B - BEARING, NO.1 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10153 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 90099-10153 |
LN100,YN100 |
1 | ||
| 90099-10116 |
LN100,13#,VZN130,YN100,130 OD=32 |
1 | ||
| 38604A - HOLDER ASSY, WINCH MOTOR BRUSH | ||||
| 38604-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38610A - MOTOR ASSY, WINCH | ||||
| 38610-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-35010 |
LN100,13#,VZN130,YN100,130 |
2 | ||
| 38612A - FRAME, WINCH MOTOR END | ||||
| 38612-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38612B - SEAL, OIL (FOR FRAME END) | ||||
| 90099-15033 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38614A - RING, O(FOR WINCH MOTOR) | ||||
| 90099-14077 |
LN100,13#,VZN130,YN100,130 |
2 | ||
| 38614A - RING, O(FOR WINCH MOTOR) | ||||
| 90099-14077 |
LN100,13#,VZN130,YN100,130 |
2 | ||
| 38617A - DUCT, COVER WINCH | ||||
| 38617-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38618 - FRAME, WINCH MOTOR COMMUTATOR END | ||||
| 38618-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38621B - COVER, MAGNET SWITCH WINCH | ||||
| 38621-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38622 - COVER, CONNECTOR WINCH | ||||
| 38622-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38627 - BUSHING, STEPPED MALE WINCH MOTOR | ||||
| 38627-60011 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38628 - GROMET, WINCH | ||||
| 38628-60010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38629 - WIRE, WINCH MOTOR | ||||
| 38629-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| 38639 - WIRE (FOR WINCH MOTOR) | ||||
| 38639-35010 |
LN100,13#,VZN130,YN100,130 |
1 | ||
| Common parts | ||||
| 90099-02214 | ||||
| 90099-02326 | ||||
| 90099-04269 | ||||
| 90099-19254 | ||||
