YN100-TRMSS (1988)

Toyota Hilux

Production Sep 1988 - Aug 1994
Engine 3Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8809- )2Y,3Y#

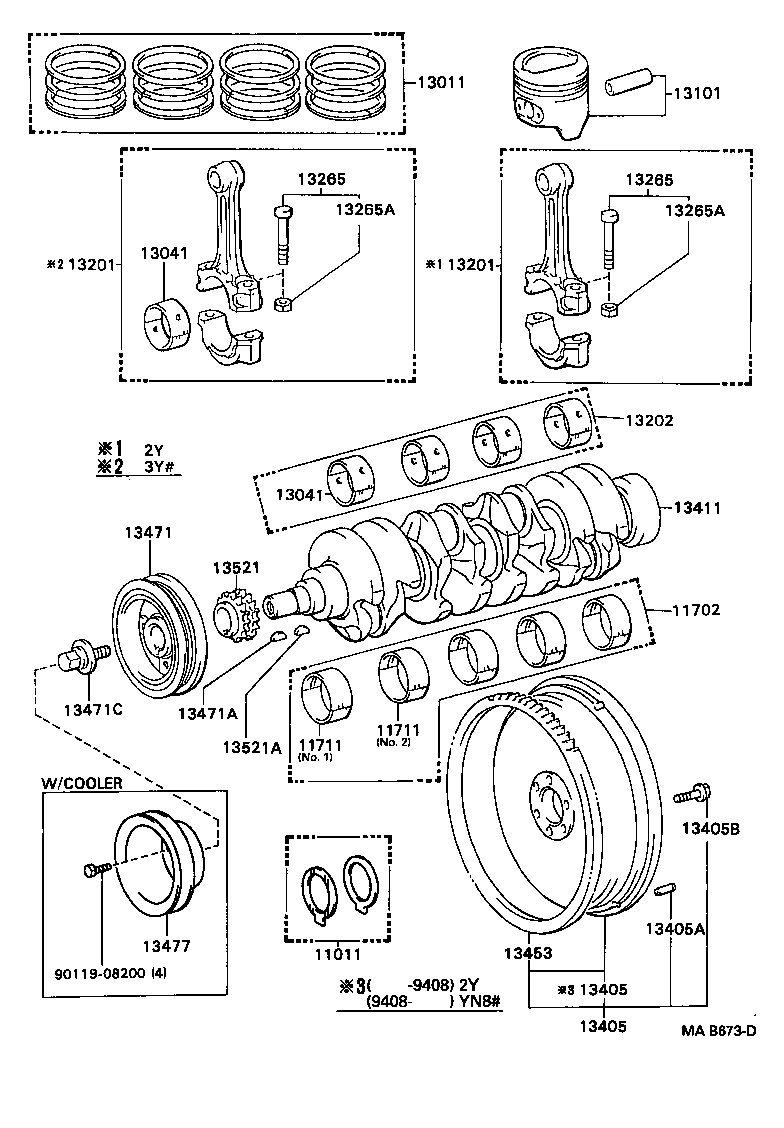

Click highlighted areas on diagram

diagram 11011 11702 11711 11711 13011 13041 13041 13101 13201 13201 13202 13265 13265 13265A 13265A 13405 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13477 13521 13521A 9011908200
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-25010

2Y,3Y#..YN10#,130,8#

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-71020

2Y,3Y#..YN10#,130,8#

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-7102003

2Y,3Y#..YN10#,130,8#

MARK 3,修理書参照

 5
11701-7102001

2Y,3Y#..YN10#,130,8#

MARK 1,修理書参照

 5
11701-7102002

2Y,3Y#..YN10#,130,8#

MARK 2,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-7102003

2Y,3Y#..YN10#,130,8#

MARK 3,修理書参照

 5
11701-7102001

2Y,3Y#..YN10#,130,8#

MARK 1,修理書参照

 5
11701-7102002

2Y,3Y#..YN10#,130,8#

MARK 2,修理書参照

 5
13011 - RING SET, PISTON
13011-71021

2Y,3Y#..YN10#,130,8#

STD

 1
13013-71021

2Y,3Y#..YN10#,130,8#

O/S 0.50

 1
13014-71021

2Y,3Y#..YN10#,130,8#

O/S 0.75

 1
13015-71021

2Y,3Y#..YN10#,130,8#

O/S 1.00

 1
13041 - BEARING, CONNECTING ROD
13041-7101106

2Y,3Y#..YN10#,130,8#

MARK 6

 4
13041-7101107

2Y,3Y#..YN10#,130,8#

MARK 7

 4
13041-7101108

2Y,3Y#..YN10#,130,8#

MARK 8

 4
13041 - BEARING, CONNECTING ROD
13041-7101106

2Y,3Y#..YN10#,130,8#

MARK 6

 4
13041-7101107

2Y,3Y#..YN10#,130,8#

MARK 7

 4
13041-7101108

2Y,3Y#..YN10#,130,8#

MARK 8

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-7301003

3Y#..YN10#,130,81,86

STD,MARK3

 4
13104-73010

3Y#..YN10#,130,81,86

O/S 0.75

 4
13101-7301002

3Y#..YN10#,130,81,86

STD,MARK2

 4
13101-7301001

3Y#..YN10#,130,81,86

STD,MARK1

 4
13105-73010

3Y#..YN10#,130,81,86

O/S 1.00

 4
13103-73010

3Y#..YN10#,130,81,86

O/S 0.50

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-79045

3Y#..YN10#,130,81,86

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-79045

3Y#..YN10#,130,81,86

 4
13202 - BEARING SET, CONNECTING ROD
13204-71011

2Y,3Y#..YN10#,130,8#

U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-29025

2Y,3Y#..YN10#,130,8#

 8
13265 - BOLT, CONNECTING ROD
13265-29025

2Y,3Y#..YN10#,130,8#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09001

2Y,3Y#..YN10#,130,8#

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09001

2Y,3Y#..YN10#,130,8#

 8
13405 - FLYWHEEL SUB-ASSY
13405-79065

3Y#..YN10#,130..5F

 1
13405 - FLYWHEEL SUB-ASSY
13405-79065

3Y#..YN10#,130..5F

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

2Y,3Y#..YN10#,130,8#..MTM

長さ=23,外径=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10042

2Y,3Y#..YN10#,130,8#..MTM

 6
13411 - CRANKSHAFT
13411-73010

3Y#..YN10#,130,81,86

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

2Y,3Y#..YN10#,130,8#..MTM

 1
13471 - PULLEY, CRANKSHAFT
13408-71010

2Y,3Y..YN10#,8#

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05005

2Y,3Y#..YN10#,8#

 1
90280-05010

2Y,3Y#..YN10#,130,8#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14069

2Y,3Y#..YN10#,130,8#

 1
90105-14013

2Y,3Y..YN10#,8#

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-20110

2Y,3Y#..YN10#,130,8#

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

2Y,3Y#..YN10#,130,8#

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05005

2Y,3Y#..YN10#,8#

 1
90280-05010

2Y,3Y#..YN10#,130,8#

 1
Common parts
90119-08200
