VZN130G-GKPQE (1991)

Toyota Hilux

Production Aug 1991 - Nov 1995
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )KZN130,LN13#,VZN130

Click highlighted areas on diagram

diagram 52011A 52012A 52111E 52145B 52211H 52211H 9011910608 9011910608 9017908063 9017908096 9017908096 9017908142 9018906173 9054008018
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-35050

KZN130,LN13#,VZN130

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-35050

KZN130,LN13#,VZN130

 1
52111E - BAR, FRONT BUMPER
52101-89114

LN100,130,VZN130,YN100,130

ﾒｯｷ

 1
52101-35180

KZN130,LN130,VZN130..SSRX

ﾒｯｷ

 1
52101-35190F0

KZN130,LN130,VZN130..SSRX

ﾂ-ﾄﾝ ﾎﾞﾃﾞ-ｶﾗ- ｼﾖｳ,BLUE GRAY M.,25T

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

LN100,13#,80,VZN130,YN100,130,80

 2
52145-89102

KZN130,LN10#,112,13#,80,81,VZN130,YN10#,80,81

 2
52211H - CUSHION(FOR FRONT BUMPER ARM)
52211-89101

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
52211H - CUSHION(FOR FRONT BUMPER ARM)
52211-89101

KZN130,LN10#,112,13#,8#,VZN130,YN10#,130,8#

 2
Common parts
90119-10608
90179-08063
90179-08096
90179-08142
90189-06173
90540-08018

(9108- )KZN130,LN109,112,130,VZN130

Click highlighted areas on diagram

ｱﾘ(ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ ｶﾞ-ﾄﾞ)

diagram 52406A 52407 52411 52417C 52418A 52433A 52433A 52436 52436 52437 52438 52441 52442 75111A 9011908898 9011910713 9011910713 9017606042 9017606042 9046709137 91651A0616 91651A0616
Part # Description Qty Price
52406A - GARNISH SUB-ASSY, FRONT BUMPER GUARD
52406-35010

KZN130,LN109,112,130,VZN130

 1
52407 - GUARD SUB-ASSY, FRONT BUMPER, NO.2
52407-35010

KZN130,LN109,112,130,VZN130

 1
52411 - GUARD, FRONT BUMPER
52401-35010

KZN130,LN109,112,130,VZN130

 1
52410-35020

KZN130,VZN130..SSRX

ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ ｱﾝﾀﾞ ｶﾞ-ﾄﾞ

 1
52417C - INSERT, FRONT BUMPER GUARD, LOWER RH
52417-35010

KZN130,LN109,112,130,VZN130

 1
52418A - INSERT, FRONT BUMPER GUARD, LOWER LH
52418-35010

KZN130,LN109,112,130,VZN130

 1
52433A - PLUG, FRONT BUMPER COVER HOLE
52433-35010

KZN130,LN130,VZN130

 2
52433A - PLUG, FRONT BUMPER COVER HOLE
52433-35010

KZN130,LN130,VZN130

 2
52436 - PROTECTOR, FRONT BUMPER GUARD
52436-35010

KZN130,LN109,112,130,VZN130

 4
52436 - PROTECTOR, FRONT BUMPER GUARD
52436-35010

KZN130,LN109,112,130,VZN130

 4
52437 - COVER, FRONT BUMPER GUARD, RH
52437-35010

KZN130,LN109,112,130,VZN130

 1
52438 - COVER, FRONT BUMPER GUARD, LH
52438-35010

KZN130,LN109,112,130,VZN130

 1
52441 - BASE, FRONT BUMPER GUARD, NO.1 RH
52441-35010

LN130,VZN130

 1
52441-35020

KZN130,LN109,112,VZN130

 1
52442 - BASE, FRONT BUMPER GUARD, NO.1 LH
52442-35010

LN130,VZN130

 1
52442-35020

KZN130,LN109,112,VZN130

 1
75111A - BRACKET, FRONT LICENSE PLATE
75111-35030

KZN130,LN109,112,130,VZN130

 1
Common parts
90119-08898
90119-10713
90176-06042
90467-09137
91651-A0616

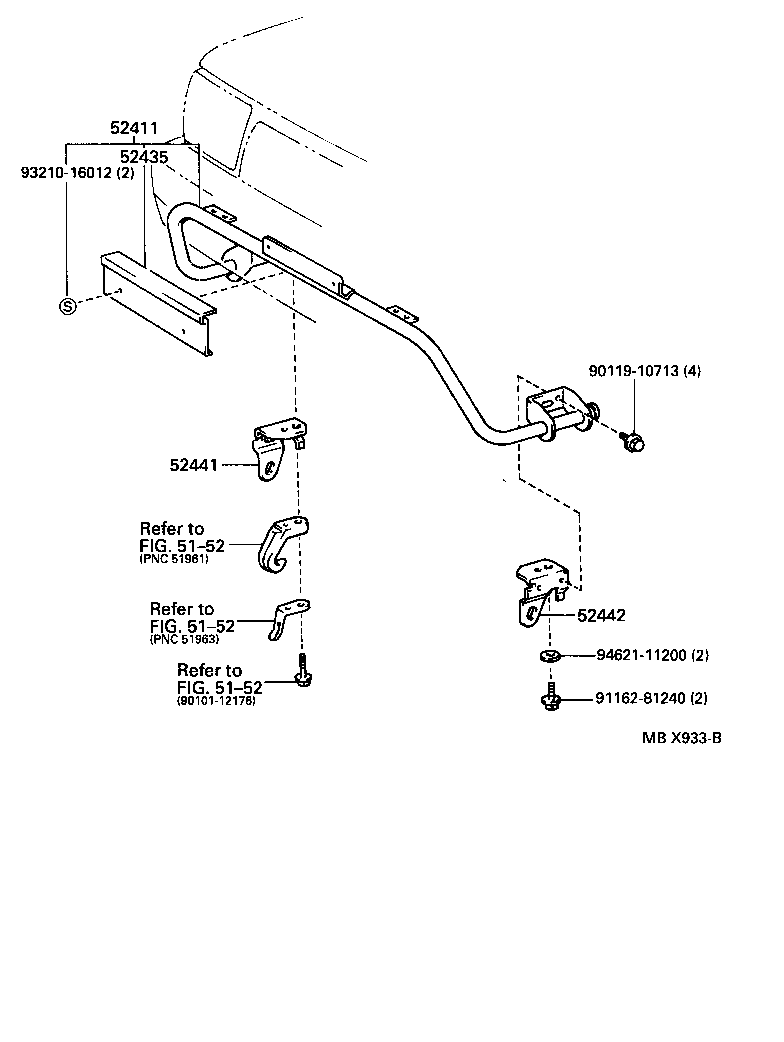

(9308- )KZN130,VZN130

Click highlighted areas on diagram

ｱﾘ(ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ ｱﾝﾀﾞ ｶﾞ-ﾄﾞ)

diagram 5152 5152 5152 52411 52435 52441 52442 9011910713 9116281240 9321016012 9462111200
Part # Description Qty Price
52411 - GUARD, FRONT BUMPER
52401-35010

KZN130,LN109,112,130,VZN130

 1
52410-35020

KZN130,VZN130..SSRX

ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ ｱﾝﾀﾞ ｶﾞ-ﾄﾞ

 1
52435 - GARNISH, FRONT BUMPER GUARD
52435-35020

KZN130,VZN130..SSRX

 1
52441 - BASE, FRONT BUMPER GUARD, NO.1 RH
52441-35010

LN130,VZN130

 1
52441-35020

KZN130,LN109,112,VZN130

 1
52442 - BASE, FRONT BUMPER GUARD, NO.1 LH
52442-35010

LN130,VZN130

 1
52442-35020

KZN130,LN109,112,VZN130

 1
Common parts
90119-10713
91162-81240
93210-16012
94621-11200
Linked diagrams
5152
