VZN130G-GKPGE (1990)

Toyota Hilux

Production Aug 1990 - Aug 1991
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8809-9108)

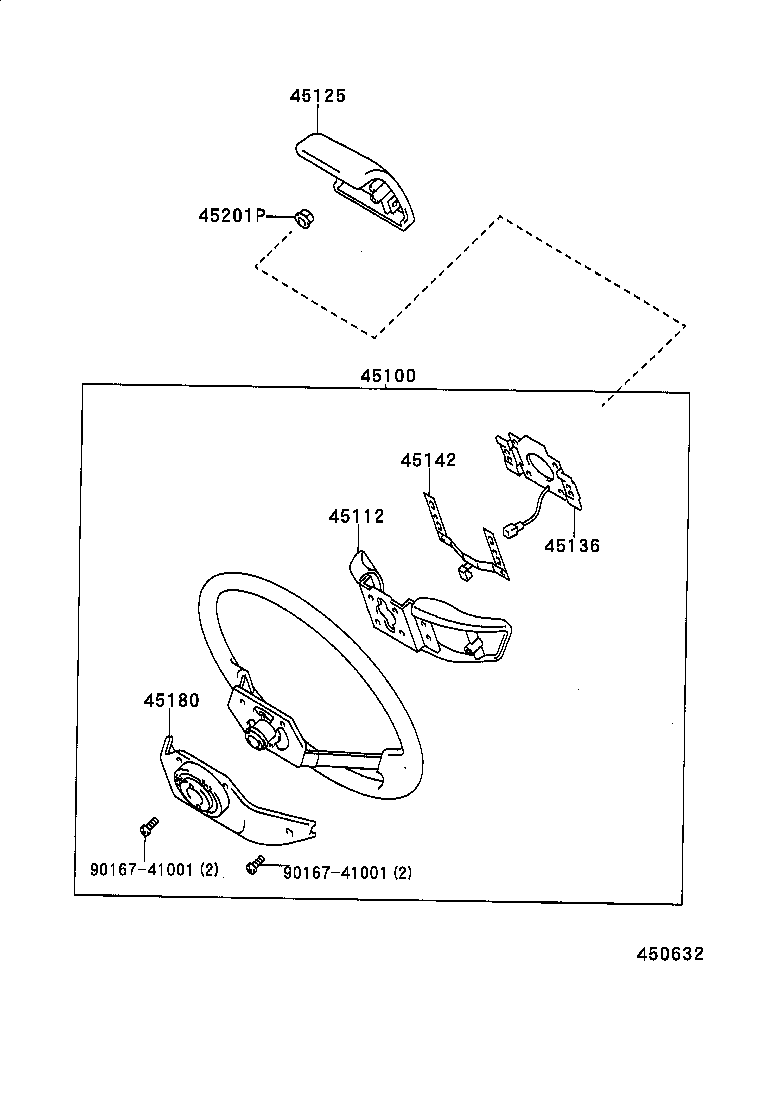

Click highlighted areas on diagram

2-SPOKE

diagram 45100 45112 45125 45136 45142 45180 45201P 9016741001 9016741001
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3531003

VZN130..4FC

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,GRAY,TRIM1#

 1
45100-3531004

VZN130..4FC

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLUE,TRIM8#

 1
45100-3531006

VZN130..4FC

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BROWN,TRIM4#

 1
45100-3531002

VZN130..4FC

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,RED,TRIM3#

 1
45125 - MARK, STEERING WHEEL PAD
45125-35180

VZN130

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45184-3505002

VZN130..4FC

RED,TRIM3#

 1
45184-3505006

VZN130..4FC

BROWN,TRIM4#

 1
45184-3505004

VZN130..4FC

BLUE,TRIM8#

 1
45184-3505003

VZN130..4FC

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
Common parts
90167-41001

(8809-9108)

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45105 45105A 45130 45147 45180 45201P 9331515010 9331515014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3531003

VZN130..4FC

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,GRAY,TRIM1#

 1
45100-3531004

VZN130..4FC

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLUE,TRIM8#

 1
45100-3531006

VZN130..4FC

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BROWN,TRIM4#

 1
45100-3531002

VZN130..4FC

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,RED,TRIM3#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-35040

LN10#,13#,85,YN10#,130,8#..SDX,SR,SSR

 1
45105-35051

VZN130

 1
45105A - CUSHION(FOR HORN BUTTON CONTACT PLATE)
90540-08014

LN10#,13#,85,YN10#,130,8#..SDX,SR,SSR

 4
45130 - BUTTON ASSY, HORN
45130-3524103

LN10#,13#,85,YN10#,130,8#..SDX,SR,SSR

MEDIUM GRAY,TRIM1#

 1
45130-3524104

LN10#,13#,85,YN10#,130,8#..SDX,SR,SSR

MEDIUM BLUE,TRIM8#

 1
45130-3524003

LN10#,13#,85,YN10#,130,8#..SDX,SR,SSR

GRAY,TRIM1#

 1
45130-3525102

VZN130

RED,TRIM3#

 1
45130-3525104

VZN130

MEIUM BLUE,TRIM8#

 1
45130-3525103

VZN130

MEDIUM GRAY,TRIM1#

 1
45130-3525106

VZN130

BROWN,TRIM4#

 1
45147 - SPACER, HORN BUTTON
90561-03001

LN10#,13#,85,YN10#,130,8#..SDX,SR,SSR

 4
45180 - COVER SUB-ASSY, STEERING WHEEL
45184-3505002

VZN130..4FC

RED,TRIM3#

 1
45184-3505006

VZN130..4FC

BROWN,TRIM4#

 1
45184-3505004

VZN130..4FC

BLUE,TRIM8#

 1
45184-3505003

VZN130..4FC

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

LN10#,13#,8#,VZN130,YN10#,130,8#

 1
Common parts
93315-15010
93315-15014
