VZN130G-GKMQE (1991)

Toyota Hilux

Production Aug 1991 - Nov 1995
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9108- )KZN130,LN13#,VZN130

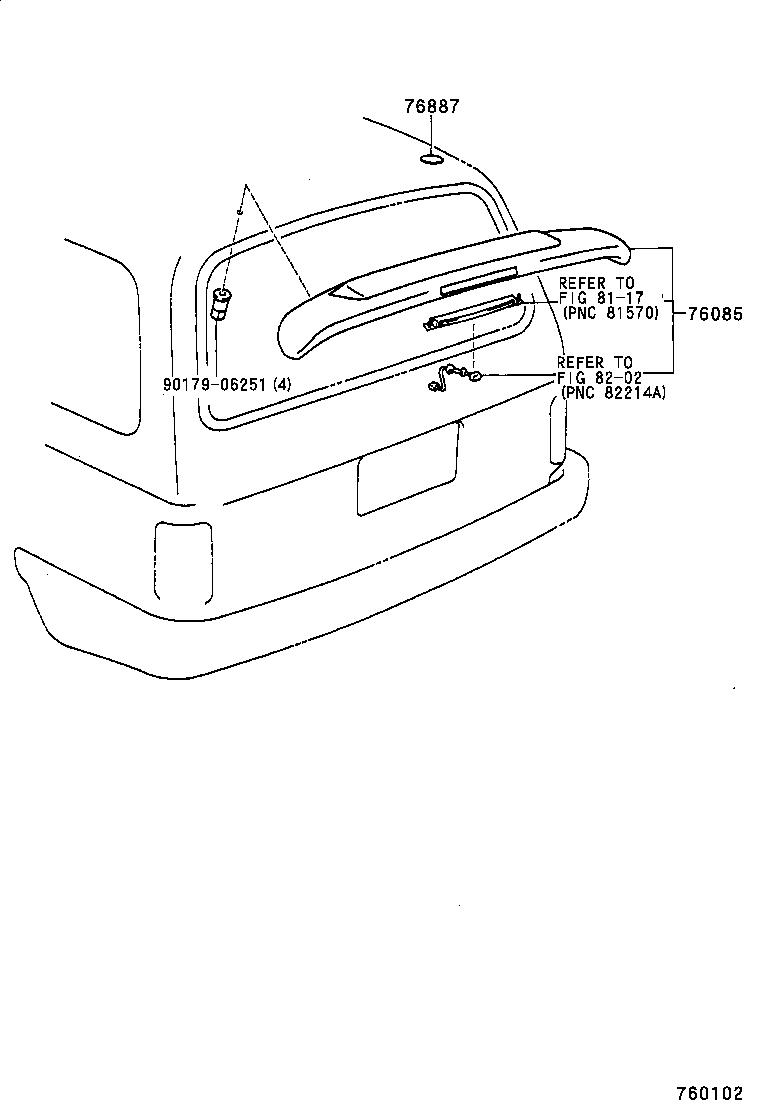

Click highlighted areas on diagram

diagram 76085 76887 8117 8202 9017906251
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-35010G0

LN13#,VZN130

GREEN M.,6J7

 1
76085-35010D0

KZN130,LN13#,VZN130

RED MICA,3K3

 1
76085-35010D1

KZN130,LN130,VZN130

WINE RED MICA,25T

 1
76085-35010J0

KZN130,LN130..2D..SSR;KZN130,LN13#,VZN130..4D

DARK BLUE M.,8E3

 1
76085-35010B0

KZN130,LN13#,VZN130

BLUE GRAY M.,179

 1
76085-35010H0

KZN130,VZN130

DARK TEAL GREEN MICA,751

 1
76085-35010J0

KZN130,VZN130

DARK BLUE M.,8E3

 1
76887 - SEAL, REAR SPOILER
76887-35010

LN13#,VZN130

 2
Common parts
90179-06251
Linked diagrams
8117
8202
