VZN130G-GKMGE (1990)

Toyota Hilux

Production Aug 1990 - Aug 1991
Engine 3VZE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9008-9108)3VZE

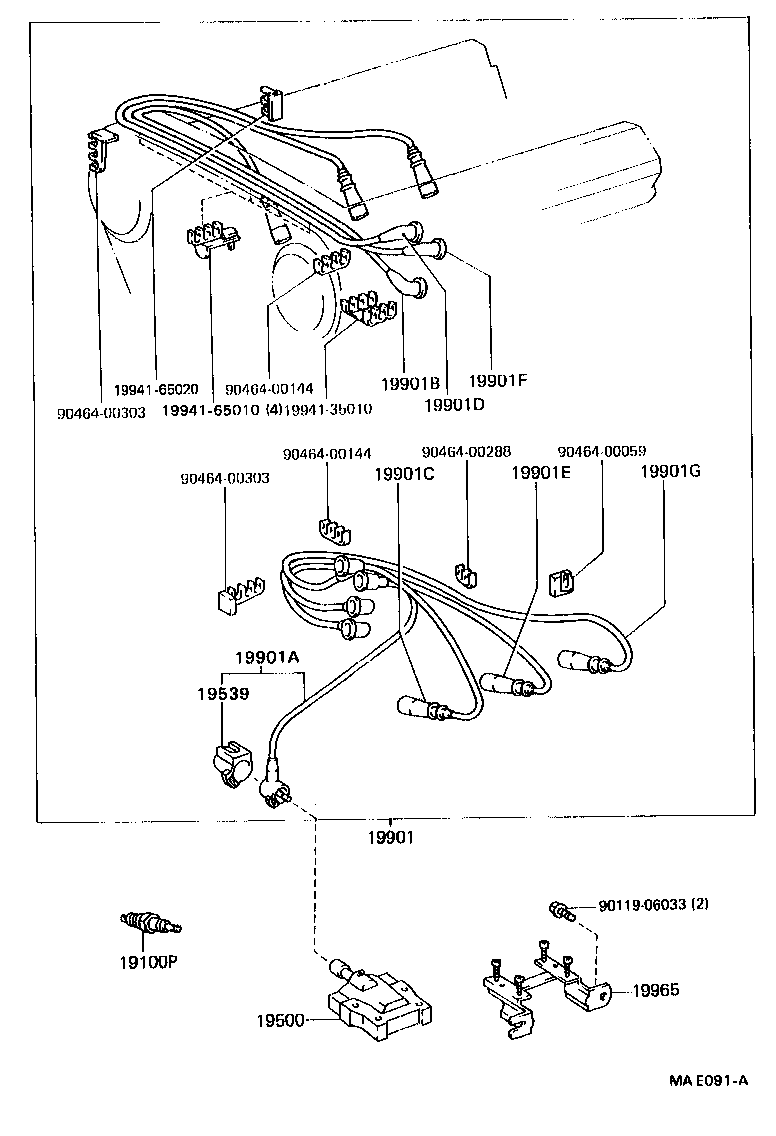

Click highlighted areas on diagram

diagram 19100P 19500 19539 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 1994135010 1994165010 1994165020 19965 9011906033 9046400059 9046400144 9046400144 9046400288 9046400303 9046400303
Part # Description Qty Price
19500 - COIL ASSY, IGNITION
90919-02185

3VZE..VZN130

 1
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-65020

3VZE..VZN130

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21518

3VZE..VZN130

 1
19901A - CORD, COIL RESISTIVE
19590-65030

3VZE..VZN130

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15026

3VZE..VZN130

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15027

3VZE..VZN130

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15028

3VZE..VZN130

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15029

3VZE..VZN130

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-15030

3VZE..VZN130

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-15031

3VZE..VZN130

 1
Common parts
19941-35010
19941-65010
19941-65020
90119-06033
90464-00059
90464-00144
90464-00288
90464-00303
