VZN130G-GJPGE (1990)

Toyota Hilux

Production Aug 1990 - Aug 1991
Engine 3VZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

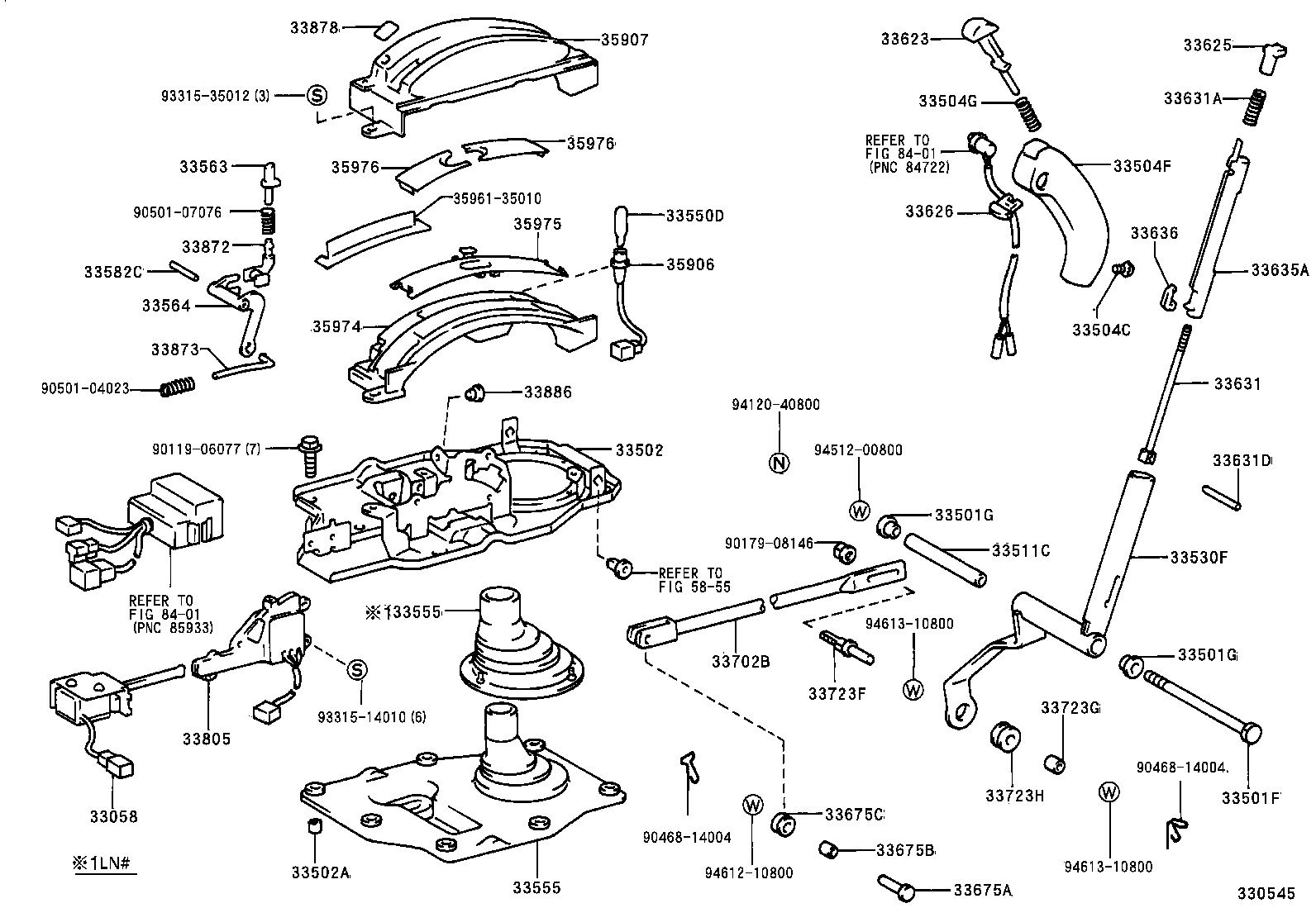

ILLUST NO. 1 OF 2(9008- )KZN130,LN108,112,130..4FC

Click highlighted areas on diagram

diagram 33058 33501F 33501G 33501G 33502 33502A 33504C 33504F 33504G 33511C 33530F 33550D 33555 33555 33563 33564 33582C 33623 33625 33626 33631 33631A 33631D 33635A 33636 33675A 33675B 33675C 33702B 33723F 33723G 33723H 33805 33872 33873 33878 33886 35906 35907 3596135010 35974 35975 35976 35976 5855 8401 8401 9011906077 9017908146 9046814004 9046814004 9050104023 9050107076 9331514010 9331535012 9412040800 9451200800 9461210800 9461310800 9461310800
Part # Description Qty Price
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33511-35170

KZN130,LN108,112,130..4FC

 1
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06065

KZN130,LN108,112,130..4FC

外径=8.8

 7
33511C - COLLAR (FOR CONTROL SHAFT)
90387-08104

KZN130,LN108,112,130..4FC

 1
33555 - BOOT, SHIFT LEVER
33555-35130

LN108,112,130..4FC

下側

 1
33555-35140

LN108,112,130..4FC

上側

 1
33555 - BOOT, SHIFT LEVER
33555-35130

LN108,112,130..4FC

下側

 1
33555-35140

LN108,112,130..4FC

上側

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-35050

KZN130,LN108,112,130..4FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-35040

KZN130,LN108,112,130..4FC

 1
33631 - ROD, DETENT
33631-12080

KZN130,LN108,112,130..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07074

KZN130,LN108,112,130,85,YN86..4FC

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04001

KZN130,LN108,112,130..4FC

 1
33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33636-35010

KZN130,LN108,112,130,85,VZN130,YN130,86..4FC

 1
33675B - BUSH (FOR TRANSMISSION CONTROL ROD)
90389-08005

KZN130,LN108,112,130,85,YN86..4FC

 1
33675C - GROMMET (FOR TRANSMISSION CONTROL ROD)
90480-17177

KZN130,LN108,112,130,85,YN86..4FC

 1
33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33704-35040

VZN130..4FC

NO.1

 1
33702-35110

VZN130..4FC

NO.2

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010

KZN130,LN108,112,130,85,VZN130,YN130,86..4FC

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90389-08005

KZN130,LN108,112,130,85,YN86..4FC

 1
33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
90480-17177

KZN130,LN108,112,130,85,YN86..4FC

 1
33805 - PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT)
33805-35040

KZN130,LN108,112,130,VZN130..4FC

 1
33872 - LINK, SHIFT LOCK RELEASE, NO.2
33872-35060

KZN130,LN108,112,130..4FC

 1
33873 - LINK, SHIFT LOCK RELEASE, NO.3
33873-35030

KZN130,LN108,112,130..4FC

 1
33878 - LABEL, SHIFT LOCK INFORMATION, NO.2
33878-16010

KZN130,LN108,112,130..4FC

 1
33886 - STOPPER, SHIFT LEVER
33886-16010

KZN130,LN108,112,130,85,VZN130,YN130,86..4FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-35060

KZN130,LN108,112,130..4FC

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-35100

KZN130,LN108,112,130..4FC

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-35040

KZN130,LN108,112,130..4FC

 2
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-35040

KZN130,LN108,112,130..4FC

 2
Common parts
35961-35010
90119-06077
90179-08146
90468-14004
90501-04023
90501-07076
93315-14010
93315-35012
94120-40800
94512-00800
94612-10800
94613-10800
Linked diagrams
5855
8401
