RZN167-PRMQE (1997)

Toyota Hilux

Production Aug 1997 - Aug 1999
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

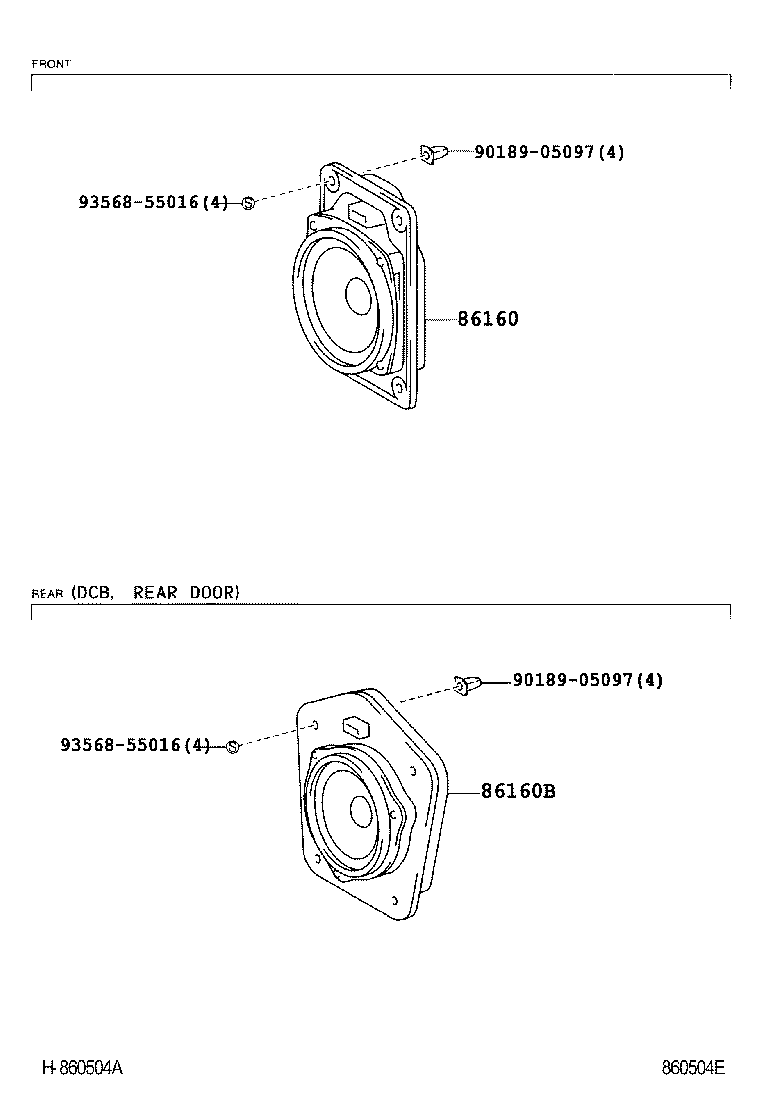

ILLUST NO. 1 OF 2(9708- )

Click highlighted areas on diagram

diagram 86160 86160B 9018905097 9018905097 9356855016 9356855016
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-35160

LN147,167,RZN147..D

ｱﾘ(2 ｽﾋﾟ-ｶ)

 2
86160-35170

LN16#,17#,RZN147,152,16#,174..Q

 2
86160-35160

LN147,167,RZN147..D

 1
86160B - SPEAKER ASSY, REAR
86160-35110

LN16#,RZN147,16#..Q

 2
Common parts
90189-05097
93568-55016
