RZN167-PRMQE (1997)

Toyota Hilux

Production Aug 1997 - Aug 1999
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

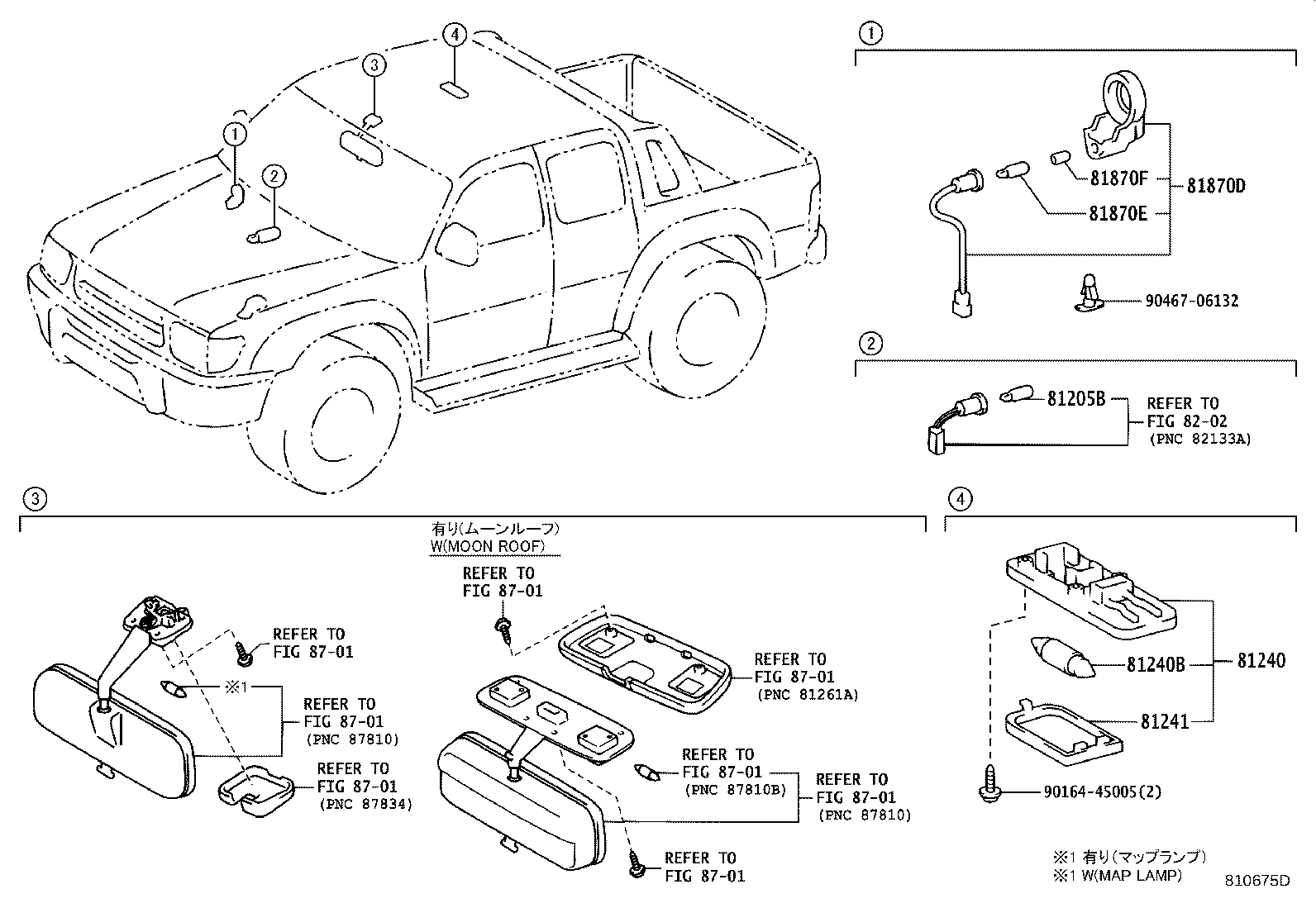

Click highlighted areas on diagram

diagram 81205B 81240 81240B 81241 81870D 81870E 81870F 8202 8701 8701 8701 8701 8701 8701 8701 8701 9016445005 9046706132
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-11041

LN147,16#,17#,RZN147,152,16#,174

14V 1.4W

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-89103B0

LN147,16#,17#,RZN147,167..DCB,XTR

MOON MIST,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

LN147,16#,17#,RZN147,152,16#,174..DCB,XTR

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

LN147,16#,17#,RZN147,152,16#,174..DCB,XTR

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-35040

LN147,16#,17#,RZN147,152,16#,174

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

LN147,16#,17#,RZN147,152,16#,174

14V 1.4W

 1
81870F - CAP, KEY CYLINDER LAMP BULB
84998-10070

LN147,16#,17#,RZN147,152,16#,174

 1
Common parts
90164-45005
90467-06132
Linked diagrams
8202
8701
