RZN167-PRMQE (1997)

Toyota Hilux

Production Aug 1997 - Aug 1999
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0407)

Click highlighted areas on diagram

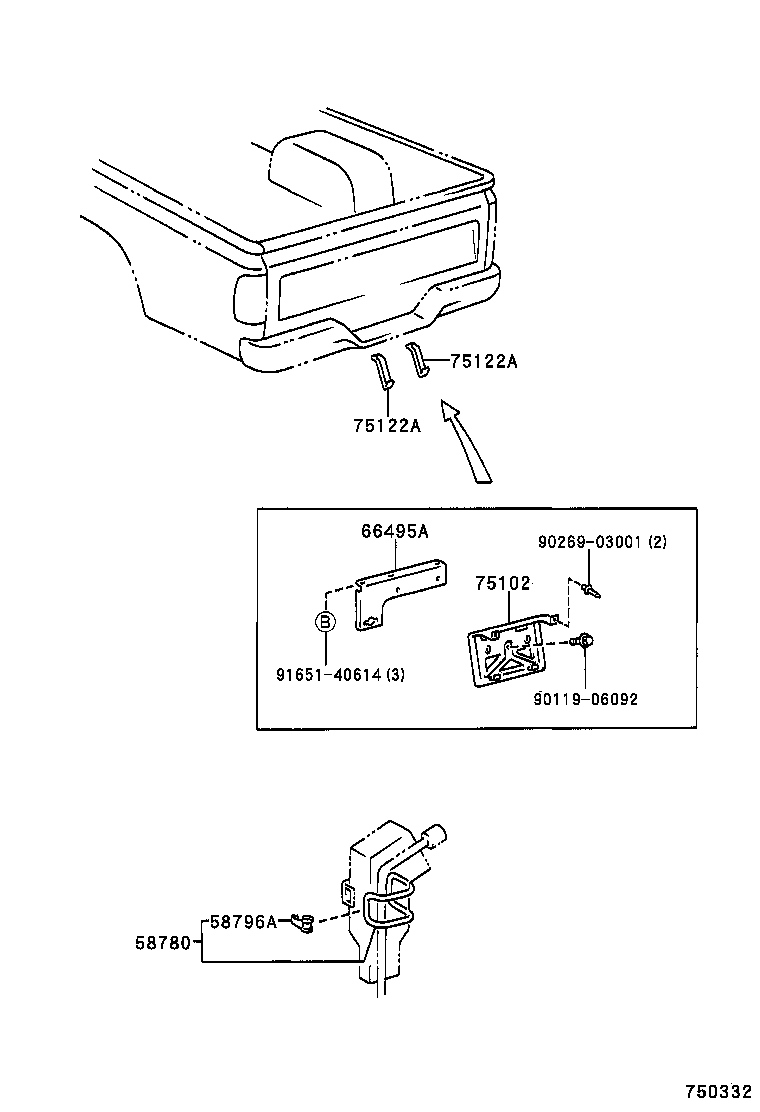

diagram 58780 58796A 66495A 75102 75122A 75122A 9011906092 9026903001 9165140614
Part # Description Qty Price
58780 - BAND ASSY, TOOL BOX
58780-89102

LN147,16#,17#,RZN147,152,16#,174

 1
58796A - HOOK, JACK CLAMP
58796-20012

LN147,16#,17#,RZN147,152,16#,174

 1
75122A - BRACKET, REAR LICENSE PLATE, NO.2
75122-89106

LN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU

 2
75122A - BRACKET, REAR LICENSE PLATE, NO.2
75122-89106

LN147,16#,17#,RZN147,152,16#,174..(T1,TW1)..CBU

 2
Common parts
90119-06092
90269-03001
91651-40614
