RZN167-PRMQE (1997)

Toyota Hilux

Production Aug 1997 - Aug 1999
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )TW1

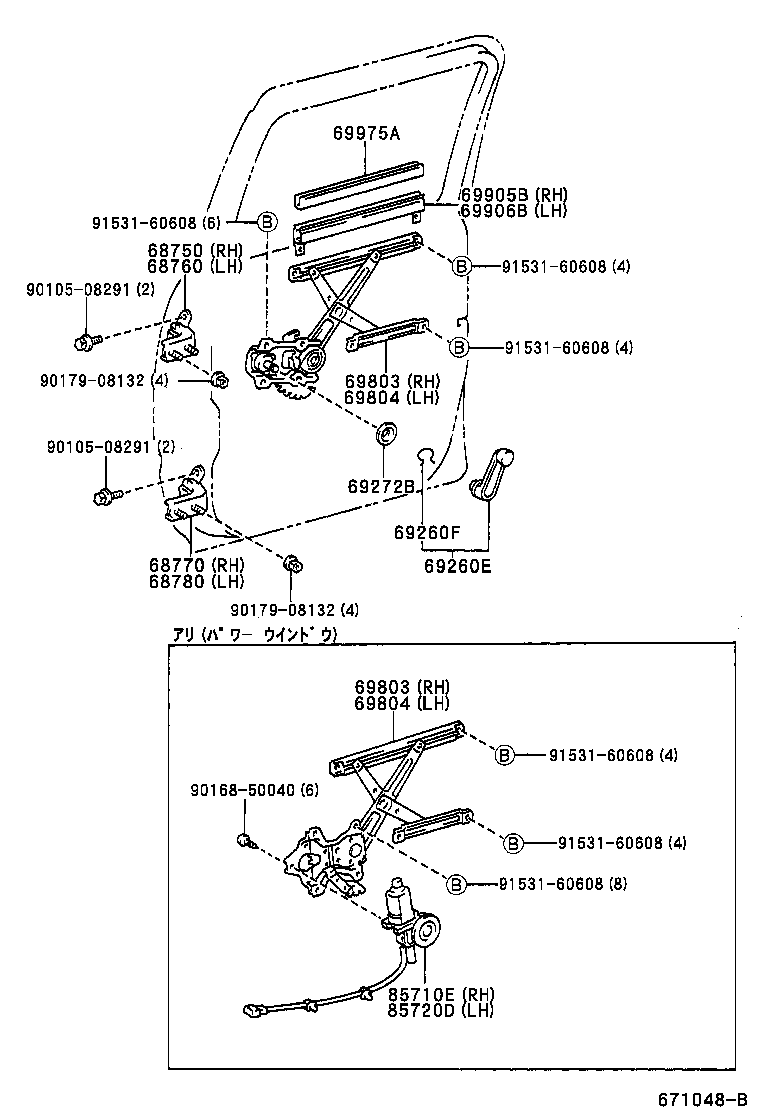

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69905B 69906B 69975A 85710E 85720D 9010508291 9010508291 9016850040 9017908132 9017908132 9153160608 9153160608 9153160608 9153160608 9153160608 9153160608
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-32060

LN147,16#,RZN147,16#..TW1

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-32060

LN147,16#,RZN147,16#..TW1

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-35030

LN147,16#,RZN147,16#..TW1

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-35030

LN147,16#,RZN147,16#..TW1

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-89104B1

LN147,16#,RZN147,167..TW1

MD.MOON MIST,TRIM1#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01274

LN147,16#,RZN147,167..TW1

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69285-22010

LN147,16#,RZN147,167..TW1

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-35050

LN16#,RZN147,16#..Q

 1
69803-35040

LN147,167..TW1..D

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-35050

LN16#,RZN147,16#..Q

 1
69803-35040

LN147,167..TW1..D

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-35040

LN147,167..TW1..D

 1
69804-35050

LN16#,RZN147,16#..Q

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-35040

LN147,167..TW1..D

 1
69804-35050

LN16#,RZN147,16#..Q

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69901-89113

LN147,16#,RZN147,16#..TW1

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69901-89113

LN147,16#,RZN147,16#..TW1

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69971-89106

LN147,16#,RZN147,16#..TW1

 2
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-35130

LN16#,RZN147,16#..Q

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-35100

LN16#,RZN147,16#..Q

 1
Common parts
90105-08291
90168-50040
90179-08132
91531-60608
