RZN167-PRMQE (1997)

Toyota Hilux

Production Aug 1997 - Aug 1999
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )

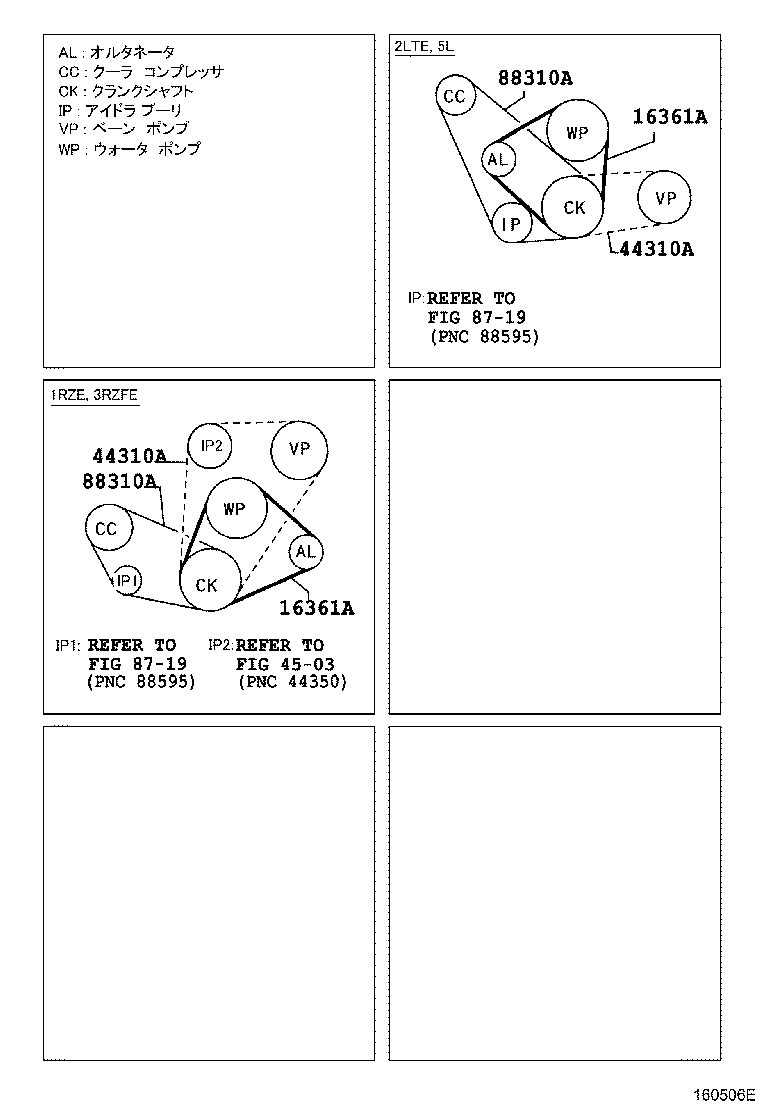

Click highlighted areas on diagram

diagram 16361A 16361A 44310A 44310A 4503 8719 8719 88310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02336

1RZE,3RZFE..RZN147,152,16#,174

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02336

1RZE,3RZFE..RZN147,152,16#,174

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01120

RZN167

長さ=1120

 1
99332-00825

LN147,167,172

長さ=825

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01120

RZN167

長さ=1120

 1
99332-00825

LN147,167,172

長さ=825

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-30940

RZN147,152,16#,174

長さ=940,BANDO

 1
99332-11265

LN147,16#,17#

長さ=1265

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-30940

RZN147,152,16#,174

長さ=940,BANDO

 1
99332-11265

LN147,16#,17#

長さ=1265

 1
Linked diagrams
4503
8719
