RZN152H-CRPQE (1999)
Toyota Hilux
(9708-0308)1RZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17302 - HOSE SUB-ASSY, AIR | ||||
| 17302-75020 |
1RZE..RZN147,152..ATM |
1 | ||
| 17343F - HOSE, AIR, NO.3 | ||||
| 17343-75020 |
1RZE..RZN147,152..ATM |
2 | ||
| 17343-75020 |
1RZE..RZN147,152..ATM |
2 | ||
| 17343F - HOSE, AIR, NO.3 | ||||
| 17343-75020 |
1RZE..RZN147,152..ATM |
2 | ||
| 17343-75020 |
1RZE..RZN147,152..ATM |
2 | ||
| 17346B - HOSE, AIR, NO.6 | ||||
| 17346-75030 |
1RZE..RZN147,152 |
1 | ||
| 17346-75030 |
1RZE..RZN147,152,167 |
1 | ||
| 17347B - HOSE, AIR, NO.7 | ||||
| 17347-75020 |
1RZE..RZN147,152 |
1 | ||
| 17347-75020 |
1RZE..RZN147,152,167 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-74010 |
1RZE..RZN147,152,167 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11041 |
1RZE..RZN147,152,167 |
1 | ||
| 90917-11041 |
1RZE..RZN147,152 |
1 | ||
| 23269 - UNION(FOR GAS FILTER) | ||||
| 90404-51026 |
1RZE..RZN147,152,167 |
1 | ||
| 90404-51026 |
1RZE..RZN147,152 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-75120 |
1RZE..RZN147,152,167 |
1 | ||
| 23827-75120 |
1RZE..RZN147,152 |
1 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23829-75170 |
1RZE,3RZFE..RZN147,152,169,174 |
1 | ||
| 23829-75170 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| 25701 - VALVE SET, EMISSION CONTROL | ||||
| 25701-75030 |
1RZE,3RZFE..RZN147,152,16#,174 |
1 | ||
| 25701-75030 |
1RZE,3RZFE..RZN147,152,169,174 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-75130 |
1RZE..RZN147,152 NO.1 |
1 | ||
| 25860-75130 |
1RZE..RZN147,152,167 NO.1 |
1 | ||
| 25860-75200 |
1RZE..RZN147,152..ATM NO.2 |
1 | ||
| 25860-75200 |
1RZE..RZN147,152..ATM NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-75130 |
1RZE..RZN147,152 NO.1 |
1 | ||
| 25860-75130 |
1RZE..RZN147,152,167 NO.1 |
1 | ||
| 25860-75200 |
1RZE..RZN147,152..ATM NO.2 |
1 | ||
| 25860-75200 |
1RZE..RZN147,152..ATM NO.2 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12089 |
1RZE..RZN147,152,167 |
1 | ||
| 90910-12089 |
1RZE..RZN147,152 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-06008 | ||||
| 90413-10256 | ||||
| 90445-08342 | ||||
| 90464-00082 | ||||
| 90464-00534 | ||||
| 90464-00584 | ||||
| 90929-01396 | ||||
| 90999-92002 | ||||
| 91621-J0612 | ||||
| 91651-60614 | ||||
| 91651-61016 | ||||
| 93319-15008 | ||||
| 96132-51000 | ||||

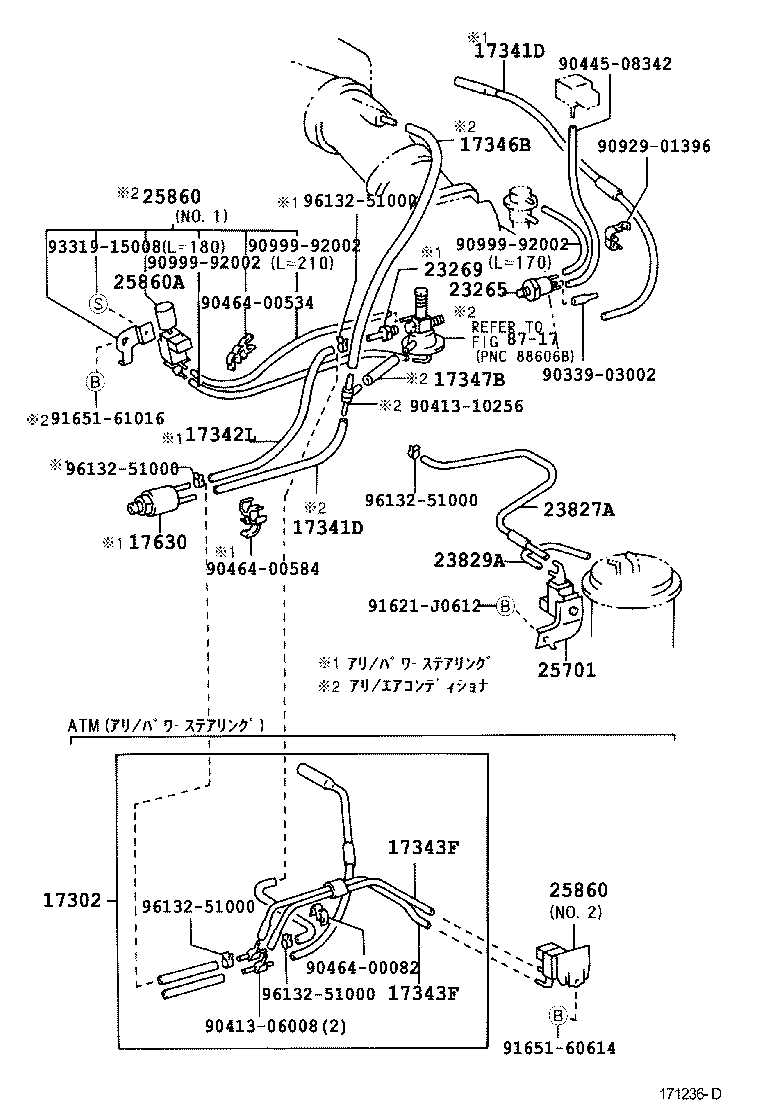

| Linked diagrams | ||||
| 8717 | ||||
