RZN147-TRPDE (1997)

Toyota Hilux

Production Aug 1997 - Aug 2003
Engine 1RZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )LN147,16#,17#,RZN147,167

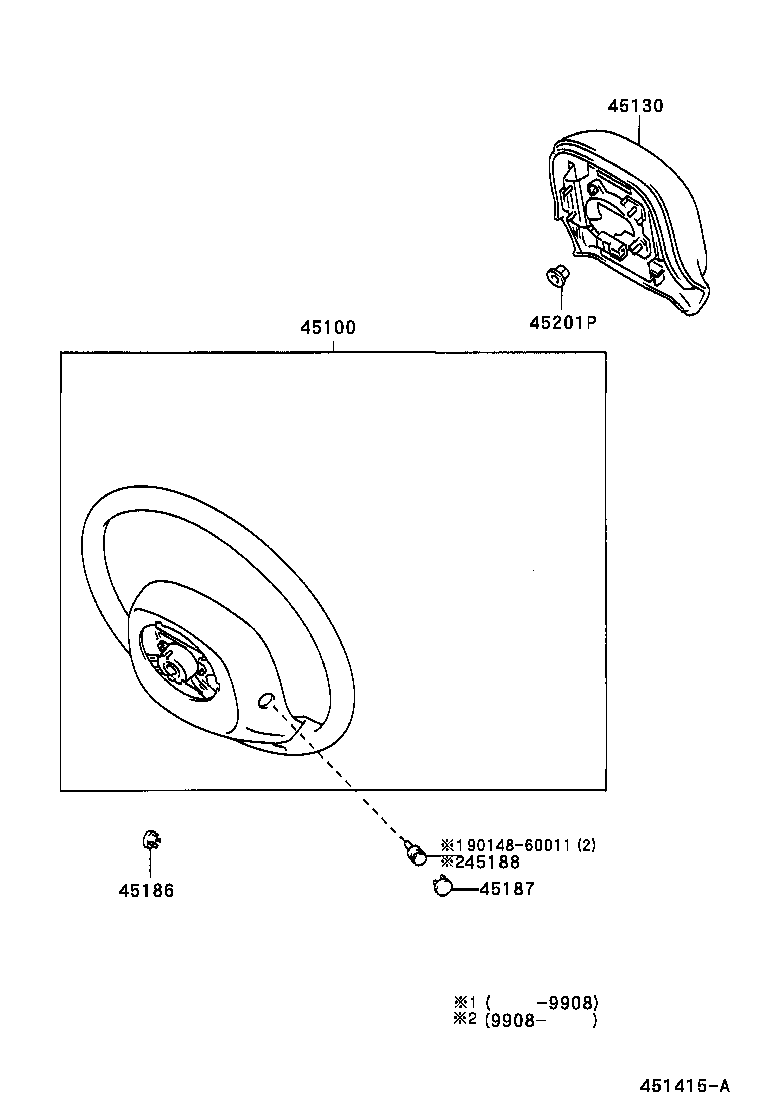

Click highlighted areas on diagram

2-SPOKE,ｱﾘ(*80)

diagram 45100 45130 45186 45187 45188 45201P 9014860011
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-26250C0

RZN147,167;LN147,167..SCB

2本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#

 1
45100-26290C0

RZN169;LN147,167,RZN147,174..T1,T3

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#

 1
45100-26290C0

RZN147,169,174

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-35380C0

RZN147,152,169,174

BLACK,TRIM1#

 1
45130-35380C0

LN147,167,172,RZN147,152,169,174

BLACK,TRIM1#

 1
45130-35350C0

LN147,16#,17#,RZN147,167

BLACK,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33050C0

RZN147,152,169,174

BLACK,TRIM1#

 1
45186-26010C0

LN147,16#,17#,RZN147,167

BLACK,TRIM1#

 1
45186-33050C0

LN147,167,172,RZN147,152,169,174

BLACK,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-26010C0

LN147,16#,17#,RZN147,167

BLACK,TRIM1#

 1
45186-33050C0

RZN147,152,169,174

BLACK,TRIM1#

 1
45186-33050C0

LN147,167,172,RZN147,152,169,174

BLACK,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-60010

LN147,167,172,RZN147,152,169,174

長さ=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

LN147,16#,17#,RZN147,152,16#,174

 1
90179-12071

RZN147,152,169,174

 1
Common parts
90148-60011
