RZN147-TRMDE3 (1997)

Toyota Hilux

Production Aug 1997 - Aug 2003
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )SCB

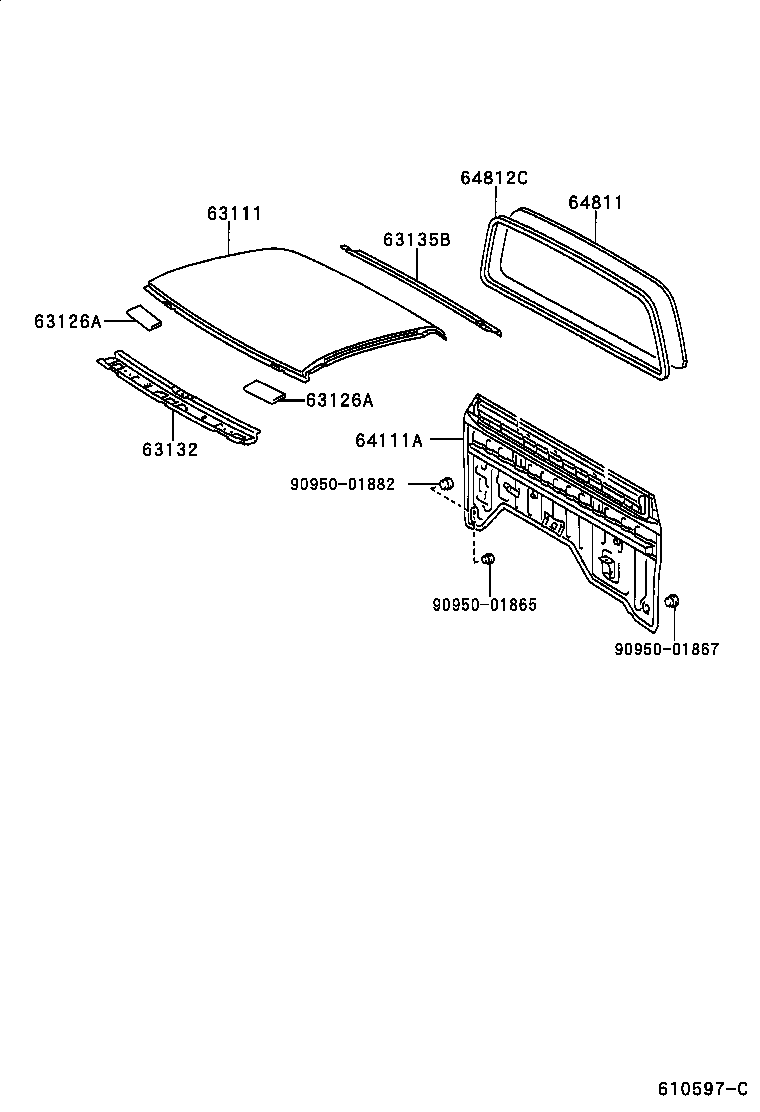

Click highlighted areas on diagram

diagram 63111 63126A 63126A 63132 63135B 64111A 64811 64812C 9095001865 9095001867 9095001882
Part # Description Qty Price
63111 - PANEL, ROOF
63111-35150

LN147,167,RZN147..SCB

 1
63111-35150

RZN147

 1
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-35030

LN147,16#,17#,RZN147,152,16#,174

 2
63126-35030

RZN147,152,169,174

 2
63126A - DAMPER, WINDSHIELD HEADER PANEL
63126-35030

LN147,16#,17#,RZN147,152,16#,174

 2
63126-35030

RZN147,152,169,174

 2
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-35030

RZN147,152,169,174

 1
63132-35030

LN147,16#,17#,RZN147,152,16#,174

 1
63135B - PANEL, BACK WINDOW, UPPER INNER
63135-35070

LN147,167,RZN147..SCB

 1
63135-35070

RZN147

 1
64111A - PANEL, BACK
64101-35050

LN147,167,RZN147..SCB

 1
64811 - GLASS, BACK WINDOW
64811-35010

LN147,16#,17#,RZN147,167

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
64811-35010

RZN147

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
64812C - WEATHERSTRIP, BACK WINDOW GLASS
64812-35030

RZN147

 1
64812-35030

LN147,167,RZN147..D

 1
Common parts
90950-01865
90950-01867
90950-01882
