RZN147-TRMDE3 (1997)
Toyota Hilux

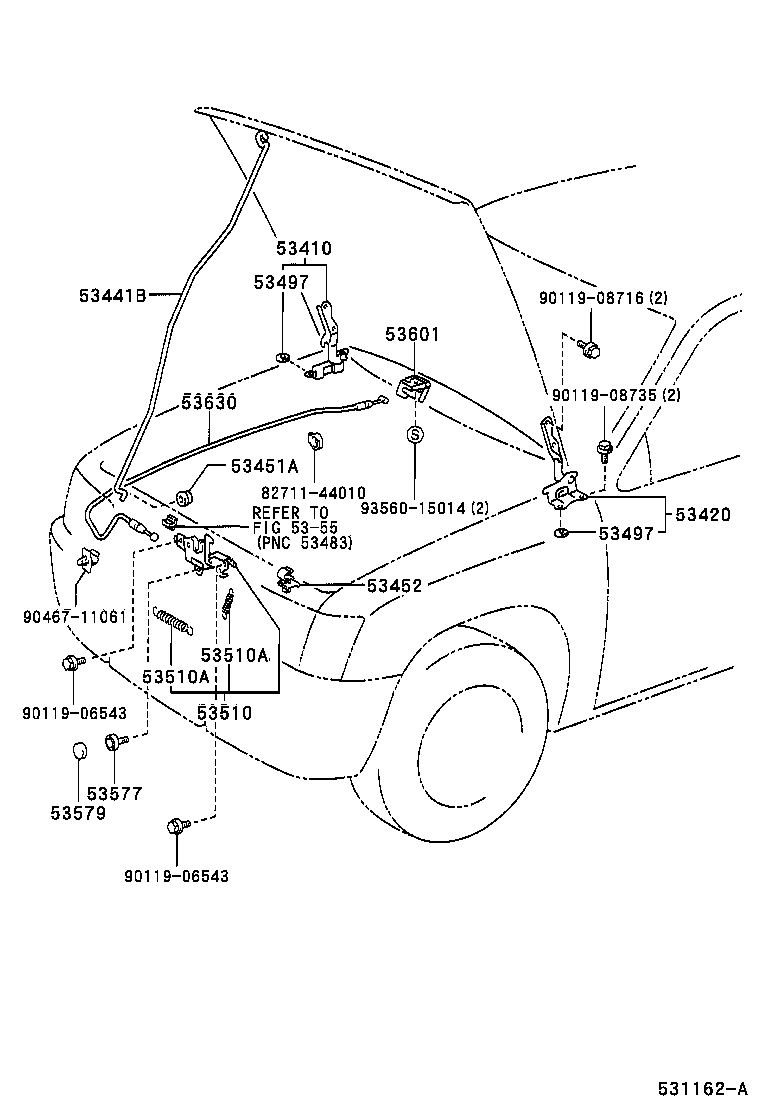

(9708-0108)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-35030 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 53410-35030 |
RZN147,152,169,174 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-35030 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 53420-35030 |
RZN147,152,169,174 |
1 | ||
| 53441B - SUPPORT, HOOD | ||||
| 53441-35030 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 53441-35031 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 53441-35031 |
RZN147 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15012 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 90480-15012 |
RZN147 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-90351 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 53452-90351 |
RZN147 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-35040 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=2.0 |
4 | ||
| 53497-35030 |
RZN147,152,169,174 厚さ=0.5 |
4 | ||
| 53497-35030 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=0.5 |
4 | ||
| 53497-35020 |
RZN147,152,169,174 厚さ=1.0 |
4 | ||
| 53497-35020 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=1.0 |
4 | ||
| 53497-35040 |
RZN147,152,169,174 厚さ=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-35040 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=2.0 |
4 | ||
| 53497-35030 |
RZN147,152,169,174 厚さ=0.5 |
4 | ||
| 53497-35030 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=0.5 |
4 | ||
| 53497-35020 |
RZN147,152,169,174 厚さ=1.0 |
4 | ||
| 53497-35020 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=1.0 |
4 | ||
| 53497-35040 |
RZN147,152,169,174 厚さ=2.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-35110 |
RZN147 |
1 | ||
| 53510-35110 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
LN147,16#,17#,RZN147,152,16#,174 線径=2.0,ｺｲﾙ巻数=17 |
1 | ||
| 90506-07021 |
RZN147 線径=0.7,ｺｲﾙ巻数=37.25 |
1 | ||
| 90506-07021 |
LN147,16#,17#,RZN147,152,16#,174 線径=0.7,ｺｲﾙ巻数=37.25 |
1 | ||
| 90506-20008 |
RZN147 線径=2.0,ｺｲﾙ巻数=17 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
LN147,16#,17#,RZN147,152,16#,174 線径=2.0,ｺｲﾙ巻数=17 |
1 | ||
| 90506-07021 |
RZN147 線径=0.7,ｺｲﾙ巻数=37.25 |
1 | ||
| 90506-07021 |
LN147,16#,17#,RZN147,152,16#,174 線径=0.7,ｺｲﾙ巻数=37.25 |
1 | ||
| 90506-20008 |
RZN147 線径=2.0,ｺｲﾙ巻数=17 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-10020B3 |
LN147,16#,17#,RZN147,152,16#,174 MD.MOON MIST,TRIM1# |
1 | ||
| 53601-10020B3 |
RZN147,152,169,174 MD.MOON MIST,TRIM1# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-35050 |
RZN147,152,169,174 |
1 | ||
| 53630-35050 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| Common parts | ||||
| 82711-44010 | ||||
| 90119-06543 | ||||
| 90119-08716 | ||||
| 90119-08735 | ||||
| 90467-11061 | ||||
| 93560-15014 | ||||

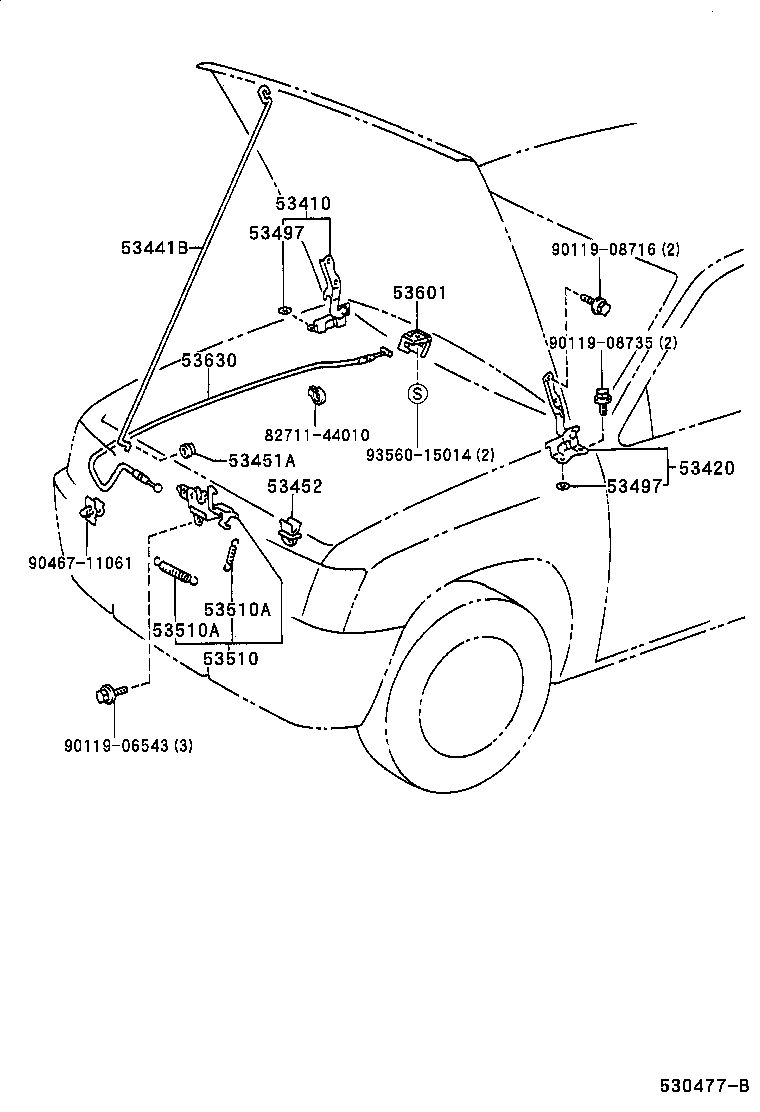

(0108- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-35030 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 53410-35030 |
RZN147,152,169,174 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-35030 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 53420-35030 |
RZN147,152,169,174 |
1 | ||
| 53441B - SUPPORT, HOOD | ||||
| 53441-35030 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 53441-35031 |
LN147,167,172,RZN147,152,169,174 |
1 | ||
| 53441-35031 |
RZN147 |
1 | ||
| 53451A - GROMMET(FOR HOOD SUPPORT ROD) | ||||
| 90480-15012 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 90480-15012 |
RZN147 |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-90351 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 53452-90351 |
RZN147 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-35040 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=2.0 |
4 | ||
| 53497-35030 |
RZN147,152,169,174 厚さ=0.5 |
4 | ||
| 53497-35030 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=0.5 |
4 | ||
| 53497-35020 |
RZN147,152,169,174 厚さ=1.0 |
4 | ||
| 53497-35020 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=1.0 |
4 | ||
| 53497-35040 |
RZN147,152,169,174 厚さ=2.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-35040 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=2.0 |
4 | ||
| 53497-35030 |
RZN147,152,169,174 厚さ=0.5 |
4 | ||
| 53497-35030 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=0.5 |
4 | ||
| 53497-35020 |
RZN147,152,169,174 厚さ=1.0 |
4 | ||
| 53497-35020 |
LN147,16#,17#,RZN147,152,16#,174 厚さ=1.0 |
4 | ||
| 53497-35040 |
RZN147,152,169,174 厚さ=2.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-35110 |
RZN147 |
1 | ||
| 53510-35110 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
LN147,16#,17#,RZN147,152,16#,174 線径=2.0,ｺｲﾙ巻数=17 |
1 | ||
| 90506-07021 |
RZN147 線径=0.7,ｺｲﾙ巻数=37.25 |
1 | ||
| 90506-07021 |
LN147,16#,17#,RZN147,152,16#,174 線径=0.7,ｺｲﾙ巻数=37.25 |
1 | ||
| 90506-20008 |
RZN147 線径=2.0,ｺｲﾙ巻数=17 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-20008 |
LN147,16#,17#,RZN147,152,16#,174 線径=2.0,ｺｲﾙ巻数=17 |
1 | ||
| 90506-07021 |
RZN147 線径=0.7,ｺｲﾙ巻数=37.25 |
1 | ||
| 90506-07021 |
LN147,16#,17#,RZN147,152,16#,174 線径=0.7,ｺｲﾙ巻数=37.25 |
1 | ||
| 90506-20008 |
RZN147 線径=2.0,ｺｲﾙ巻数=17 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 53577-33010 |
RZN147,152,169,174 |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
RZN147,152,169,174 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-10020B3 |
LN147,16#,17#,RZN147,152,16#,174 MD.MOON MIST,TRIM1# |
1 | ||
| 53601-10020B3 |
RZN147,152,169,174 MD.MOON MIST,TRIM1# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-35050 |
RZN147,152,169,174 |
1 | ||
| 53630-35050 |
LN147,16#,17#,RZN147,152,16#,174 |
1 | ||
| Common parts | ||||
| 82711-44010 | ||||
| 90119-06543 | ||||
| 90119-08716 | ||||
| 90119-08735 | ||||
| 90467-11061 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 5355 | ||||
