RZN147-TRMDE3 (1997)
Toyota Hilux

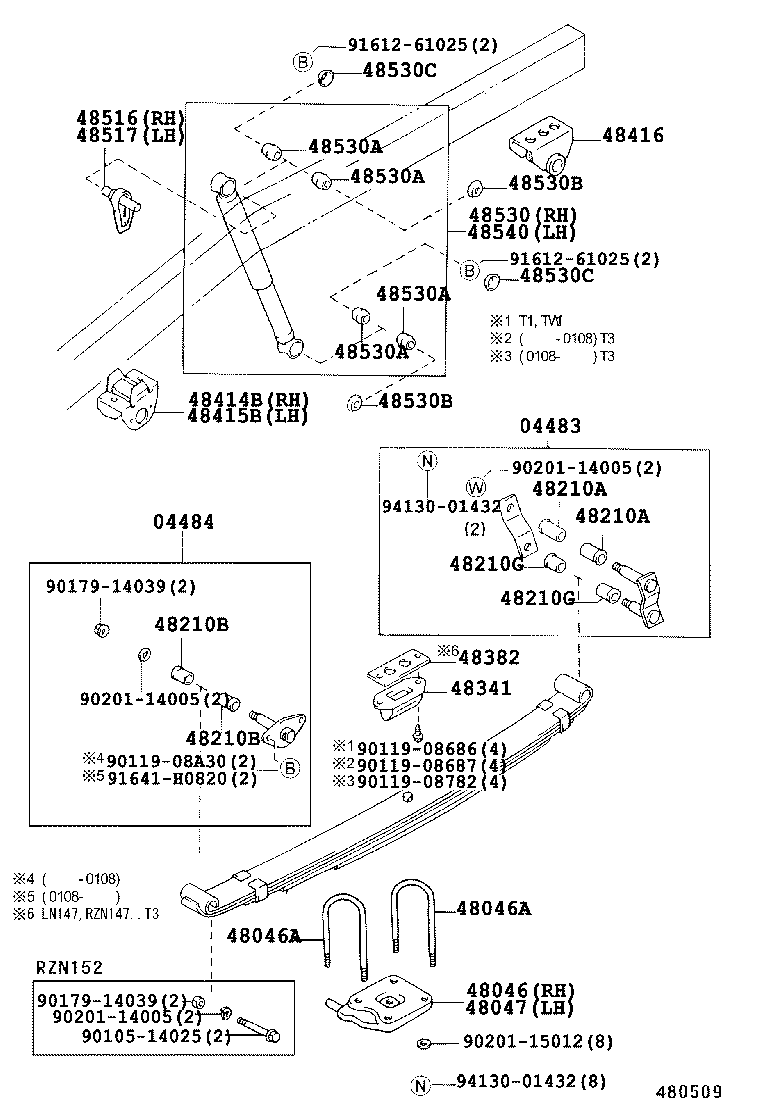

ILLUST NO. 1 OF 2(9708-0407)LN147,RZN147,152
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-35130 |
LN147,RZN147..SCB |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-35070 |
LN147,RZN147..SCB |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-35230 |
LN147,RZN147,152 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14040 |
RZN152;LN147,RZN147..D 長さ=155 |
4 | ||
| 90117-14040 |
RZN147,152 長さ=155 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14040 |
RZN152;LN147,RZN147..D 長さ=155 |
4 | ||
| 90117-14040 |
RZN147,152 長さ=155 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-35230 |
LN147,RZN147,152 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18013 |
LN147,RZN147..SCB |
4 | ||
| 90385-18013 |
RZN147 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18013 |
LN147,RZN147..SCB |
4 | ||
| 90385-18013 |
RZN147 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
RZN147 |
4 | ||
| 90385-18046 |
LN147,RZN147..SCB |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
RZN147 |
4 | ||
| 90385-18046 |
LN147,RZN147..SCB |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LN147,RZN147..SCB |
4 | ||
| 90385-18046 |
RZN147 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LN147,RZN147..SCB |
4 | ||
| 90385-18046 |
RZN147 |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-35080 |
RZN147,152 |
2 | ||
| 48341-35080 |
LN147,RZN147,152..T1 |
2 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48404-35050 |
LN147,RZN147 |
1 | ||
| 48404-35050 |
RZN147 |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48407-35050 |
RZN147 |
1 | ||
| 48407-35050 |
LN147,RZN147 |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-35120 |
LN147,RZN147,152 |
2 | ||
| 48416-35120 |
RZN147,152 |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-35030 |
LN147,RZN147,152 |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-35030 |
LN147,RZN147,152..T1,T3 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80638 |
LN147,RZN147..(T1,TW1)..D ﾏｰｸ 48531−3D100 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
RZN147,152 |
8 | ||
| 90385-16007 |
LN147,RZN147,152 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
RZN147,152 |
8 | ||
| 90385-16007 |
LN147,RZN147,152 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
RZN147,152 |
8 | ||
| 90385-16007 |
LN147,RZN147,152 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
RZN147,152 |
8 | ||
| 90385-16007 |
LN147,RZN147,152 |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
LN147,RZN147,152 |
4 | ||
| 90948-03004 |
RZN147,152 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
LN147,RZN147,152 |
4 | ||
| 90948-03004 |
RZN147,152 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03012 |
LN147,RZN147,152 |
4 | ||
| 90948-03012 |
RZN147,152 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03012 |
LN147,RZN147,152 |
4 | ||
| 90948-03012 |
RZN147,152 |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80638 |
LN147,RZN147..(T1,TW1)..D ﾏｰｸ 48531−3D100 |
1 | ||
| Common parts | ||||
| 90105-14025 | ||||
| 90119-08686 | ||||
| 90119-08687 | ||||
| 90119-08782 | ||||
| 90119-08A30 | ||||
| 90179-14039 | ||||
| 90201-14005 | ||||
| 90201-15012 | ||||
| 91612-61025 | ||||
| 91641-H0820 | ||||
| 94130-01432 | ||||

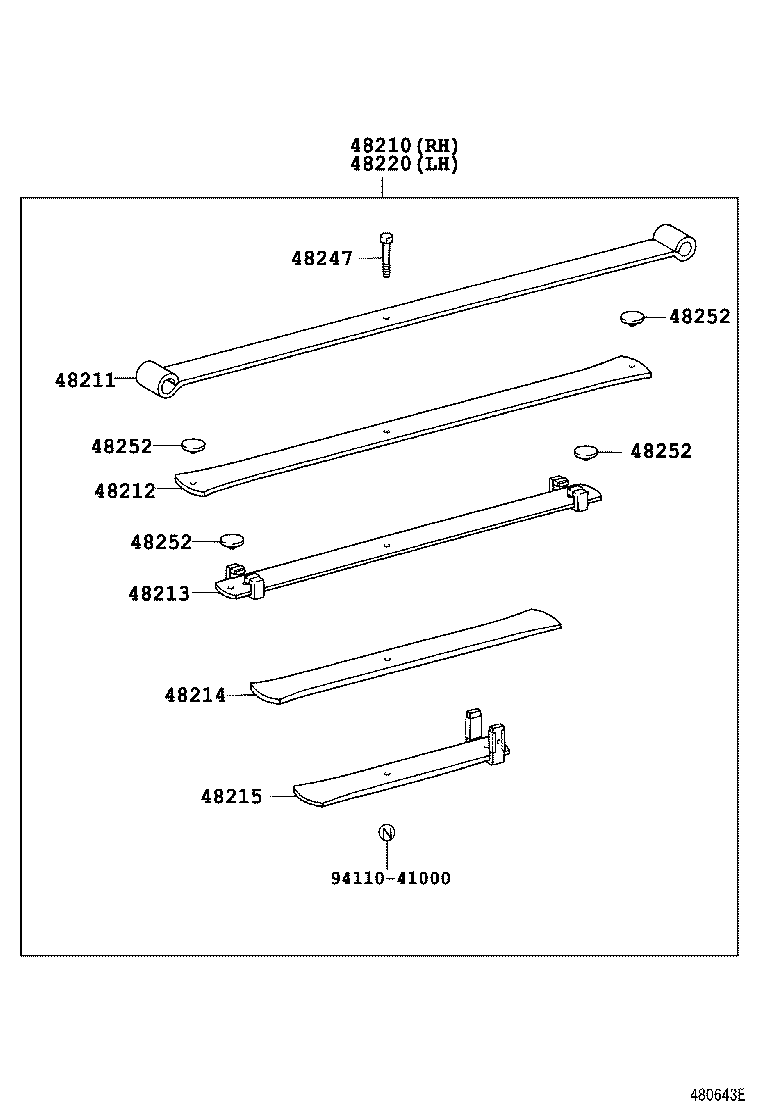

ILLUST NO. 2 OF 2(9708-0407)LN147,RZN147..T1,TW1..D
5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3D070 |
LN147,RZN147..T1 5枚ﾘｰﾌ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-3D070 |
LN147,RZN147..T1 |
2 | ||
| 48211-3D070 |
RZN147 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3D070 |
RZN147 |
2 | ||
| 48212-3D070 |
LN147,RZN147..T1 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-3D070 |
LN147,RZN147..T1 |
2 | ||
| 48202-3D070 |
RZN147 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-3D070 |
LN147,RZN147..T1 |
2 | ||
| 48214-3D070 |
RZN147 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-3D070 |
LN147,RZN147..T1 |
2 | ||
| 48203-3D070 |
RZN147 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3D070 |
LN147,RZN147..T1 5枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3D030 |
RZN147 |
2 | ||
| 48247-3D030 |
LN147,RZN147..(T1,TW1)..D |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-35630 |
LN147,RZN147 |
8 | ||
| 48252-35630 |
RZN147 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-35630 |
LN147,RZN147 |
8 | ||
| 48252-35630 |
RZN147 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-35630 |
LN147,RZN147 |
8 | ||
| 48252-35630 |
RZN147 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-35630 |
LN147,RZN147 |
8 | ||
| 48252-35630 |
RZN147 |
8 | ||
| Common parts | ||||
| 94110-41000 | ||||
