RZN147-TRMDE3 (1997)
Toyota Hilux
Production
Aug 1997
-
Aug 2003
Engine
1RZE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9708-0407)MTM

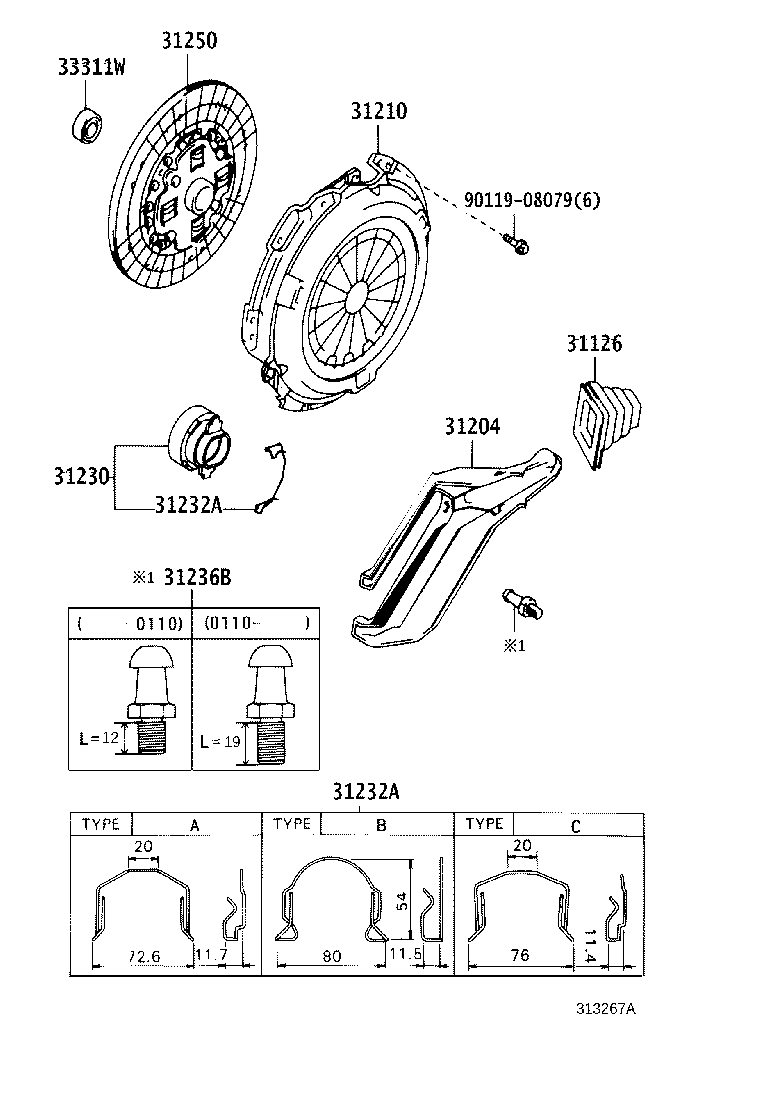

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-26020 |
RZN147,167..MTM |
1 | ||
| 31126-26020 |
RZN147..MTM |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-20071 |
RZN147..MTM |
1 | ||
| 31204-20071 |
RZN147,167..MTM |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-26110 |
RZN147,167..MTM |
1 | ||
| 31210-26110 |
RZN147..MTM |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-35091 |
RZN147..MTM |
1 | ||
| 31230-35091 |
RZN147..MTM |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-35020 |
LN147,RZN147,167..MTM TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 31232-35040 |
LN167,172,RZN147,167..MTM TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-35020 |
LN147,RZN147,167..MTM TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 31232-35040 |
LN167,172,RZN147,167..MTM TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-30060 |
LN147,167,172,RZN147..MTM |
1 | ||
| 31236-30060 |
LN147,167,172,RZN147,167..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-35380 |
RZN147,167..MTM |
1 | ||
| 31250-35381 |
RZN147,167..MTM |
1 | ||
| 31250-35381 |
RZN147..MTM |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12020 |
RZN147..MTM NACHI |
1 | ||
| 90363-12018 |
RZN147..MTM NSK |
1 | ||
| 90363-12002 |
LN147,167,172,RZN147..MTM |
1 | ||
| 90363-12002 |
LN147,167,172,RZN147,167..MTM |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
