RZN147-TRMDE (1997)

Toyota Hilux

Production Aug 1997 - Aug 2003
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )RZN147,152,16#,174

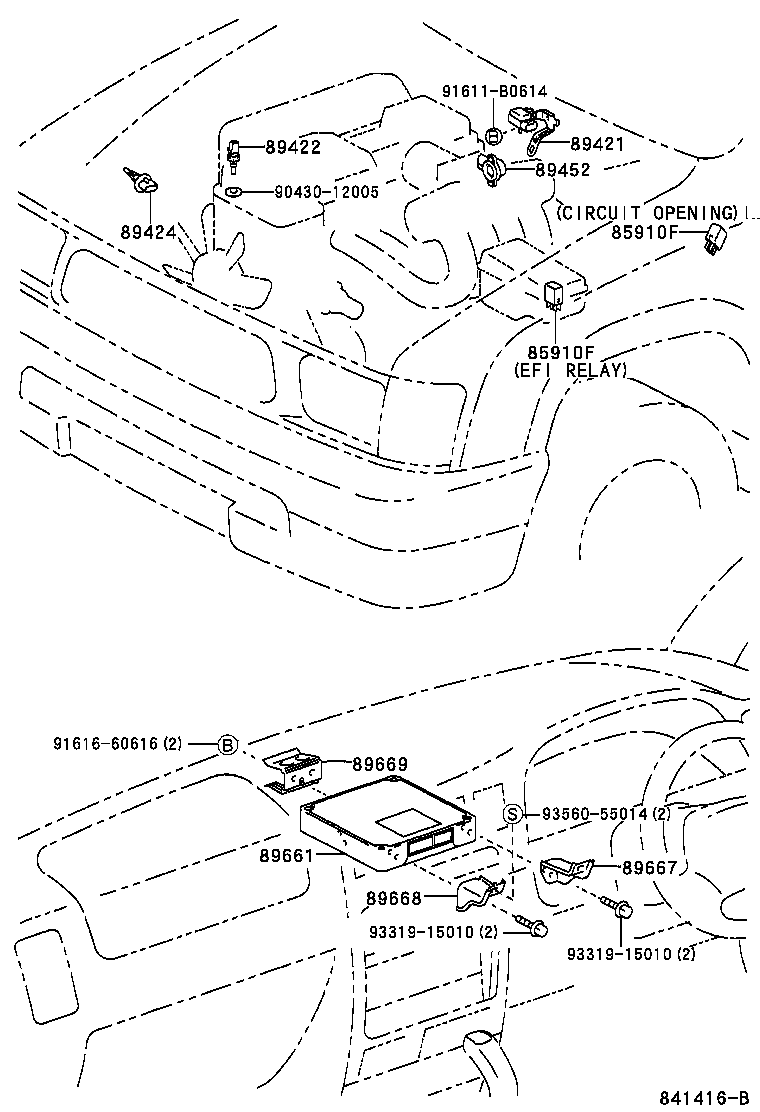

Click highlighted areas on diagram

diagram 85910F 85910F 89421 89422 89424 89452 89661 89667 89668 89669 9043012005 91611B0614 9161660616 9331915010 9331915010 9356055014
Part # Description Qty Price
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

RZN147,152,16#,174

 2
90987-02012

RZN147,152,169,174

 2
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012

RZN147,152,16#,174

 2
90987-02012

RZN147,152,169,174

 2
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-35100

RZN147,152,167

 1
89420-35100

RZN147,152

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

RZN147,152,167

 1
89422-20010

RZN147,152

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

RZN147,152

 1
89424-12010

RZN147,152,167

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22080

RZN147,152,167

 1
89452-22080

RZN147,152

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3D430

RZN147,152

DENSO

 1
89661-3D430

RZN147,152

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-35100

RZN147,152

 1
89667-35100

RZN147,152,167

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-35140

RZN147,152,16#,174

 1
89668-35140

RZN147,152,169,174

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35070

RZN147,152,16#,174

 1
89669-35070

RZN147,152,169,174

 1
Common parts
90430-12005
91611-B0614
91616-60616
93319-15010
93560-55014
