RZN147-TRMDE (1997)

Toyota Hilux

Production Aug 1997 - Aug 2003
Engine 1RZE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0108) ; (0108-0407)LN147,167,RZN147

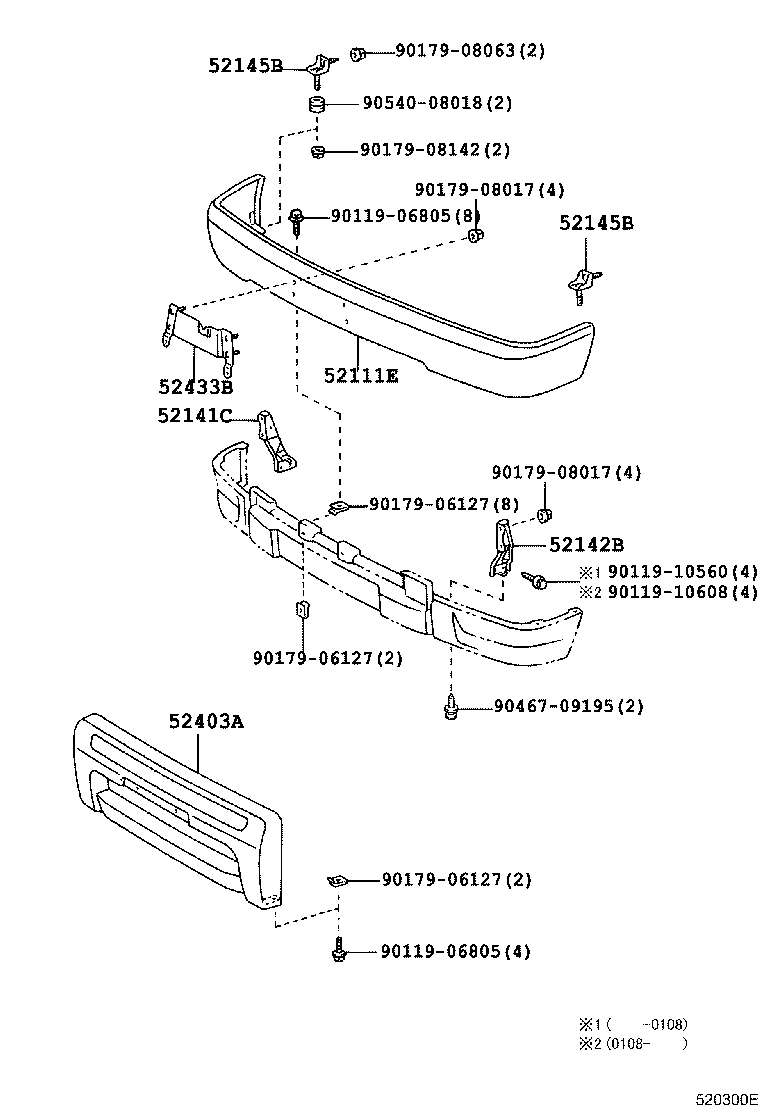

Click highlighted areas on diagram

diagram 52111E 52141C 52142B 52145B 52145B 52403A 52433B 9011906805 9011906805 9011910560 9011910608 9017906127 9017906127 9017906127 9017908017 9017908017 9017908063 9017908142 9046709195 9054008018
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-35440

LN147,RZN147..D

ｸﾞﾚ- ﾒﾀﾘﾂｸ

 1
52101-35440

RZN147

ｸﾞﾚ- ﾒﾀﾘﾂｸ

 1
52141C - ARM, FRONT BUMPER, RH
52141-35060

LN147,16#,17#,RZN147,152,16#,174

 1
52142B - ARM, FRONT BUMPER, LH
52142-35060

LN147,16#,17#,RZN147,152,16#,174

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

LN147,16#,17#,RZN147,152,16#,174

 2
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

LN147,16#,17#,RZN147,152,16#,174

 2
Common parts
90119-06805
90119-10560
90119-10608
90179-06127
90179-08017
90179-08063
90179-08142
90467-09195
90540-08018
